JAJSIF7K September   2021  – April 2024 TDA4VM , TDA4VM-Q1

PRODUCTION DATA

  1.   1
  2. 特長
  3. アプリケーション
  4. 概要
    1. 3.1 機能ブロック図
  5. Device Comparison
    1. 4.1 Related Products
  6. Terminal Configuration and Functions
    1. 5.1 Pin Diagram
    2. 5.2 Pin Attributes
    3. 5.3 Signal Descriptions
      1. 5.3.1  ADC
        1. 5.3.1.1 MCU Domain
      2. 5.3.2  DDRSS
        1. 5.3.2.1 MAIN Domain
      3. 5.3.3  GPIO
        1. 5.3.3.1 MAIN Domain
        2. 5.3.3.2 WKUP Domain
      4. 5.3.4  I2C
        1. 5.3.4.1 MAIN Domain
        2. 5.3.4.2 MCU Domain
        3. 5.3.4.3 WKUP Domain
      5. 5.3.5  I3C
        1. 5.3.5.1 MAIN Domain
        2. 5.3.5.2 MCU Domain
      6. 5.3.6  MCAN
        1. 5.3.6.1 MAIN Domain
        2. 5.3.6.2 MCU Domain
      7. 5.3.7  MCSPI
        1. 5.3.7.1 MAIN Domain
        2. 5.3.7.2 MCU Domain
      8. 5.3.8  UART
        1. 5.3.8.1 MAIN Domain
        2. 5.3.8.2 MCU Domain
        3. 5.3.8.3 WKUP Domain
      9. 5.3.9  MDIO
        1. 5.3.9.1 MCU Domain
      10. 5.3.10 CPSW2G
        1. 5.3.10.1 MCU Domain
      11. 5.3.11 CPSW9G
        1. 5.3.11.1 MAIN Domain
      12. 5.3.12 ECAP
        1. 5.3.12.1 MAIN Domain
      13. 5.3.13 EQEP
        1. 5.3.13.1 MAIN Domain
      14. 5.3.14 EHRPWM
        1. 5.3.14.1 MAIN Domain
      15. 5.3.15 USB
        1. 5.3.15.1 MAIN Domain
      16. 5.3.16 SERDES
        1. 5.3.16.1 MAIN Domain
      17. 5.3.17 OSPI
        1. 5.3.17.1 MCU Domain
      18. 5.3.18 Hyperbus
        1. 5.3.18.1 MCU Domain
      19. 5.3.19 GPMC
        1. 5.3.19.1 MAIN Domain
      20. 5.3.20 MMC
        1. 5.3.20.1 MAIN Domain
      21. 5.3.21 CPTS
        1. 5.3.21.1 MCU Domain
        2. 5.3.21.2 MAIN Domain
      22. 5.3.22 UFS
        1. 5.3.22.1 MAIN Domain
      23. 5.3.23 PRU_ICSSG [Currently Not Supported]
        1. 5.3.23.1 MAIN Domain
      24. 5.3.24 MCASP
        1. 5.3.24.1 MAIN Domain
      25. 5.3.25 DSS
        1. 5.3.25.1 MAIN Domain
      26. 5.3.26 DP
        1. 5.3.26.1 MAIN Domain
      27. 5.3.27 Camera Streaming Interface Receiver (CSI_RX_IF) Subsystem
        1. 5.3.27.1 MAIN Domain
      28. 5.3.28 DSI_TX
        1. 5.3.28.1 MAIN Domain
      29. 5.3.29 VPFE
        1. 5.3.29.1 MAIN Domain
      30. 5.3.30 DMTIMER
        1. 5.3.30.1 MAIN Domain
        2. 5.3.30.2 MCU Domain
      31. 5.3.31 Emulation and Debug
        1. 5.3.31.1 MAIN Domain
      32. 5.3.32 System and Miscellaneous
        1. 5.3.32.1 Boot Mode Configuration
          1. 5.3.32.1.1 MAIN Domain
          2. 5.3.32.1.2 MCU Domain
        2. 5.3.32.2 Clock
          1. 5.3.32.2.1 MAIN Domain
          2. 5.3.32.2.2 WKUP Domain
        3. 5.3.32.3 System
          1. 5.3.32.3.1 MAIN Domain
          2. 5.3.32.3.2 WKUP Domain
        4. 5.3.32.4 EFUSE
      33. 5.3.33 Power Supply
    4. 5.4 Pin Multiplexing
    5. 5.5 Pin Connectivity Requirements
  7. Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Power-On-Hour (POH) Limits
    4. 6.4 Recommended Operating Conditions
    5. 6.5 Operating Performance Points
    6. 6.6 Electrical Characteristics
    7. 6.7 VPP Specifications for One-Time Programmable (OTP) eFuses
      1. 6.7.1 Recommended Operating Conditions for OTP eFuse Programming
      2. 6.7.2 Hardware Requirements
      3. 6.7.3 Programming Sequence
      4. 6.7.4 Impact to Your Hardware Warranty
    8. 6.8 Thermal Resistance Characteristics
      1. 6.8.1 Thermal Resistance Characteristics for ALF Package
    9. 6.9 Timing and Switching Characteristics
      1. 6.9.1 Timing Parameters and Information
      2. 6.9.2 Power Supply Sequencing
        1. 6.9.2.1 Power Supply Slew Rate Requirement
        2. 6.9.2.2 Combined MCU and Main Domains Power-Up Sequencing
        3. 6.9.2.3 Combined MCU and Main Domains Power- Down Sequencing
        4. 6.9.2.4 Isolated MCU and Main Domains Power- Up Sequencing
        5. 6.9.2.5 Isolated MCU and Main Domains, Primary Power- Down Sequencing
        6. 6.9.2.6 Entry and Exit of MCU Only State
        7. 6.9.2.7 Entry and Exit of DDR Retention State
      3. 6.9.3 System Timing

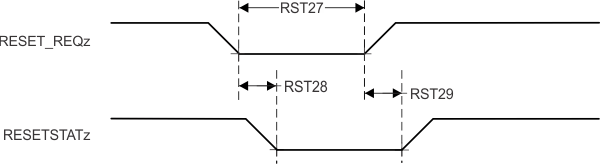

        1. 6.9.3.1 Reset Timing
        2. 6.9.3.2 Safety Signal Timing
        3. 6.9.3.3 Clock Timing
      4. 6.9.4 Clock Specifications
        1. 6.9.4.1 Input and Output Clocks / Oscillators
          1. 6.9.4.1.1 WKUP_OSC0 Internal Oscillator Clock Source
            1. 6.9.4.1.1.1 Load Capacitance
            2. 6.9.4.1.1.2 Shunt Capacitance
          2. 6.9.4.1.2 WKUP_OSC0 LVCMOS Digital Clock Source
          3. 6.9.4.1.3 Auxiliary OSC1 Internal Oscillator Clock Source
            1. 6.9.4.1.3.1 Load Capacitance
            2. 6.9.4.1.3.2 Shunt Capacitance
          4. 6.9.4.1.4 Auxiliary OSC1 LVCMOS Digital Clock Source
          5. 6.9.4.1.5 Auxiliary OSC1 Not Used
          6. 6.9.4.1.6 WKUP_LFOSC0 Internal Oscillator Clock Source
          7. 6.9.4.1.7 WKUP_LFOSC0 Not Used
        2. 6.9.4.2 Output Clocks
        3. 6.9.4.3 PLLs
        4. 6.9.4.4 Module and Peripheral Clocks Frequencies
      5. 6.9.5 Peripherals
        1. 6.9.5.1  ATL
          1. 6.9.5.1.1 ATL_PCLK Timing Requirements
          2. 6.9.5.1.2 ATL_AWS[x] Timing Requirements
          3. 6.9.5.1.3 ATL_BWS[x] Timing Requirements
          4. 6.9.5.1.4 ATCLK[x] Switching Characteristics
        2. 6.9.5.2  VPFE
        3. 6.9.5.3  CPSW2G
          1. 6.9.5.3.1 CPSW2G MDIO Interface Timings
          2. 6.9.5.3.2 CPSW2G RMII Timings
            1. 6.9.5.3.2.1 CPSW2G RMII[x]_REF_CLK Timing Requirements – RMII Mode
            2. 6.9.5.3.2.2 CPSW2G RMII[x]_RXD[1:0], RMII[x]_CRS_DV, and RMII[x]_RX_ER Timing Requirements – RMII Mode
            3. 6.9.5.3.2.3 CPSW2G RMII[x]_TXD[1:0], and RMII[x]_TX_EN Switching Characteristics – RMII Mode
          3. 6.9.5.3.3 CPSW2G RGMII Timings
            1. 6.9.5.3.3.1 RGMII[x]_RXC Timing Requirements – RGMII Mode
            2. 6.9.5.3.3.2 CPSW2G Timing Requirements for RGMII[x]_RD[3:0], and RGMII[x]_RCTL – RGMII Mode
            3. 6.9.5.3.3.3 CPSW2G RGMII[x]_TXC Switching Characteristics – RGMII Mode
            4. 6.9.5.3.3.4 RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics – RGMII Mode
        4. 6.9.5.4  CPSW9G
          1. 6.9.5.4.1 CPSW9G MDIO Interface Timings
          2. 6.9.5.4.2 CPSW9G RMII Timings
            1. 6.9.5.4.2.1 RMII[x]_REF_CLK Timing Requirements – RMII Mode
            2. 6.9.5.4.2.2 RMII[x]_RXD[1:0], RMII[x]_CRS_DV, and RMII[x]_RX_ER Timing Requirements – RMII Mode
            3. 6.9.5.4.2.3 RMII[x]_TXD[1:0], and RMII[x]_TXEN Switching Characteristics – RMII Mode
          3. 6.9.5.4.3 CPSW9G RGMII Timings
            1. 6.9.5.4.3.1 RGMII[x]_RXC Timing Requirements – RGMII Mode
            2. 6.9.5.4.3.2 RGMII[x]_RD[3:0] and RGMII[x]_RCTL Timing Requirements – RGMII Mode
            3. 6.9.5.4.3.3 RGMII[x]_TXC Switching Characteristics – RGMII Mode
            4. 6.9.5.4.3.4 RGMII[x]_TD[3:0] and RGMII[x]_TX_CTL Switching Characteristics – RGMII Mode
        5. 6.9.5.5  CSI-2
        6. 6.9.5.6  DDRSS
        7. 6.9.5.7  DSS
        8. 6.9.5.8  eCAP
          1. 6.9.5.8.1 Timing Requirements for eCAP
          2. 6.9.5.8.2 Switching Characteristics for eCAP
        9. 6.9.5.9  EPWM
          1. 6.9.5.9.1 Switching Characteristics for eHRPWM
          2. 6.9.5.9.2 Timing Requirements for eHRPWM
        10. 6.9.5.10 eQEP
          1. 6.9.5.10.1 Timing Requirements for eQEP
          2. 6.9.5.10.2 Switching Characteristics for eQEP
        11. 6.9.5.11 GPIO
          1. 6.9.5.11.1 GPIO Timing Requirements
          2. 6.9.5.11.2 GPIO Switching Characteristics
        12. 6.9.5.12 GPMC
          1. 6.9.5.12.1 GPMC and NOR Flash — Synchronous Mode
            1. 6.9.5.12.1.1 GPMC and NOR Flash Timing Requirements — Synchronous Mode
            2. 6.9.5.12.1.2 GPMC and NOR Flash Switching Characteristics – Synchronous Mode
          2. 6.9.5.12.2 GPMC and NOR Flash — Asynchronous Mode
            1. 6.9.5.12.2.1 GPMC and NOR Flash Timing Requirements – Asynchronous Mode
            2. 6.9.5.12.2.2 GPMC and NOR Flash Switching Characteristics – Asynchronous Mode
          3. 6.9.5.12.3 GPMC and NAND Flash — Asynchronous Mode
            1. 6.9.5.12.3.1 GPMC and NAND Flash Timing Requirements – Asynchronous Mode
            2. 6.9.5.12.3.2 GPMC and NAND Flash Switching Characteristics – Asynchronous Mode
          4. 6.9.5.12.4 GPMC0 IOSET
        13. 6.9.5.13 HyperBus
          1. 6.9.5.13.1 Timing Requirements for HyperBus
          2. 6.9.5.13.2 HyperBus 166 MHz Switching Characteristics
          3. 6.9.5.13.3 HyperBus 100 MHz Switching Characteristics
        14. 6.9.5.14 I2C
        15. 6.9.5.15 I3C
        16. 6.9.5.16 MCAN
        17. 6.9.5.17 MCASP
        18. 6.9.5.18 MCSPI
          1. 6.9.5.18.1 MCSPI — Master Mode
          2. 6.9.5.18.2 MCSPI — Slave Mode
        19. 6.9.5.19 MMCSD
          1. 6.9.5.19.1 MMC0 - eMMC Interface
            1. 6.9.5.19.1.1 Legacy SDR Mode
            2. 6.9.5.19.1.2 High Speed SDR Mode
            3. 6.9.5.19.1.3 High Speed DDR Mode
            4. 6.9.5.19.1.4 HS200 Mode
          2. 6.9.5.19.2 MMC1/2 - SD/SDIO Interface
            1. 6.9.5.19.2.1 Default Speed Mode
            2. 6.9.5.19.2.2 High Speed Mode
            3. 6.9.5.19.2.3 UHS–I SDR12 Mode
            4. 6.9.5.19.2.4 UHS–I SDR25 Mode
            5. 6.9.5.19.2.5 UHS–I SDR50 Mode
            6. 6.9.5.19.2.6 UHS–I DDR50 Mode
            7. 6.9.5.19.2.7 UHS–I SDR104 Mode
        20. 6.9.5.20 CPTS
          1. 6.9.5.20.1 CPTS Timing Requirements
          2. 6.9.5.20.2 CPTS Switching Characteristics
        21. 6.9.5.21 OSPI
          1. 6.9.5.21.1 OSPI PHY Mode
            1. 6.9.5.21.1.1 OSPI With Data Training
              1. 6.9.5.21.1.1.1 OSPI Switching Characteristics – Data Training
            2. 6.9.5.21.1.2 OSPI Without Data Training
              1. 6.9.5.21.1.2.1 OSPI Timing Requirements – SDR Mode
              2. 6.9.5.21.1.2.2 OSPI Switching Characteristics – SDR Mode
              3. 6.9.5.21.1.2.3 OSPI Timing Requirements – DDR Mode
              4. 6.9.5.21.1.2.4 OSPI Switching Characteristics – DDR Mode
          2. 6.9.5.21.2 OSPI Tap Mode
            1. 6.9.5.21.2.1 OSPI Tap SDR Timing
            2. 6.9.5.21.2.2 OSPI Tap DDR Timing
        22. 6.9.5.22 PCIE
        23. 6.9.5.23 Timers
          1. 6.9.5.23.1 Timing Requirements for Timers
          2. 6.9.5.23.2 Switching Characteristics for Timers
        24. 6.9.5.24 UART
          1. 6.9.5.24.1 Timing Requirements for UART
          2. 6.9.5.24.2 UART Switching Characteristics
        25. 6.9.5.25 USB
      6. 6.9.6 Emulation and Debug
        1. 6.9.6.1 Trace
        2. 6.9.6.2 JTAG
          1. 6.9.6.2.1 JTAG Electrical Data and Timing
            1. 6.9.6.2.1.1 JTAG Timing Requirements
            2. 6.9.6.2.1.2 JTAG Switching Characteristics
  8. Detailed Description
    1. 7.1 Overview
    2. 7.2 Processor Subsystems
      1. 7.2.1 Arm Cortex-A72
      2. 7.2.2 Arm Cortex-R5F
      3. 7.2.3 DSP C71x
      4. 7.2.4 DSP C66x
    3. 7.3 Accelerators and Coprocessors
      1. 7.3.1 GPU
      2. 7.3.2 VPAC
      3. 7.3.3 DMPAC
      4. 7.3.4 D5520MP2
      5. 7.3.5 VXE384MP2
    4. 7.4 Other Subsystems
      1. 7.4.1 MSMC
      2. 7.4.2 NAVSS
        1. 7.4.2.1 NAVSS0
        2. 7.4.2.2 MCU_NAVSS
      3. 7.4.3 PDMA Controller
      4. 7.4.4 Power Supply
      5. 7.4.5 Peripherals
        1. 7.4.5.1  ADC
        2. 7.4.5.2  ATL
        3. 7.4.5.3  CSI
          1. 7.4.5.3.1 Camera Streaming Interface Receiver (CSI_RX_IF) and MIPI DPHY Receiver (DPHY_RX)
          2. 7.4.5.3.2 Camera Streaming Interface Transmitter (CSI_TX_IF)
        4. 7.4.5.4  CPSW2G
        5. 7.4.5.5  CPSW9G
        6. 7.4.5.6  DCC
        7. 7.4.5.7  DDRSS
        8. 7.4.5.8  DSS
          1. 7.4.5.8.1 DSI
          2. 7.4.5.8.2 eDP
        9. 7.4.5.9  VPFE
        10. 7.4.5.10 eCAP
        11. 7.4.5.11 EPWM
        12. 7.4.5.12 ELM
        13. 7.4.5.13 ESM
        14. 7.4.5.14 eQEP
        15. 7.4.5.15 GPIO
        16. 7.4.5.16 GPMC
        17. 7.4.5.17 Hyperbus
        18. 7.4.5.18 I2C
        19. 7.4.5.19 I3C
        20. 7.4.5.20 MCAN
        21. 7.4.5.21 MCASP
        22. 7.4.5.22 MCRC Controller
        23. 7.4.5.23 MCSPI
        24. 7.4.5.24 MMC/SD
        25. 7.4.5.25 OSPI
        26. 7.4.5.26 PCIE
        27. 7.4.5.27 SerDes
        28. 7.4.5.28 WWDT
        29. 7.4.5.29 Timers
        30. 7.4.5.30 UART
        31. 7.4.5.31 USB
        32. 7.4.5.32 UFS
  9. Applications and Implementation
    1. 8.1 Power Supply Mapping
    2. 8.2 Device Connection and Layout Fundamentals
      1. 8.2.1 Power Supply Decoupling and Bulk Capacitors
        1. 8.2.1.1 Power Distribution Network Implementation Guidance
      2. 8.2.2 External Oscillator
      3. 8.2.3 JTAG and EMU
      4. 8.2.4 Reset
      5. 8.2.5 Unused Pins
      6. 8.2.6 Hardware Design Guide for JacintoTM 7 Devices
    3. 8.3 Peripheral- and Interface-Specific Design Information
      1. 8.3.1 LPDDR4 Board Design and Layout Guidelines
      2. 8.3.2 OSPI and QSPI Board Design and Layout Guidelines
        1. 8.3.2.1 No Loopback and Internal Pad Loopback
        2. 8.3.2.2 External Board Loopback
        3. 8.3.2.3 DQS (only available in Octal Flash devices)
      3. 8.3.3 SERDES REFCLK Design Guidelines
      4. 8.3.4 USB VBUS Design Guidelines
      5. 8.3.5 System Power Supply Monitor Design Guidelines
      6. 8.3.6 High Speed Differential Signal Routing Guidance
      7. 8.3.7 Thermal Solution Guidance
  10. Device and Documentation Support
    1. 9.1 Device Nomenclature
      1. 9.1.1 Standard Package Symbolization
      2. 9.1.2 Device Naming Convention
    2. 9.2 Tools and Software
    3. 9.3 Documentation Support
    4. 9.4 サポート・リソース
    5. 9.5 Trademarks
    6. 9.6 静電気放電に関する注意事項
    7. 9.7 用語集
  11. 10Revision History
  12. 11Mechanical, Packaging, and Orderable Information
    1. 11.1 Packaging Information

パッケージ・オプション

デバイスごとのパッケージ図は、PDF版データシートをご参照ください。

メカニカル・データ(パッケージ|ピン)
  • ALF|827
サーマルパッド・メカニカル・データ
発注情報

Reset Timing

Tables and figures provided in this section define timing requirements and switching characteristics for reset related signals.

Table 6-14 MCU_PORz Timing Requirements see Figure 6-9
NO.   MIN TYP MAX UNIT
RST1 th(MCUD_SUPPLIES_VALID - MCU_PORz) Hold time, MCU_PORz active (low) at Power-up after all MCU DOMAIN supplies valid (using external crystal) N + 1200(2) 9500000 ns
RST2 Hold time, MCU_PORz active (low) at Power-up after all MCU DOMAIN supplies(1) valid and external clock stable (using external LVCMOS oscillator) 1200 ns
RST3 tw(MCU_PORzL) Pulse Width minimum, MCU_PORz low after Power-up (without removal of Power or system reference clock MCU_OSC0_XI/XO) 1200 ns
For definition of the MCU DOMAIN supplies, see the Combined MCU and Main Domains Power-Up sequence.
N = oscillator start-up time
TDA4VM-Q1 TDA4VM MCU_PORz Timing Requirements Figure 6-9 MCU_PORz Timing Requirements
Table 6-15 PORz Timing Requirements see Figure 6-10
NO. MIN MAX UNIT
RST4 th(MAIND_SUPPLIES_VALID - PORz) Hold time, PORz active (low) at Power-up after all MAIN DOMAIN supplies1 valid 1200 ns
RST5 tw(PORzL) Pulse Width minimum, PORz low after Power-up 1200 ns
  1. For definition of the MAIN DOMAIN supplies, see the Combined MCU and Main Domains Power-Up sequence.
TDA4VM-Q1 TDA4VM PORz Timing Requirements Figure 6-10 PORz Timing Requirements
Table 6-16 MCU_PORz initiates; MCU_PORz_OUT, PORz_OUT, MCU_RESETSTATz, and RESETSTATz Switching Characteristics see Figure 6-11
NO. PARAMETER MODE MIN MAX UNIT
RST6 td(MCU_PORzL-MCU_PORz_OUTL) Delay time, MCU_PORz active (low) to MCU_PORz_OUT active (low) 0 ns
RST7 td(MCU_PORzH-MCU_PORz_OUTH) Delay time, MCU_PORz inactive (high) to MCU_PORz_OUT inactive (high) 0 ns
RST8 td(MCU_PORzL-PORz_OUTL) Delay time, MCU_PORz active (low) to PORz_OUT active (low) 0 ns
RST9 td(MCU_PORzH-PORz_OUTH) Delay time, MCU_PORz inactive (high) to PORz_OUT inactive (high) 1500 ns
RST10 td(MCU_PORzL-MCU_RESETSTATzL) Delay time, MCU_PORz active (low) to MCU_RESETSTATz active (low) 0 ns
RST11 td(MCU_PORzH-MCU_RESETSTATzH) Delay time, MCU_PORz inactive (high) to MCU_RESETSTATz inactive (high) POST
bypass
12000*S(1) ns
RST12 td(MCU_PORzL-RESETSTATzL) Delay time, MCU_PORz active (low) to RESETSTATz active (low) 0 ns
RST13 td(MCU_PORzH-RESETSTATzH) Delay time, MCU_PORz inactive (high) to RESETSTATz inactive (high) 14500*S(1) ns
RST14 tw(MCU_PORz_OUTL) Pulse width minimum, MCU_PORz_OUT active (low) 1200 ns
RST15 tw(PORz_OUTL) Pulse Width Minimum PORz_OUT low 2550 ns
RST16 tw(MCU_RESETSTATzL) Pulse Width Minimum MCU_RESETSTATz low 3900*S(1) ns
RST17 tw(RESETSTATzL) Pulse Width Minimum RESETSTATz low 2650*S(1) ns
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM MCU_PORz initiates; MCU_PORz_OUT,
          PORz_OUT, MCU_RESETSTATz, and RESETSTATz Switching Characteristics Figure 6-11 MCU_PORz initiates; MCU_PORz_OUT, PORz_OUT, MCU_RESETSTATz, and RESETSTATz Switching Characteristics
Table 6-17 PORz Initiates; PORz_OUT and RESETSTATz Switching Characteristics see Figure 6-12
NO. PARAMETER MODE MIN MAX UNIT
RST18 td(PORzL-PORz_OUTL) Delay time, PORz active (low) toPORz_OUT active (low) software control of
POR_RST_ISO_DONE_Z
T(1)
CTRLMMR_WKUP_POR_RST
_CTRL[0].POR_RST_ISO_
DONE_Z = 0
0 ns
RST19 td(PORzH-PORz_OUTH) Delay time, PORz active (high) toPORz_OUT active (high) 1300   ns
RST20 td(PORzL-RESETSTATzL) Delay time, PORz active (low) to RESETSTATz active (low) T(1)
CTRLMMR_WKUP_POR_RST
_CTRL[0].POR_RST_ISO_
DONE_Z = 0
0 ns
RST21 td(PORzH-RESETSTATzH) Delay time, PORz active (high) to RESETSTATz active (high) 14500*S(2)   ns
T = Reset Isolation Time (Software Dependent).
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM PORz initiates; PORz_OUT and
          RESETSTATz Switching Characteristics Figure 6-12 PORz initiates; PORz_OUT and RESETSTATz Switching Characteristics
Table 6-18 MCU_RESETz Timing Requirements see Figure 6-13
NO. MIN MAX UNIT
RST22 tw(MCU_RESETzL)(1) Pulse Width minimum, MCU_RESETz active (low) 1200 ns
Timing for MCU_RESETz is valid only after all supplies are valid and MCU_PORz has been asserted for the specified time.
Table 6-19 MCU_RESETz initiates; MCU_RESETSTATz, and RESETSTATz Switching Characteristics see Figure 6-13
NO. PARAMETER MIN MAX UNIT
RST23 td(MCU_RESETzL-MCU_RESETSTATzL) Delay time, MCU_RESETz active (low) to MCU_RESETSTATz active (low) 800   ns
RST24 td(MCU_RESETzH-MCU_RESETSTATzH) Delay time, MCU_RESETz inactive (high) to MCU_RESETSTATz inactive (high) 3900*S(1)   ns
RST25 td(MCU_RESETzL-RESETSTATzL) Delay time, MCU_RESETz active (low) to RESETSTATz active (low) 800   ns
RST26 td(MCU_RESETzH-RESETSTATzH) Delay time, MCU_RESETz inactive (high) to RESETSTATz inactive (high) 3900*S(1)   ns
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM MCU_RESETz initiates; MCU_RESETSTATz,
          and RESETSTATz Timing Requirements and Switching Characteristics Figure 6-13 MCU_RESETz initiates; MCU_RESETSTATz, and RESETSTATz Timing Requirements and Switching Characteristics
Table 6-20 RESET_REQz Timing Requirements see Figure 6-14
NO. MIN MAX UNIT
RST27 tw(RESET_REQzL)(1) Pulse Width minimum, RESET_REQz active (low) 1200 ns
Timing for RESET_REQz is valid only after all supplies are valid and MCU_PORz has been asserted for the specified time.
Table 6-21 RESET_REQz initiates; RESETSTATz Switching Characteristics see Figure 6-14
NO. PARAMETER MODE MIN MAX UNIT
RST28 td(RESET_REQzL-RESETSTATzL) Delay time, RESET_REQz active (low) to RESETSTATz active (low) software control of
SOC_WARMRST_ISO_DONE_Z
T(1)
CTRLMMR_WKUP_MAIN_WARM
_RST_CTRL[0].SOC_
WARMRST_ISO_DONE_Z = 0
740 ns
RST29 td(RESET_REQzH-RESETSTATzH) Delay time, RESET_REQz inactive (high) to RESETSTATz inactive (high) 2650*S(2)   ns
T = Reset Isolation Time (Software Dependent).
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM RESET_REQz initiates; RESETSTATz
          Timing Requirements and Switching Characteristics Figure 6-14 RESET_REQz initiates; RESETSTATz Timing Requirements and Switching Characteristics
Table 6-22 EMUx Timing Requirements see Figure 6-15
NO.   MIN MAX UNIT
RST30 tsu(EMUx-MCU_PORz) Setup time, EMU[1:0] before MCU_PORz inactive (high) 3*S(1) ns
RST31 th(MCU_PORz - EMUx) Hold time, EMU[1:0] after MCU_PORz inactive (high) 10 ns
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM EMUx Timing Requirements Figure 6-15 EMUx Timing Requirements
Table 6-23 MCU_BOOTMODE Timing Requirements see Figure 6-16
NO. MIN MAX UNIT
RST32 tsu(MCU_BOOTMODE-MCU_PORz_OUT) Setup time, MCU_BOOTMODE[09:00] before MCU_PORz_OUT high 3*S(1) ns
RST33 th(MCU_PORz_OUT - MCU_BOOTMODE) Hold time, MCU_BOOTMODE[09:00] after MCU_ PORz_OUT high 0 ns
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM MCU_BOOTMODE
          Timing Requirements Figure 6-16 MCU_BOOTMODE Timing Requirements
Table 6-24 BOOTMODE Timing Requirements see Figure 6-17
NO.   MIN MAX UNIT
RST34 tsu(BOOTMODE-PORz_OUT) Setup time, BOOTMODE[7:0] before PORz_OUT high 3*S(1)   ns
RST35 th(PORz_OUT - BOOTMODE) Hold time, BOOTMODE[7:0] after PORz_OUT high 0   ns
S = MCU_OSC0_XI/XO clock period.
TDA4VM-Q1 TDA4VM BOOTMODE Timing
          Requirements Figure 6-17 BOOTMODE Timing Requirements
