7.3.3 ADC Transfer Function

The ADC output is in straight binary format. Equation 1 computes the ADC resolution:

Equation 1. 1 LSB = VREF / 2N

where

  • VREF = AVDD
  • N = 12

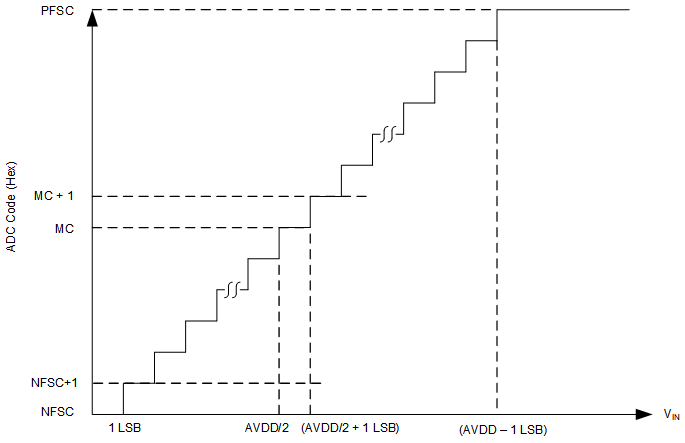

Figure 23 and Table 1 detail the transfer characteristics for the device.

TLA2518 transfer_function.gifFigure 23. Ideal Transfer Characteristics

Table 1. Transfer Characteristics

INPUT VOLTAGE FOR SINGLE-ENDED INPUT CODE DESCRIPTION IDEAL OUTPUT CODE
≤1 LSB NFSC Negative full-scale code 000
1 LSB to 2 LSBs NFSC + 1 — 001
(AVDD / 2) to (AVDD / 2) + 1 LSB MC Mid code 800
(AVDD / 2) + 1 LSB to (AVDD / 2) + 2 LSB MC + 1 — 801
≥ AVDD – 1 LSB PFSC Positive full-scale code FFF
