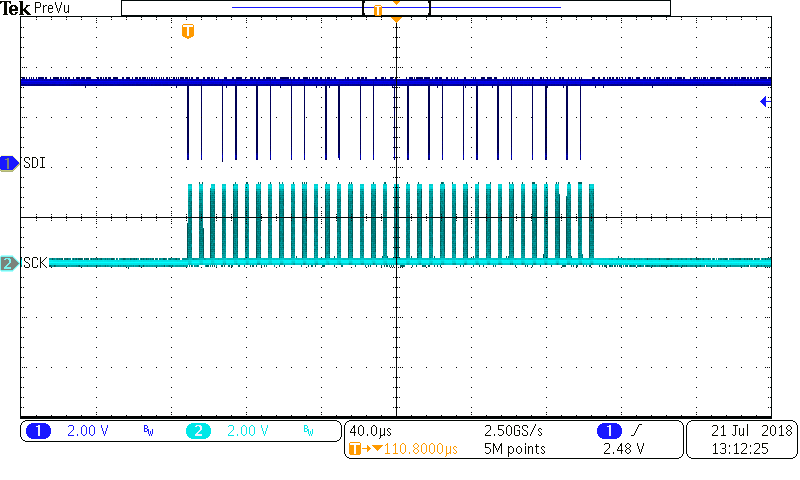

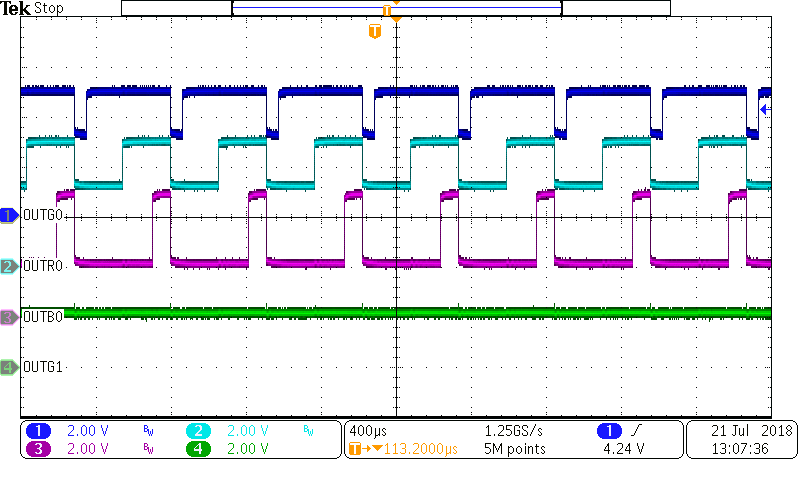

Below are two test waveforms. Figure 33 shows different PWM duty cycles for different output channels, which can realize a local dimming feature. Figure 34 shows a data-write waveform typical for each write of M × 288 bits of data into the serial interface.
