9.1.2 Monitoring VDD

Many applications monitor the same rail that is powering VDD. In these applications the resistor divider is simply connected to the VDD rail.

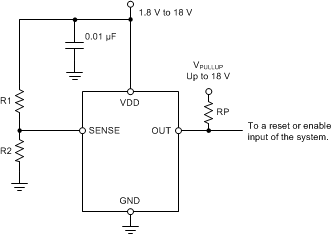

GUID-2BAD1061-0ADD-422E-B9EE-E6F65DDA0579-low.gifFigure 9-2 Monitoring the Same Voltage as VDD
