7.6 Typical Characteristics

At VS = 3.3 V and TA = 25°C, unless otherwise noted.
TMP303 D001_SBOS486.gif

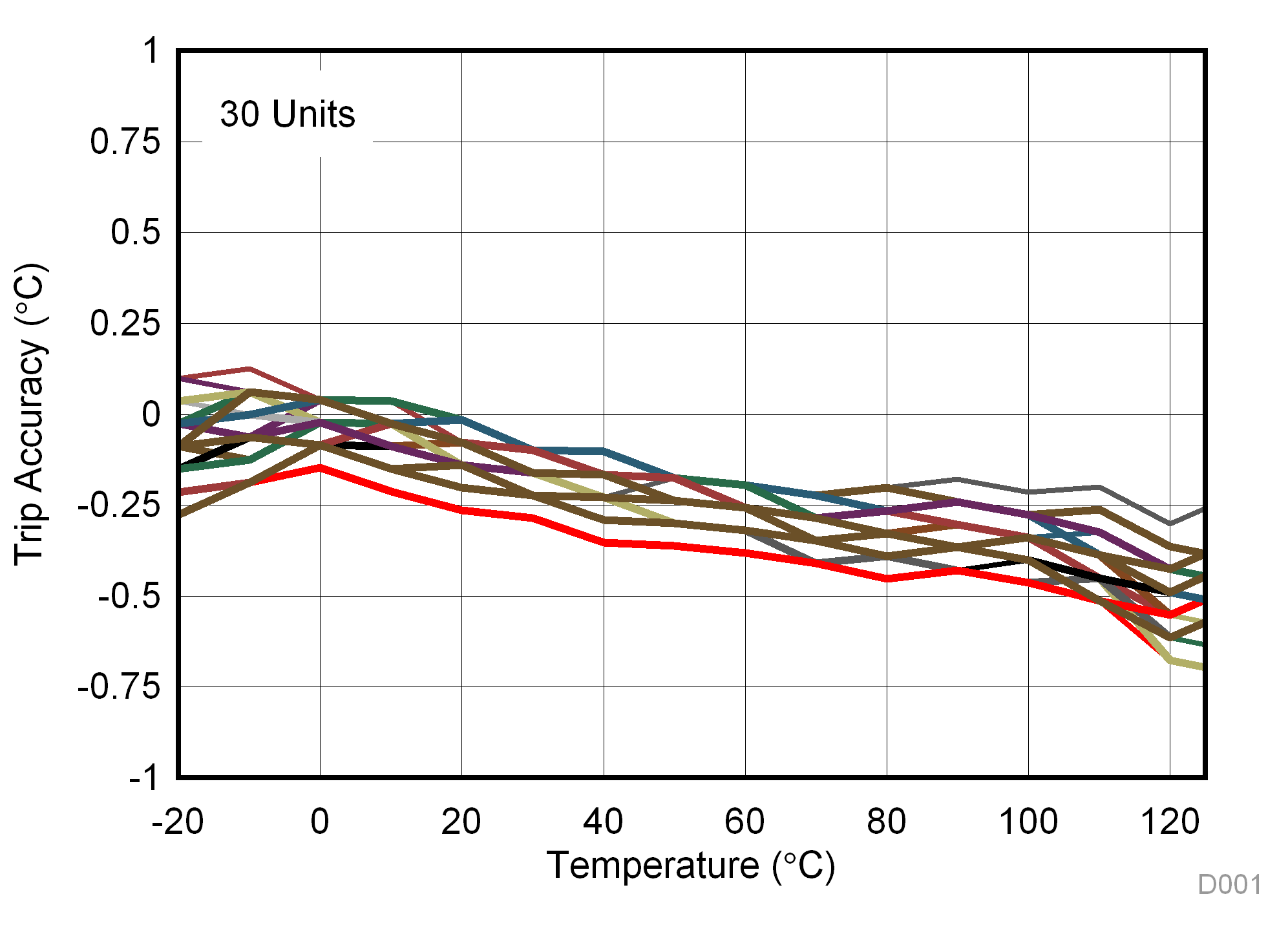

Figure 1. Trip Accuracy Error vs Temperature
TMP303 tc_temp_step_resp_time_bos486.gif
Figure 3. Temperature Step Response in Perfluorinated Fluid at 100°C vs Time
TMP303 D003_SBOS486.gif
Figure 5. Trip Threshold Accuracy at -20°C to 125°C
TMP303 tc_pu_trip_pd_tr_bos486.gif
Figure 7. Power-Up, Trip, and Power-Down Response
TMP303 tc_output_log_hi_temp_bos486.gif
Figure 9. Output Logic Level High vs Temperature
TMP303 tc_iq_temp_bos486.gif
Figure 2. Quiescent Current vs Temperature
TMP303 tc_therm_step_resp_air_time_bos486.gif
Figure 4. Thermal Step Response in Air at 100°C vs Time
TMP303 tc_pu_pd_tr_bos486.gif
Figure 6. Power-Up and Power-Down Transient Response
TMP303 tc_output_log_low_temp_bos486.gif
Figure 8. Output Logic Level Low vs Temperature
