6.1.10 Bandwidth

Bandwidth is defined as the range of frequencies that are attenuated by less than 3 dB when the input is applied to the source pin (Sx) of an on-channel, and the output is measured at the drain pin (D) of the device. Figure 6-10 shows the setup used to measure bandwidth.

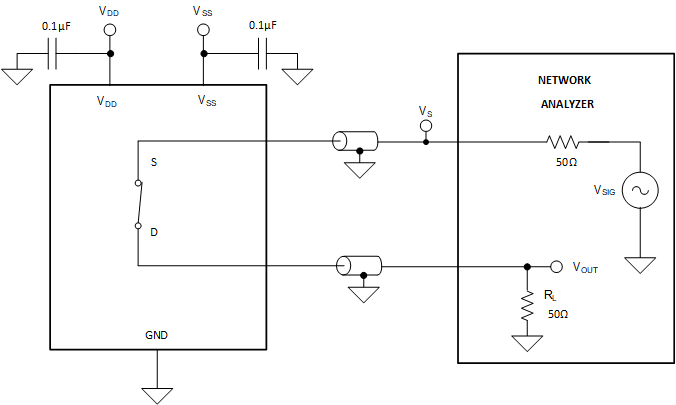

GUID-83CBF120-6F63-4017-9EF8-D1BA416D7906-low.gifFigure 6-10 Bandwidth Measurement Setup
