7.7 Off Isolation

Off isolation is defined as the ratio of the signal at the drain pin (D) of the device when a signal is applied to the source pin (Sx) of an off-channel. Figure 13 shows the setup used to measure, and the equation used to calculate off isolation.

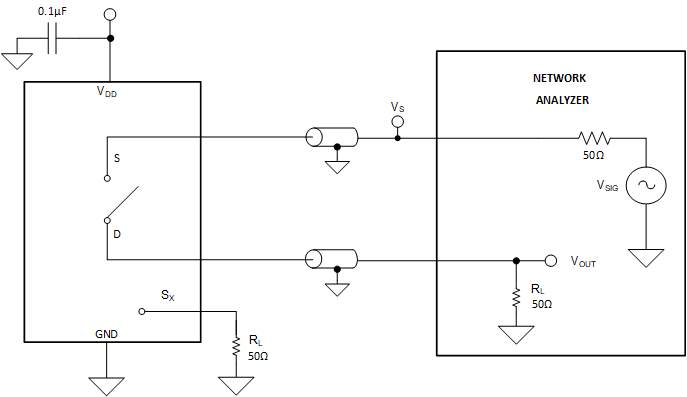

TMUX1247 Off_Isolation.gifFigure 13. Off Isolation Measurement Setup
Equation 1. TMUX1247 q_off_iso_sbas758.gif
