9.2.1.3 Application Curve

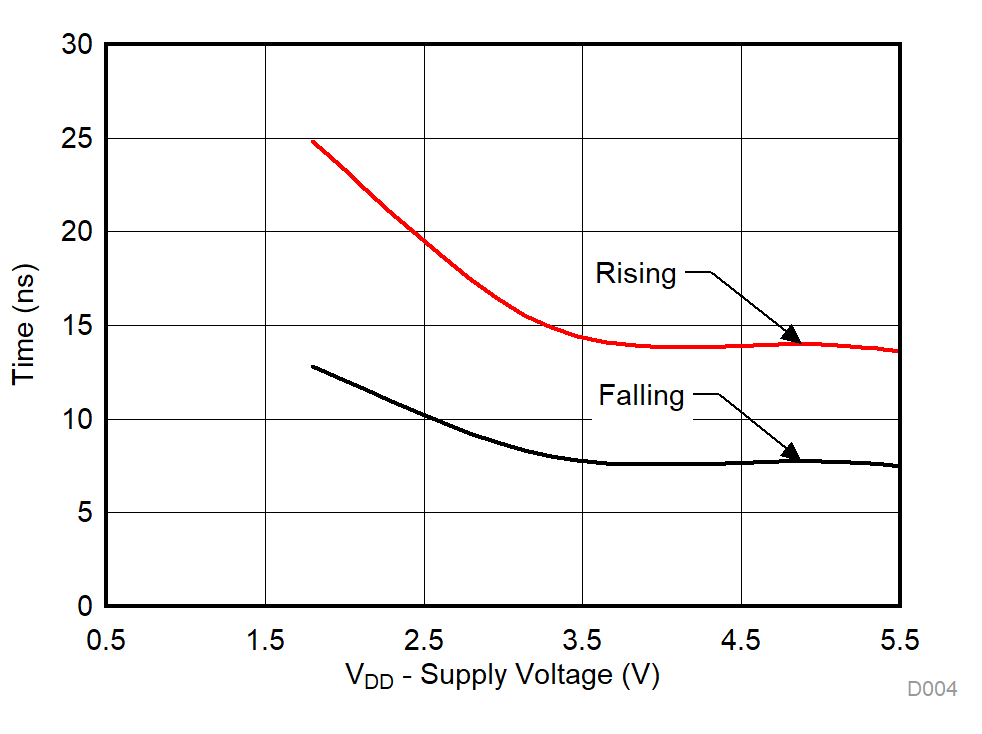

A key parameter for this application is the transition time of the device. Faster transition time allows the system to toggle between input sources at a faster rate and allows the output to settle to the final value. The TMUX1247 has a transition time that varies with supply voltage and is shown in Figure 18

TMUX1247 D004_SCDS409.gif
TA = 25°C
Figure 18. Ttransition vs Supply Voltage
