10.2.5 Application Curve: TPS3840EVM

These application curves are taken with the TPS3840EVM. Please see the TPS3840EVM User Guide for more information.

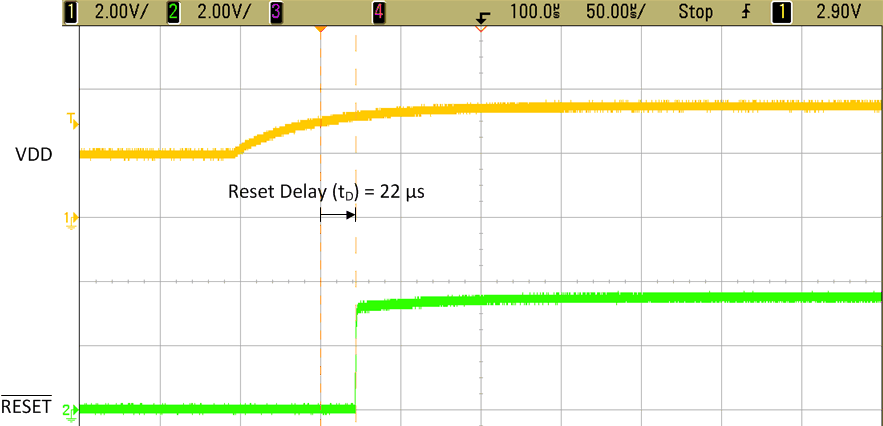

TPS3840 TPS3840_reset_delay_no_cap.gif
Figure 53. TPS3840EVM RESET Time Delay (tD) with No Capacitor
TPS3840 TPS3840_reset_delay_cap_1uF.gif
Figure 55. TPS3840EVM RESET Time Delay (tD) with 1-µF Capacitor
TPS3840 TPS3840_reset_delay_cap_0p01uF.gif
Figure 54. TPS3840EVM RESET Time Delay (tD) with 0.01-µF Capacitor
