12.2 Layout Example

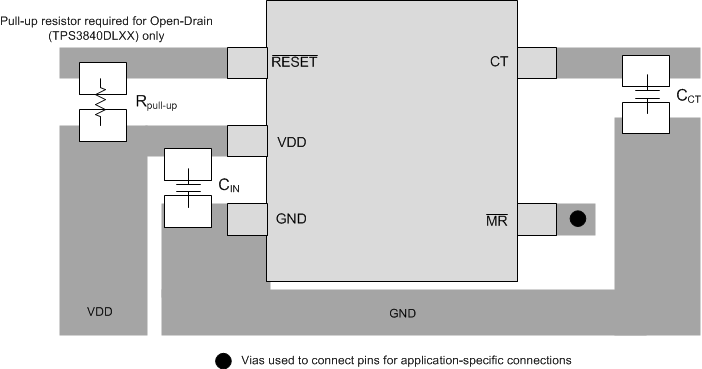

The layout example in shows how the TPS3840 is laid out on a printed circuit board (PCB) with a user-defined delay.

TPS3840 TPS3840_layout.gifFigure 56. TPS3840 Recommended Layout
