8.2.4 Application Curves

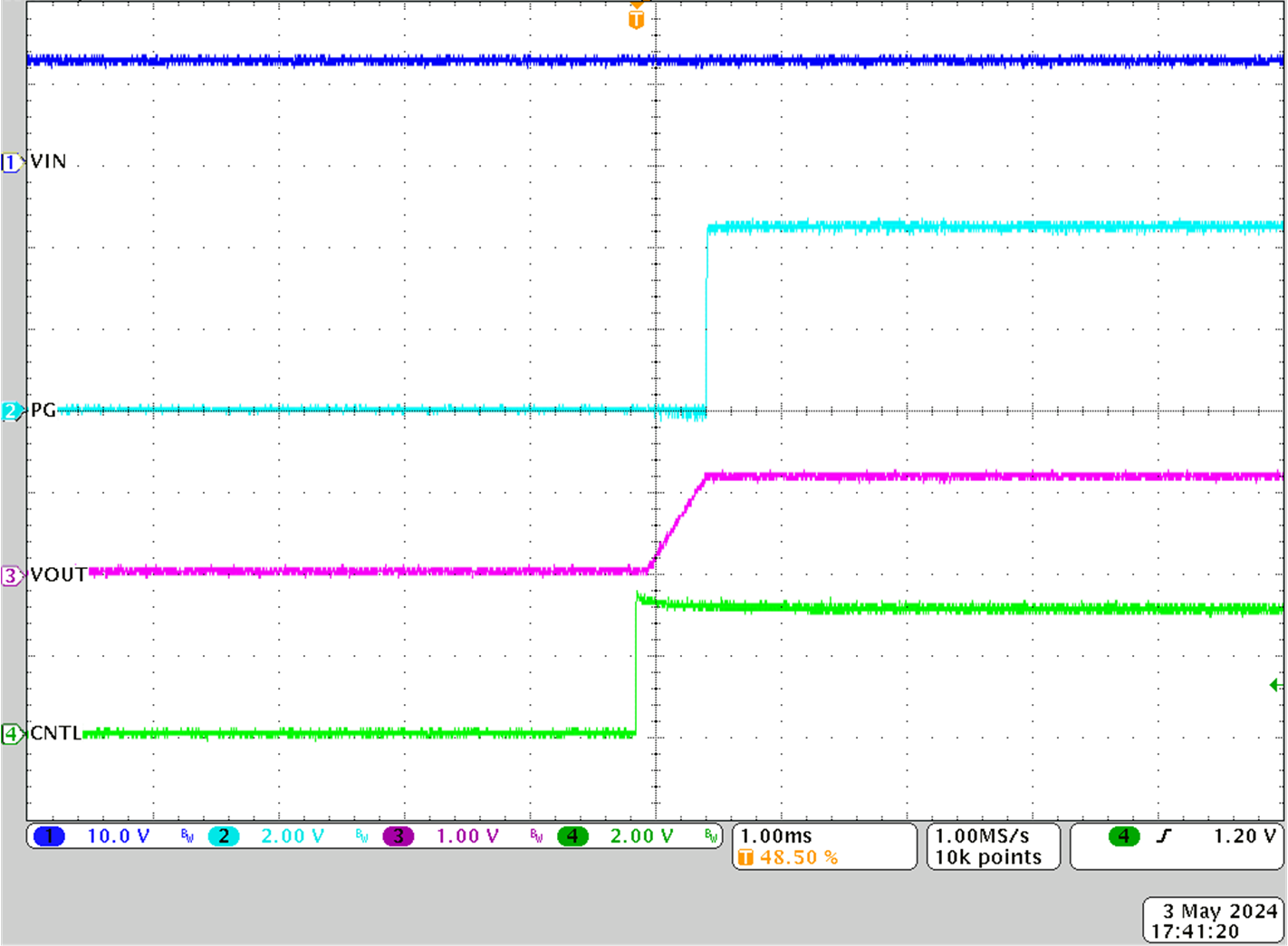

TPS546B26 CNTL Start-Up Waveform
CH1 = VIN CH3 = VOUT
CH2 = PG CH4 = CNTL
Figure 8-2 CNTL Start-Up Waveform

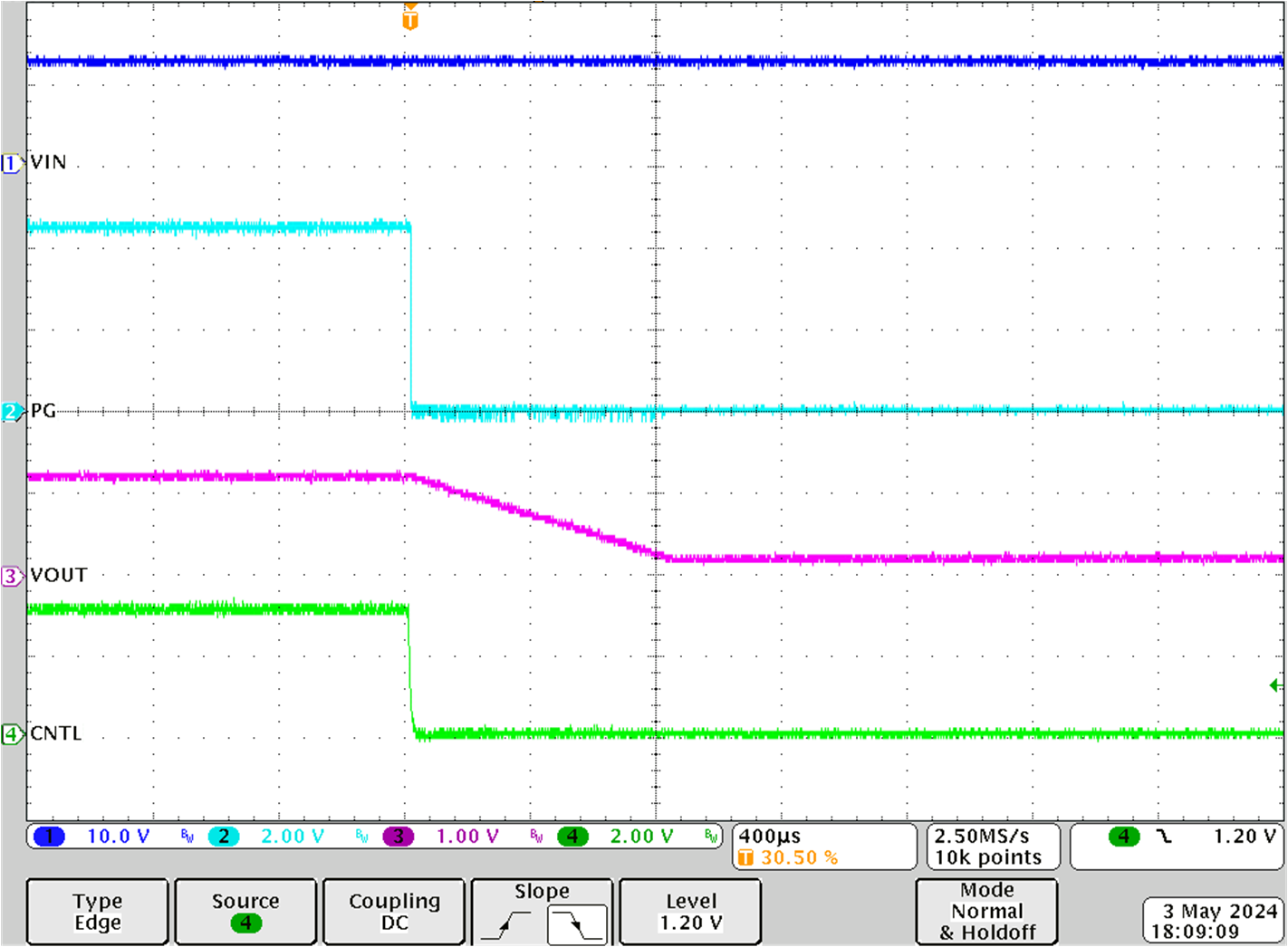

TPS546B26 CNTL Shutdown Waveform, 1.2 Vout, 800kHz FCCM
CH1 = VIN CH3 = VOUT
CH2 = PG CH4 = CNTL
Figure 8-4 CNTL Shutdown Waveform, 1.2 Vout, 800kHz FCCM
TPS546B26 Output Voltage Ripple, 1.2V Vout, 800kHz FCCM, 25A LoadFigure 8-6 Output Voltage Ripple, 1.2V Vout, 800kHz FCCM, 25A Load

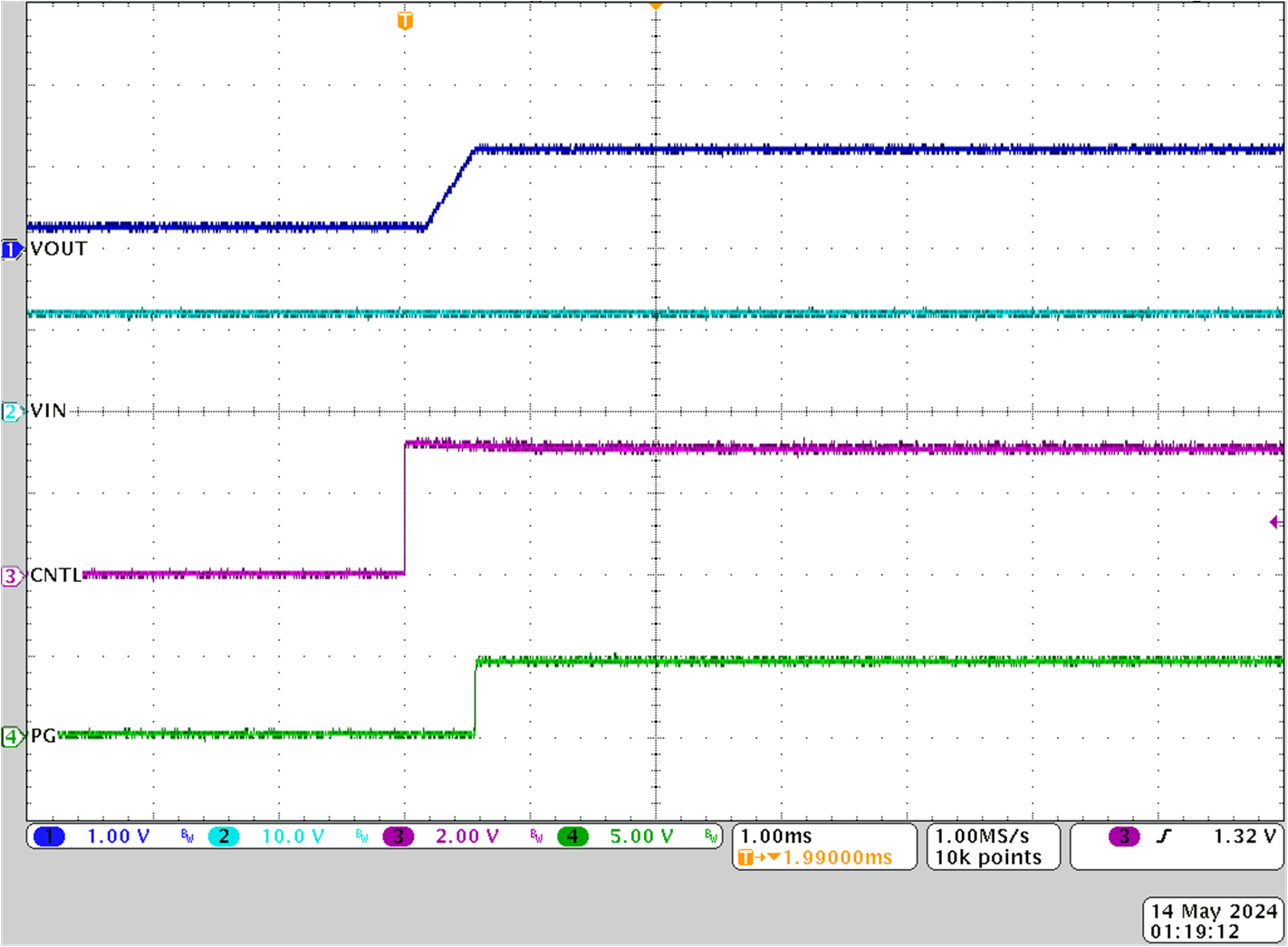

TPS546B26 CNTL Prebiased Start-Up, 300mV Applied
CH1 = VOUT CH3 = CNTL
CH2 = VIN CH4 = PG
Figure 8-3 CNTL Prebiased Start-Up, 300mV Applied

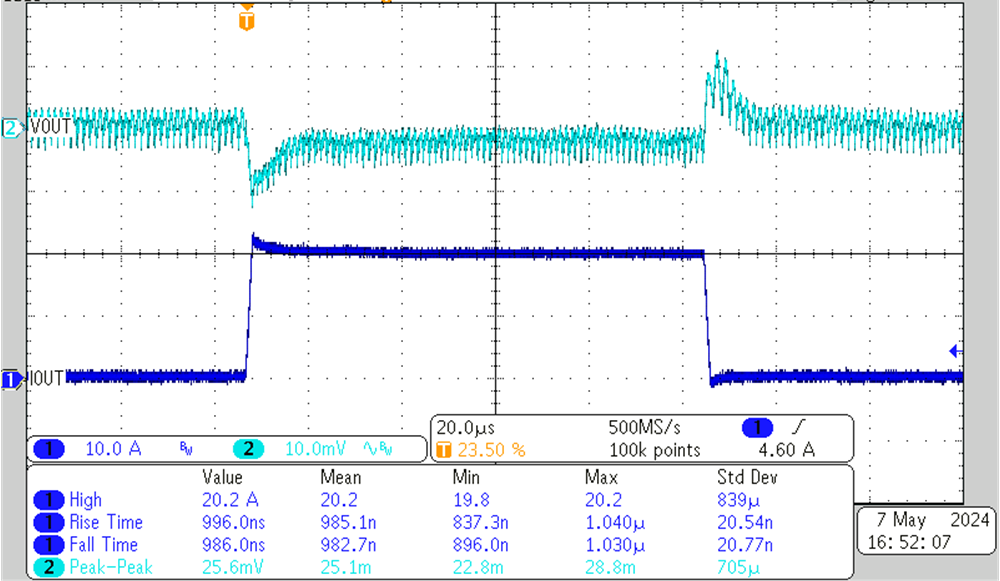

TPS546B26 Load Transient 0A to 20A
CH1 = IOUT
CH2 = VOUT 20A/us Slew Rate
Figure 8-5 Load Transient 0A to 20A
TPS546B26 Output Voltage Ripple, 1.2V Vout, 800kHz DCM, No loadFigure 8-7 Output Voltage Ripple, 1.2V Vout, 800kHz DCM, No load
