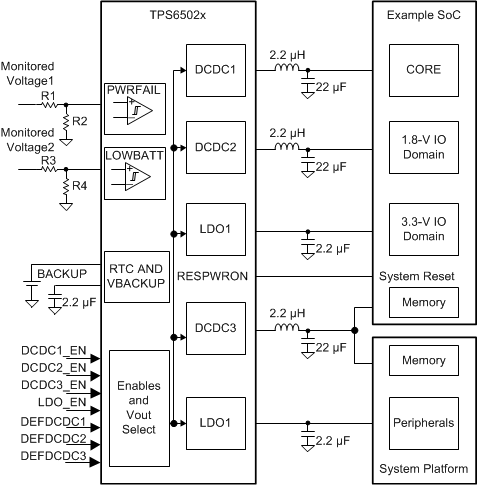

The TPS65022 is an integrated Power Management IC for applications powered by one Li-Ion or Li-Polymer cell, and which require multiple power rails. The TPS65022 provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor based system.
All three step-down converters enter a low-power mode at light load for maximum efficiency across the widest possible range of load currents. The TPS65022 also integrates two general-purpose 200-mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range between 1.5 V and 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the battery.
The default output voltage of the LDOs can be digitally set to 4 different voltage combinations using the DEFLDO1 and DEFLDO2 pins.
The serial interface can be used for dynamic voltage scaling, masking interrupts, or for disabling, enabling, and setting the LDO output voltages. The interface is compatible with the Fast/Standard mode I2C specification, allowing transfers at up to 400 kHz. The TPS65022 is available in a 40-pin (RHA) VQFN package, and operates over a free-air temperature of –40°C to 85°C.
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
TPS65022 | VQFN (40) | 6.00 mm × 6.00 mm |
Changes from A Revision (July 2006) to B Revision
PIN | I/O | DESCRIPTION | |
---|---|---|---|
NAME | NO. | ||
SWITCHING REGULATOR SECTION | |||
AGND1 | 40 | — | Analog ground connection. All analog ground pins are connected internally on the chip. |
AGND2 | 17 | — | Analog ground connection. All analog ground pins are connected internally on the chip. |
DCDC1_EN | 25 | I | VDCDC1 enable pin. A logic high enables the regulator, a logic low disables the regulator. |
DCDC2_EN | 24 | I | VDCDC2 enable pin. A logic high enables the regulator, a logic low disables the regulator. |
DCDC3_EN | 23 | I | VDCDC3 enable pin. A logic high enables the regulator, a logic low disables the regulator. |
DEFDCDC1 | 10 | I | Input signal indicating default VDCDC1 voltage, 0 = 3 V, 1 = 3.3 V. This pin can also be connected to a resistor divider between VDCDC1 and GND. If the output voltage of the DCDC1 converter is set in a range from 0.6 V to VINDCDC1 V. |
DEFDCDC2 | 32 | I | Input signal indicating default VDCDC2 voltage, 0 = 1.8 V, 1 = 2.5 V. This pin can also be connected to a resistor divider between VDCDC2 and GND. If the output voltage of the DCDC2 converter is set in a range from 0.6 V to VINDCDC2 V. |
DEFDCDC3 | 1 | I | Input signal indicating default VDCDC3 voltage, 0 = 1.3 V, 1 = 1.55 V. This pin can also be connected to a resistor divider between VDCDC3 and GND. If the output voltage of the DCDC3 converter is set in a range from 0.6 V to VINDCDC3 V. |
L1 | 7 | — | Switch pin of VDCDC1 converter. The VDCDC1 inductor is connected here. |
L2 | 35 | — | Switch pin of VDCDC2 converter. The VDCDC2 inductor is connected here. |
L3 | 4 | — | Switch pin of VDCDC3 converter. The VDCDC3 inductor is connected here. |
PGND1 | 8 | — | Power ground for VDCDC1 converter |
PGND2 | 34 | — | Power ground for VDCDC2 converter |
PGND3 | 3 | — | Power ground for VDCDC3 converter |
PowerPAD™ | — | — | Connect the power pad to analog ground. |
VCC | 37 | I | Power supply for digital and analog circuitry of VDCDC1, VDCDC2, and VDCDC3 DC-DC converters. This must be connected to the same voltage supply as VINDCDC3, VINDCDC1, and VINDCDC2. Also supplies serial interface block |
VDCDC1 | 9 | I | VDCDC1 feedback voltage sense input, connect directly to VDCDC1 |
VDCDC2 | 33 | I | VDCDC2 feedback voltage sense input, connect directly to VDCDC2 |
VDCDC3 | 2 | I | VDCDC3 feedback voltage sense input, connect directly to VDCDC3 |
VINDCDC1 | 6 | I | Input voltage for VDCDC1 step-down converter. This must be connected to the same voltage supply as VINDCDC2, VINDCDC3, and VCC. |
VINDCDC2 | 36 | I | Input voltage for VDCDC2 step-down converter. This must be connected to the same voltage supply as VINDCDC1, VINDCDC3, and VCC. |
VINDCDC3 | 5 | I | Input voltage for VDCDC3 step-down converter. This must be connected to the same voltage supply as VINDCDC1, VINDCDC2, and VCC. |
LDO REGULATOR SECTION | |||
DEFLD01 | 12 | I | Digital input, used to set default output voltage of LDO1 and LDO2 |
DEFLD02 | 13 | I | Digital input, used to set default output voltage of LDO1 and LDO2 |
LDO_EN | 22 | I | Enable input for LDO1 and LDO2. Logic high enables the LDOs, logic low disables the LDOs |
VBACKUP | 15 | I | Connect the backup battery to this input pin. |
VINLDO | 19 | I | I Input voltage for LDO1 and LDO2 |
VLDO1 | 20 | O | Output voltage of LDO1 |
VLDO2 | 18 | O | Output voltage of LDO2 |
VRTC | 16 | O | Output voltage of the LDO/switch for the real time clock |
VSYSIN | 14 | I | Input of system voltage for VRTC switch |
CONTROL AND I2C SECTION | |||
HOT_RESET | 11 | I | Push button input used to reboot or wake-up processor through RESPWRON output pin |
INT | 28 | O | Open-drain output |
LOW_BAT | 21 | O | Open-drain output of LOW_BAT comparator |
LOWBAT_SNS | 39 | I | Input for the comparator driving the LOW_BAT output. |
PWRFAIL | 31 | O | Open-drain output. Active low when PWRFAIL comparator indicates low VBAT condition. |
PWRFAIL_SNS | 38 | I | Input for the comparator driving the PWRFAIL output. |
RESPWRON | 27 | O | Open-drain System reset output |
SCLK | 30 | I | Serial interface clock line |
SDAT | 29 | I/O | Serial interface data/address |
TRESPWRON | 26 | I | Connect the timing capacitor to this pin to set the reset delay time: 1 nF → 100 ms |
MIN | MAX | UNIT | ||
---|---|---|---|---|
VI | Input voltage range on all pins except AGND and PGND pins with respect to AGND | –0.3 | 7 | V |
Current at VINDCDC1, L1, PGND1, VINDCDC2, L2, PGND2, VINDCDC3, L3, PGND3 | 2000 | mA | ||
Peak current at all other pins | 1000 | mA | ||
TA | Operating free-air temperature | –40 | 85 | °C |
TJ | Maxiumum junction temperature | 125 | °C | |
Tstg | Storage temperature | –65 | 150 | °C |
VALUE | UNIT | |||
---|---|---|---|---|
V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±500 |
MIN | NOM | MAX | UNIT | ||
---|---|---|---|---|---|
VCC | Input voltage range step-down convertors (VINDCDC1, VINDCDC2, VINDCDC3); pins need to be tied to the same voltage rail |
2.5 | 6 | V | |
VO | Output voltage range for VDCDC1 step-down convertor(1) | 0.6 | VINDCDC1 | V | |
Output voltage range for VDCDC2 (mem) step-down convertor(1) | 0.6 | VINDCDC2 | |||
Output voltage range for VDCDC3 (core) step-down convertor(1) | 0.6 | VINDCDC3 | |||
VI | Input voltage range for LDOs (VINLDO1, VINLDO2) | 1.5 | 6.5 | V | |
VO | Output voltage range for LDOs (VLDO1, VLDO2) | 1 | VINLDO1-2 | V | |
IO(DCDC2) | Output current at L1 | 1200 | mA | ||
Inductor at L1(2) | 2.2 | 3.3 | μH | ||
CI(DCDC1) | Input capacitor at VINDCDC1 (2) | 10 | μF | ||
CO(DCDC1) | Output capacitor at VDCDC1 (2) | 10 | 22 | μF | |
IO(DCDC2) | Output current at L2 | 1000 | mA | ||
Inductor at L2 (2) | 2.2 | 3.3 | μH | ||
CI(DCDC2) | Input capacitor at VINDCDC2 (2) | 10 | μF | ||
CO(DCDC2) | Output capacitor at VDCDC2 (2) | 10 | 22 | μF | |
IO(DCDC3) | Output current at L3 | 900 | mA | ||
Inductor at L3 (2) | 2.2 | 3.3 | μH | ||
CI(DCDC3) | Input capacitor at VINDCDC3(2) | 10 | μF | ||
CO(DCDC3) | Output capacitor at VDCDC3 (2) | 10 | 22 | μF | |
CI(VCC) | Input capacitor at VCC (2) | 1 | μF | ||
Ci(VINLDO) | Input capacitor at VINLDO (2) | 1 | μF | ||
CO(VLDO1-2) | Output capacitor at VLDO1, VLDO2 (2) | 2.2 | μF | ||
IO(VLDO1-2) | Output current at VLDO1, VLDO2 | 200 | mA | ||
CO(VRTC) | Output capacitor at VRTC (2) | 4.7 | μF | ||
TA | Operating ambient temperature | –40 | 85 | °C | |
TJ | Operating junction temperature | –40 | 125 | °C | |
Resistor from VINDCDC3, VINDCDC2, VINDCDC1 to VCC used for filtering(3) | 1 | 10 | Ω |
THERMAL METRIC(1) | TPS65022 | UNIT | |
---|---|---|---|
RHA (VQFN) | |||
40 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 31.6 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 18.2 | °C/W |
RθJB | Junction-to-board thermal resistance | 6.6 | °C/W |
ψJT | Junction-to-top characterization parameter | 0.2 | °C/W |
ψJB | Junction-to-board characterization parameter | 6.5 | °C/W |
RθJC(bot) | Junction-to-case (bottom) thermal resistance | 1.7 | °C/W |
PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |||
---|---|---|---|---|---|---|---|---|
CONTROL SIGNALS : SCLK, SDAT (input), DCDC1_EN, DCDC2_EN, DCDC3_EN, LDO_EN, DEFLDO1, DEFLDO2 | ||||||||
VIH | High level input voltage | Rpullup at SCLK and SDAT = 4.7 kΩ, pulled to VRTC | 1.3 | VCC | V | |||
VIL | Low level input voltage | Rpullup at SCLK and SDAT = 4.7 kΩ, pulled to VRTC | 0 | 0.4 | V | |||
IH | Input bias current | 0.01 | 0.1 | μA | ||||
CONTROL SIGNALS : HOT_RESET | ||||||||
VIH | High level input voltage | 1.3 | VCC | V | ||||
VIL | Low level input voltage | 0 | 0.4 | V | ||||
IIB | Input bias current | 0.01 | 0.1 | μA | ||||
tdeglitch | Deglitch time at HOT_RESET | 25 | 30 | 35 | ms | |||
CONTROL SIGNALS : LOWBAT, PWRFAIL, RESPWRON, INT, SDAT (output) | ||||||||
VOH | High level output voltage | 6 | V | |||||
VOL | Low level output voltage | IIL = 5 mA | 0 | 0.3 | V | |||
Duration of low pulse at RESPWRON | External capacitor 1 nF | 100 | ms | |||||
ICONST | internal charge and discharge current on pin TRESPWRON | used for generating RESPWRON delay | 1.7 | 2 | 2.3 | μA | ||
TRESPWRON_LOWTH | internal lower comparator threshold on pin TRESPWRON | used for generating RESPWRON delay | 0.225 | 0.25 | 0.275 | V | ||
TRESPWRON_UPTH | internal upper comparator threshold on pin TRESPWRON | used for generating RESPWRON delay | 0.97 | 1 | 1.103 | V | ||
Resetpwron threshold | VRTC falling | –3% | 2.4 | 3% | V | |||
Resetpwron threshold | VRTC rising | –3% | 2.52 | 3% | V | |||
ILK | leakage current | output inactive high | 0.1 | μA | ||||
SUPPLY PINS: VCC, VINDCDC1, VINDCDC2, VINDCDC3 | ||||||||
I(q) | Operating quiescent current, PFM | VCC = 3.6 V, VBACKUP = 3 V; V(VSYSIN) = 0 V |
All 3 DCDC converters enabled, zero load and no switching, LDOs enabled |
85 | 100 | μA | ||
All 3 DCDC converters enabled, zero load and no switching, LDOs off |
78 | 90 | ||||||
DCDC1 and DCDC2 converters enabled, zero load and no switching, LDOs off |
57 | 70 | ||||||
DCDC1 converter enabled, zero load and no switching, LDOs off |
43 | 55 | ||||||
II | Current into VCC; PWM | VCC = 3.6 V, VBACKUP = 3 V; V(VSYSIN) = 0 V |
All 3 DCDC converters enabled and running in PWM, LDOs off |
2 | 3 | mA | ||
DCDC1 and DCDC2 converters enabled and running in PWM, LDOs off |
1.5 | 2.5 | ||||||
DCDC1 converter enabled and running in PWM, LDOs off |
0.85 | 2 | ||||||
I(q) | Quiescent current | All converters disabled, LDOs off, V(VSYSIN) = 0 V |
VCC = 3.6 V, VBACKUP = 3 V | 23 | 33 | μA | ||
VCC = 2.6 V, VBACKUP = 3 V | 3.5 | 5 | ||||||
VCC = 3.6 V, VBACKUP = 0 V | 43 | |||||||
SUPPLY PINS: VBACKUP, VSYSIN, VRTC | ||||||||
I(q) | Operating quiescent current | VBACKUP = 3 V, VSYSIN = 0 V; VCC = 2.6 V, current into VBACKUP |
20 | 33 | μA | |||
I(SD) | Operating quiescent current | VBACKUP < V_VBACKUP, current into VBACKUP | 2 | 3 | μA | |||
VRTC LDO output voltage | VSYSIN = VBACKUP = 0 V, IO = 0 mA | 3 | V | |||||
IO | Output current for VRTC | VSYSIN < 2.57 V and VBACKUP < 2.57 V | 30 | mA | ||||
VRTC short-circuit current limit | VRTC = GND; VSYSIN = VBACKUP = 0 V | 100 | mA | |||||
Maximum output current at VRTC for RESPWRON = 1 |
VRTC > 2.6 V, VCC = 3 V; VSYSIN = VBACKUP = 0 V | 30 | mA | |||||
VO | Output voltage accuracy for VRTC | VSYSIN = VBACKUP = 0 V; IO = 0 mA | –1% | 1% | ||||
Line regulation for VRTC | VCC = VRTC + 0.5 V to 6.5 V, IO = 5 mA | –1% | 1% | |||||
Load regulation VRTC | IO = 1 mA to 30 mA; VSYSIN = VBACKUP = 0 V | –3% | 1% | |||||
Regulation time for VRTC | Load change from 10% to 90% | 10 | μs | |||||
Ilkg | Input leakage current at VSYSIN | VSYSIN < V_VSYSIN | 2 | μA | ||||
rDS(on) of VSYSIN switch | 12.5 | Ω | ||||||
rDS(on) of VBACKUP switch | 12.5 | Ω | ||||||
Input voltage range at VBACKUP(1) | 2.73 | 3.75 | V | |||||
Input voltage range at VSYSIN(1) | 2.73 | 3.75 | V | |||||
VSYSIN threshold | VSYSIN falling | –3% | 2.55 | 3% | V | |||
VSYSIN threshold | VSYSIN rising | –3% | 2.65 | 3% | V | |||
VBACKUP threshold | VBACKUP falling | –3% | 2.55 | 3% | V | |||
VBACKUP threshold | VBACKUP falling | –3% | 2.65 | 3% | V | |||
SUPPLY PIN: VINLDO | ||||||||
I(q) | Operating quiescent current | Current per LDO into VINLDO | 16 | 30 | μA | |||
I(SD) | Shutdown current | Total current for both LDOs into VINLDO, VLDO = 0 V | 0.1 | 1 | μA | |||
VDCDC1 STEP-DOWN CONVERTER | ||||||||
VI | Input voltage range, VINDCDC1 | 2.5 | 6 | V | ||||
IO | Maximum output current | 1200 | mA | |||||
I(SD) | Shutdown supply current in VINDCDC1 | DCDC1_EN = GND | 0.1 | 1 | μA | |||
rDS(on) | P-channel MOSFET on-resistance | VINDCDC1 = V(GS) = 3.6 V | 125 | 261 | mΩ | |||
Ilkg | P-channel leakage current | VINDCDC1 = 6 V | 2 | μA | ||||
rDS(on) | N-channel MOSFET on-resistance | VINDCDC1 = V(GS) = 3.6 V | 130 | 260 | mΩ | |||
Ilkg | N-channel leakage current | V(DS) = 6 V | 7 | 10 | μA | |||
Forward current limit (P- and N-channel) | 2.5 V < VI(MAIN) < 6 V | 1.55 | 1.75 | 1.95 | A | |||
fS | Oscillator frequency | 1.3 | 1.5 | 1.7 | MHz | |||
Fixed output voltage FPWMDCDC1 = 0 | 3 V | VINDCDC1 = 3.3 V to 6 V; 0 mA ≤ IO ≤ 1.2 A | –2% | 2% | ||||
3.3 V | VINDCDC1 = 3.6 V to 6 V; 0 mA ≤ IO ≤ 1.2 A | –2% | 2% | |||||
Fixed output voltage FPWMDCDC1 = 1 | 3 V | VINDCDC1 = 3.3 V to 6 V; 0 mA ≤ IO ≤ 1.2 A | –1% | 1% | ||||
3.3 V | VINDCDC1 = 3.6 V to 6 V; 0 mA ≤ IO ≤ 1.2 A | –1% | 1% | |||||
Adjustable output voltage with resistor divider at DEFDCDC1; FPWMDCDC1 = 0 | VINDCDC1 = VDCDC1 + 0.3 V (min 2.5 V) to 6 V; 0 mA ≤ IO ≤ 1.2 A |
–2% | 2% | |||||
Adjustable output voltage with resistor divider at DEFDCDC1; FPWMDCDC1 = 1 | VINDCDC1 = VDCDC1 + 0.3 V (min 2.5 V) to 6 V; 0 mA ≤ IO ≤ 1.2 A |
–1% | 1% | |||||
Line Regulation | VINDCDC1 = VDCDC1 + 0.3 V (min 2.5 V) to 6 V; IO = 10 mA |
0 | %/V | |||||
Load Regulation | IO = 10 mA to 1200 mA | 0.25 | %/A | |||||
Soft start ramp time | VDCDC1 ramping from 5% to 95% of target value | 750 | μs | |||||
Internal resistance from L1 to GND | 1 | MΩ | ||||||
VDCDC1 discharge resistance | DCDC1 discharge = 1 | 300 | Ω | |||||
VDCDC2 STEP-DOWN CONVERTER | ||||||||
VI | Input voltage range, VINDCDC2 | 2.5 | 6 | V | ||||
IO | Maximum output current | 1000 | mA | |||||
I(SD) | Shutdown supply current in VINDCDC2 | DCDC2_EN = GND | 0.1 | 1 | μA | |||
rDS(on) | P-channel MOSFET on-resistance | VINDCDC2 = V(GS) = 3.6 V | 140 | 300 | mΩ | |||
Ilkg | P-channel leakage current | VINDCDC2 = 6 V | 2 | μA | ||||
rDS(on) | N-channel MOSFET on-resistance | VINDCDC2 = V(GS) = 3.6 V | 150 | 297 | mΩ | |||
Ilkg | N-channel leakage current | V(DS) = 6 V | 7 | 10 | μA | |||
ILIMF | Forward current limit (P- and N-channel) | 2.5 V < VINDCDC2 < 6 V | 1.4 | 1.55 | 1.7 | A | ||
fS | Oscillator frequency | 1.3 | 1.5 | 1.7 | MHz | |||
Fixed output voltage FPWMDCDC2 = 0 | 1.8 V | VINDCDC2 = 2.5 V to 6 V; 0 mA ≤ IO ≤ 1 A | –2% | 2% | ||||
2.5 V | VINDCDC2 = 2.8 V to 6 V; 0 mA ≤ IO ≤ 1 A | –2% | 2% | |||||
Fixed output voltage FPWMDCDC2 = 1 | 1.8 V | VINDCDC2 = 2.5 V to 6 V; 0 mA ≤ IO ≤ 1 A | –2% | 2% | ||||
2.5 V | VINDCDC2 = 2.8 V to 6 V; 0 mA ≤ IO ≤ 1 A | –1% | 1% | |||||
Adjustable output voltage with resistor divider at DEFDCDC2 FPWMDCDC2 = 0 | VINDCDC2 = VDCDC2 + 0.3 V (min 2.5 V) to 6 V; 0 mA ≤ IO ≤ 1 A |
–2% | 2% | |||||
Adjustable output voltage with resistor divider at DEFDCDC2; FPWMDCDC2 = 1 | VINDCDC2 = VDCDC2 + 0.3 V (min 2.5 V) to 6 V; 0 mA ≤ IO ≤ 1 A |
–1% | 1% | |||||
Line Regulation | VINDCDC2 = VDCDC2 + 0.3 V (min 2.5 V) to 6 V; IO = 10 mA |
0 | %/V | |||||
Load Regulation | IO = 10 mA to 1 mA | 0.25 | %/A | |||||
Soft start ramp time | VDCDC2 ramping from 5% to 95% of target value | 750 | μs | |||||
Internal resistance from L2 to GND | 1 | MΩ | ||||||
VDCDC2 discharge resistance | DCDC2 discharge =1 | 300 | Ω | |||||
VDCDC3 STEP-DOWN CONVERTER | ||||||||
VI | Input voltage range, VINDCDC3 | 2.5 | 6 | V | ||||
IO | Maximum output current | 900 | mA | |||||
I(SD) | Shutdown supply current in VINDCDC3 | DCDC3_EN = GND | 0.1 | 1 | μA | |||
rDS(on) | P-channel MOSFET on-resistance | VINDCDC3 = V(GS) = 3.6 V | 310 | 698 | mΩ | |||
Ilkg | P-channel leakage current | VINDCDC3 = 6 V | 0.1 | 2 | μA | |||
rDS(on) | N-channel MOSFET on-resistance | VINDCDC3 = V(GS) = 3.6 V | 220 | 503 | mΩ | |||
Ilkg | N-channel leakage current | V(DS) = 6 V | 7 | 10 | μA | |||
Forward current limit (P- and N-channel) | 2.5 V < VINDCDC3 < 6 V | 1.15 | 1.34 | 1.52 | A | |||
fS | Oscillator frequency | 1.3 | 1.5 | 1.7 | MHz | |||
Fixed output voltage FPWMDCDC3 = 0 | All VDCDC3 | VINDCDC3 = 2.5 V to 6 V; 0 mA ≤ IO ≤ 800 mA | –2% | 2% | ||||
Fixed output voltage FPWMDCDC3 = 1 | All VDCDC3 | VINDCDC3 = 2.5 V to 6 V; 0 mA ≤ IO ≤ 800 mA | –1% | 1% | ||||
Adjustable output voltage with resistor divider at DEFDCDC3 FPWMDCDC3 = 0 | VINDCDC3 = VDCDC3 + 0.5 V (min 2.5 V) to 6 V; 0 mA ≤ IO ≤ 800 mA |
–2% | 2% | |||||
Adjustable output voltage with resistor divider at DEFDCDC3; FPWMDCDC3 = 1 | VINDCDC3 = VDCDC3 + 0.5 V (min 2.5 V) to 6 V; 0 mA ≤ IO ≤ 800 mA |
–1% | 1% | |||||
Line Regulation | VINDCDC3 = VDCDC3 + 0.3 V (min 2.5 V) to 6 V; IO = 10 mA |
0 | %/V | |||||
Load Regulation | IO = 10 mA to 400 mA | 0.25 | %/A | |||||
Soft start ramp time | VDCDC3 ramping from 5% to 95% of target value | 750 | μs | |||||
Internal resistance from L3 to GND | 1 | MΩ | ||||||
VDCDC3 discharge resistance | DCDC3 discharge =1 | 300 | Ω | |||||
VLDO1 and VLDO2 LOW DROPOUT REGULATORS | ||||||||
VI | Input voltage range for LDO1, 2 | 1.5 | 6.5 | V | ||||
VO | LDO1 output voltage range | 1 | 3.3 | V | ||||
VO | LDO2 output voltage range | 1 | 3.3 | V | ||||
IO | Maximum output current for LDO1, LDO2 | VI = 1.8 V, VO = 1.3 V | 200 | mA | ||||
VI = 1.5 V, VO = 1.3 V | 120 | |||||||
I(SC) | LDO1 and LDO2 short circuit current limit | V(LDO1) = GND, V(LDO2) = GND | 400 | mA | ||||
Minimum voltage drop at LDO1, LDO2 | IO = 50 mA, VINLDO = 1.8 V | 120 | mV | |||||
IO = 50 mA, VINLDO = 1.5 V | 65 | 150 | ||||||
IO = 200 mA, VINLDO = 1.8 V | 300 | |||||||
Output voltage accuracy for LDO1, LDO2 | IO = 10 mA | –2% | 1% | |||||
Line regulation for LDO1, LDO2 | VINLDO1,2 = VLDO1,2 + 0.5 V (min 2.5 V) to 6.5 V, IO = 10 mA |
–1% | 1% | |||||
Load regulation for LDO1, LDO2 | IO = 0 mA to 50 mA | –1% | 1% | |||||
Regulation time for LDO1, LDO2 | Load change from 10% to 90% | 10 | μs | |||||
ANALOGIC SIGNALS DEFDCDC1, DEFDCDC2, DEFDCDC3 | ||||||||
VIH | High level input voltage | 1.3 | VCC | V | ||||
VIL | Low level input voltage | 0 | 0.1 | V | ||||
Input bias current | 0.001 | 0.05 | μA | |||||
THERMAL SHUTDOWN | ||||||||
T(SD) | Thermal shutdown | Increasing junction temperature | 160 | °C | ||||
Thermal shutdown hysteresis | Decreasing junction temperature | 20 | °C | |||||
INTERNAL UNDERVOLTAGE LOCK OUT | ||||||||
UVLO | Internal UVLO | VCC falling | –2% | 2.35 | 2% | V | ||
V(UVLO_HYST) | Internal UVLO comparator hysteresis | 120 | mV | |||||
VOLTAGE DETECTOR COMPARATORS | ||||||||
Comparator threshold (PWRFAIL_SNS, LOWBAT_SNS) | Falling threshold | –1% | 1 | 1% | V | |||
Hysteresis | 40 | 50 | 60 | mV | ||||
Propagation delay | 25 mV overdrive | 10 | μs | |||||
POWER GOOD | ||||||||
V(PGOODF) | VDCDC1, VDCDC2, VDCDC3, VLDO1, VLDO2, decreasing | –12% | –10% | –8% | ||||
V(PGOODR) | VDCDC1, VDCDC2, VDCDC3, VLDO1, VLDO2, increasing | –7% | –5% | –3% |
MIN | MAX | UNIT | ||
---|---|---|---|---|
fMAX | Clock frequency | 400 | kHz | |
twH(HIGH) | Clock high time | 600 | ns | |
twL(LOW) | Clock low time | 1300 | ns | |
tR | DATA and CLK rise time | 300 | ns | |
tF | DATA and CLK fall time | 300 | ns | |
th(STA) | Hold time (repeated) START condition (after this period the first clock pulse is generated) | 600 | ns | |
th(DATA) | Setup time for repeated START condition | 600 | ns | |
th(DATA) | Data input hold time | 0 | ns | |
tsu(DATA) | Data input setup time | 100 | ns | |
tsu(STO) | STOP condition setup time | 600 | ns | |
t(BUF) | Bus free time | 1300 | ns |
FIGURE | ||
---|---|---|
Efficiency | vs Output current | Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 |
Line transient response | Figure 11, Figure 12, Figure 13 | |
Load transient response | Figure 14, Figure 15, Figure 16 | |
Output voltage ripple | Figure 17, Figure 18, Figure 19 | |
Startup | Figure 20, Figure 21 | |
Line transient response | Figure 22, Figure 23, Figure 24 | |
Load transient response | Figure 25, Figure 26, Figure 27 |
TPS65022 has 5 regulator channels, 3 DCDCs and 2 LDOs. DCDC3 has dynamic voltage scaling feature, DVS, that allows for power reduction to CORE supplies during idle operation or over voltage during heavy duty operation. With DVS and 2 more DCDCs plus 2 LDOs, the TPS65022 is ideal for CORE, Memory, IO, and peripheral power for the entire system of a wide range of suitable applications.
The device incorporates enables for the DCDCs and LDOs, I2C for device control, pushbutton and a reset interface that complete the system and allow for the TPS65022 to be adapted for different kinds of processors or FPGAs.
For noise sensitive circuits, the DCDCs can be synchronized out of phase from one another, reducing the peak noise at the switching frequency. Each converter can be forced to operate in PWM mode to ensure constant switching frequency across the entire load range. However, for low load efficiency performance the DCDCs automatically enter PSM mode, which reduces the switching frequency when the load current is low, saving power at idle operation.
The VRTC pin is an always-on output, intended to supply up to 30 mA to a permanently required rail. This is the VCC_BATT rail of the Intel® PXA270 Bulverde processor for example.
In applications using a backup battery, the backup voltage can be either directly connected to the TPS65022 VBACKUP pin if a Li-Ion cell is used, or through a boost converter (TPS61070) if a single NiMH battery is used. The voltage applied to the VBACKUP pin is fed through a PMOS switch to the VRTC pin. The TPS65022 asserts the RESPWRON signal if VRTC drops below 2.4 V. This, together with 375 mV at 30 mA drop out for the PMOS switch means that the voltage applied at VBACKUP must be greater than 2.775 V for normal system operation.
When the voltage at the VSYSIN pin exceeds 2.65 V, the path from VBACKUP to VRTC is cut, and VRTC is supplied by a similar PMOS switch from the voltage source connected to the VSYSIN input. Typically this is the VDCDC1 converter but can be any voltage source within the appropriate range.
In systems where no backup battery is used, the VBACKUP pin is connected to GND. In this case, a low power LDO is enabled, supplied from VCC and capable of delivering 30 mA to the 3-V output. This LDO is disabled if the voltage at the VSYSIN input exceeds 2.65 V. VRTC is then supplied from the external source connected to this pin as previously described.
Inside TPS65022 there is a switch (Vmax switch) that selects the higher voltage between VCC and VBACKUP. This is used as the supply voltage for some basic functions. The functions powered from the output of the Vmax switch are:
The main 1.5-MHz oscillator, and the I2C interface are only powered from VCC.
The TPS65022 incorporates three synchronous step-down converters operating typically at 1.5-MHz fixed frequency pulse width modulation (PWM) at moderate to heavy load currents. At light load currents, the converters automatically enter the power save mode (PSM), and operate with pulse frequency modulation (PFM). The VDCDC1 converter is capable of delivering 1.2-A output current, the VDCDC2 converter is capable of delivering 1 A and the VDCDC3 converter is capable of delivering up to 900 mA.
The converter output voltages can be programmed by the DEFDCDC1, DEFDCDC2 and DEFDCDC3 pins. The pins can either be connected to GND, VCC, or to a resistor divider between the output voltage and GND. The VDCDC1 converter defaults to 3 V or 3.3 V depending on the DEFDCDC1 configuration pin. If DEFDCDC1 is tied to ground, the default is 3 V. If it is tied to VCC, the default is 3.3 V. When the DEFDCDC1 pin is connected to a resistor divider, the output voltage can be set in the range of 0.6 V to VINDCDC1 V. See the application information section for more details.
The VDCDC2 converter defaults to 1.8 V or 2.5 V depending on the DEFDCDC2 configuration pin. If DEFDCDC2 is tied to ground, the default is 1.8 V. If it is tied to VCC, the default is 2.5 V. When the DEFDCDC2 pin is connected to a resistor divider, the output voltage can be set in the range of 0.6 V to VINDCDC2 V.
The VDCDC3 converter defaults to 1.3 V or 1.55 V depending on the DEFDCDC3 configuration pin. If DEFDCDC3 is tied to ground the default is 1.3 V. If it is tied to VCC, the default is 1.55 V. When the DEFDCDC3 pin is connected to a resistor divider, the output voltage can be set in the range of 0.6 V to VINDCDC3 V. The core voltage can be reprogrammed through the serial interface in the range of 0.8 V to 1.6 V with a programmable slew rate. The converter is forced into PWM operation whilst any programmed voltage change is underway, whether the voltage is being increased or decreased. The DEFCORE and DEFSLEW registers are used to program the output voltage and slew rate during voltage transitions.
The step-down converter outputs (when enabled) are monitored by power good (PG) comparators, the outputs of which are available through the serial interface. The outputs of the DC-DC converters can be optionally discharged through on-chip 300-Ω resistors when the DC-DC converters are disabled.
During PWM operation, the converters use a unique fast response voltage mode controller scheme with input voltage feed-forward to achieve good line and load regulation allowing the use of small ceramic input and output capacitors. At the beginning of each clock cycle initiated by the clock signal, the P-channel MOSFET switch is turned on. The inductor current ramps up until the comparator trips and the control logic turns off the switch. The current limit comparator also turns off the switch if the current limit of the P-channel switch is exceeded. After the adaptive dead time used to prevent shoot through current, the N-channel MOSFET rectifier is turned on, and the inductor current ramps down. The next cycle is initiated by the clock signal, again turning off the N-channel rectifier and turning on the P-channel switch.
The three DC-DC converters operate synchronized to each other with the VDCDC1 converter as the master. A 180° phase shift between the VDCDC1 switch turn on and the VDCDC2 and a further 90° shift to the VDCDC3 switch turn on decreases the input RMS current and smaller input capacitors can be used. This is optimized for a typical application where the VDCDC1 converter regulates a Li-Ion battery voltage of 3.7 V to 3.3 V, the VDCDC2 converter from 3.7 V to 2.5 V, and the VDCDC3 converter from 3.7 V to 1.5 V. The phase of the three converters can be changed using the CON_CTRL register.
As the load current decreases, the converters enter the power save mode operation. During PSM, the converters operate in a burst mode (PFM mode) with a frequency between 750 kHz and 1.5 MHz, nominal for one burst cycle. However, the frequency between different burst cycles depends on the actual load current and is typically far less than the switching frequency with a minimum quiescent current to maintain high efficiency.
In order to optimize the converter efficiency at light load, the average current is monitored and if in PWM mode the inductor current remains below a certain threshold, then PSM is entered. The typical threshold to enter PSM is calculated as follows:
During the PSM the output voltage is monitored with a comparator, and by maximum skip burst width. As the output voltage falls below the threshold, set to the nominal VO, the P-channel switch turns on and the converter effectively delivers a constant current defined as follows.
If the load is below the delivered current then the output voltage rises until the same threshold is crossed in the other direction. All switching activity ceases, reducing the quiescent current to a minimum until the output voltage has again dropped below the threshold. The power save mode is exited, and the converter returns to PWM mode if either of the following conditions are met:
These control methods reduce the quiescent current to typically 14 μA per converter, and the switching activity to a minimum, thus achieving the highest converter efficiency. Setting the comparator thresholds at the nominal output voltage at light load current results in a low output voltage ripple. The ripple depends on the comparator delay and the size of the output capacitor. Increasing capacitor values makes the output ripple tend to zero. The PSM is disabled through the I2C interface to force the individual converters to stay in fixed frequency PWM mode.
Setting Bit 3 in register CON-CTRL to 1 enables the low ripple mode for all of the DC-DC converters if operated in PFM mode. For an output current less than approximately 10 mA, the output voltage ripple in PFM mode is reduced, depending on the actual load current. The lower the actual output current on the converter, the lower the output ripple voltage. For an output current above 10 mA, there is only a minor difference in output voltage ripple between PFM mode and low ripple PFM mode. As this feature also increases switching frequency, it is used to keep the switching frequency above the audible range in PFM mode down to a low output current.
Each of the three converters has an internal soft-start circuit that limits the inrush current during start-up. The soft start is realized by using a very low current to initially charge the internal compensation capacitor. The soft start time is typically 750 μs if the output voltage ramps from 5% to 95% of the final target value. If the output is already pre-charged to some voltage when the converter is enabled, then this time is reduced proportionally. There is a short delay of typically 170 μs between the converter being enabled and switching activity actually starting. This is to allow the converter to bias itself properly, to recognize if the output is pre-charged, and if so to prevent discharging of the output while the internal soft start ramp catches up with the output voltage.
The TPS65022 converters offer a low input to output voltage difference while still maintaining operation with the use of the 100% duty cycle mode. In this mode the P-channel switch is constantly turned on. This is particularly useful in battery-powered applications to achieve longest operation time by taking full advantage of the whole battery voltage range. The minimum input voltage required to maintain DC regulation depends on the load current and output voltage. It is calculated as:
where
When the VDCDC1, VDCDC2, and VDCDC3 converters are disabled, due to an UVLO, DCDC_EN or OVERTEMP condition, it is possible to actively pull down the outputs. This feature is disabled per default and is individually enabled through the CON_CTRL2 register in the serial interface. When this feature is enabled, the VDCDC1, VDCDC2, and VDCDC3 outputs are discharged by a 300 Ω (typical) load which is active as long as the converters are disabled.
All three step-down converters and both the LDO1 and LDO2 linear regulators have power good comparators. Each comparator indicates when the relevant output voltage has dropped 10% below its target value with 5% hysteresis. The outputs of these comparators are available in the PGOODZ register through the serial interface. An interrupt is generated when any voltage rail drops below the 10% threshold. The comparators are disabled when the converters are disabled and the relevant PGOODZ register bits indicate that power is good.
The low dropout voltage regulators are designed to operate well with low value ceramic input and output capacitors, with input voltages down to 1.5 V. The LDOs offer a maximum dropout voltage of 300 mV at rated output current. Each LDO supports a current limit feature. Both LDOs are enabled by the LDO_EN pin, both LDOs can be disabled or programmed through the serial interface using the REG_CTRL and LDO_CTRL registers. The LDOs also have reverse conduction prevention. This allows the possibility to connect external regulators in parallel in systems with a backup battery. The TPS65022 step-down and LDO voltage regulators automatically power down when the VCC voltage drops below the UVLO threshold or when the junction temperature rises above 160°C.
The undervoltage lockout circuit for the five regulators on the TPS65022 prevents the device from malfunctioning at low-input voltages and from excessive discharge of the battery. It disables the converters and LDOs. The UVLO circuit monitors the VCC pin, the threshold is set internally to 2.35 V with 5% (120 mV) hysteresis. Note that when any of the DC-DC converters are running, there is an input current at the VCC pin, which is up to 3 mA when all three converters are running in PWM mode. This current must be taken into consideration if an external RC filter is used at the VCC pin to remove switching noise from the TPS65022 internal analog circuitry supply.
The TPS65022 power-up sequencing is designed to be entirely flexible and customer driven. This is achieved by providing separate enable pins for each switch-mode converter, and a common enable signal for the LDOs. The relevant control pins are described in Table 2.
PIN NAME | INPUT OUTPUT | FUNCTION |
---|---|---|
DEFDCDC3 | I | Defines the default voltage of the VDCDC3 switching converter. DEFDCDC3 = 0 defaults VDCDC3 to 1.3 V, DEFDCDC3 = VCC defaults VDCDC3 to 1.55 V. |
DEFDCDC2 | I | Defines the default voltage of the VDCDC2 switching converter. DEFDCDC2 = 0 defaults VDCDC2 to 1.8 V, DEFDCDC2 = VCC defaults VDCDC2 to 2.5 V. |
DEFDCDC1 | I | Defines the default voltage of the VDCDC1 switching converter. DEFDCDC1 = 0 defaults VDCDC1 to 3 V, DEFDCDC1 = VCC defaults VDCDC1 to 3.3 V. |
DCDC3_EN | I | Set DCDC3_EN = 0 to disable and DCDC3_EN = 1 to enable the VDCDC3 converter |
DCDC2_EN | I | Set DCDC2_EN = 0 to disable and DCDC2_EN = 1 to enable the VDCDC2 converter |
DCDC1_EN | I | Set DCDC1_EN = 0 to disable and DCDC1_EN = 1 to enable the VDCDC1 converter |
HOT_RESET | I | The HOT_RESET pin generates a reset (RESPWRON) for the processor.HOT_RESET does not alter any TPS65022 settings except the output voltage of VDCDC3. Activating HOT_RESET sets the voltage of VDCDC3 to its default value defined with the DEFDCDC3 pin. HOT_RESET is internally de-bounced by the TPS65022. |
RESPWRON | O | RESPWRON is held low when power is initially applied to the TPS65022. The VRTC voltage is monitored: RESWPRON is low when VRTC < 2.4 V and remains low for a time defined by the external capacitor at the TRESPWRON pin. RESPWRON can also be forced low by activation of the HOT_RESET pin. |
TRESPWRON | I | Connect a capacitor here to define the RESET time at the RESPWRON pin. 1 nF typically gives 100 ms. |
The RESPWRON signal can be used as a global reset for the application. It is an open-drain output. The RESPWRON signal is generated according to the power good comparator of VRTC, and remains low for tnrespwron seconds after VRTC has risen above 2.52 V (falling threshold is 2.4 V, 5% hysteresis). tnrespwron is set by an external capacitor at the TRESPWRON pin. 1 nF gives typically 100 ms. RESPWRON is also triggered by the HOT_RESET input. This input is internally debounced, with a filter time of typically 30 ms.
The PWRFAIL and LOW_BAT signals are generated by two voltage detectors using the PWRFAIL_SNS and LOWBAT_SNS input signals. Each input signal is compared to a 1 V threshold (falling edge) with 5% (50 mV) hysteresis.
The DCDC3 converter is reset to its default output voltage defined by the DEFDCDC3 input, when HOT_RESET is asserted. Other I2C registers are not affected. Generally, the DCDC3 converter is set to its default voltage with one of these conditions: HOT_RESET active, VRTC lower than its threshold voltage, undervoltage lockout (UVLO) condition, RESPWRON active, both DCDC3-converter AND DCDC1-converter disabled. In addition, the voltage of VDCDC3 changes to 1xxx0, if the VDCDC1 converter is disabled. Where xxx is the state before VDCDC1 was disabled.
These two pins are used to set the default output voltage of the two 200 mA LDOs. The digital value applied to the pins is latched during power up and determines the initial output voltage according to Table 3. The voltage of both LDOs can be changed during operation with the I2C interface as described in the interface description.
DEFLDO2 | DEFLDO1 | VLDO1 | VLDO2 |
---|---|---|---|
0 | 0 | 1.1 V | 1.3 V |
0 | 1 | 1.5 V | 1.3 V |
1 | 0 | 2.6 V | 2.8 V |
1 | 1 | 3.15 V | 3.3 V |
The INT pin combines the outputs of the PGOOD comparators from each DC-DC converter and LDOs. The INT pin is used as a POWER_OK pin indicating when all enabled supplies are in regulation. If the PGOODZ register is read through the serial interface, any active bits are then blocked from the INT output pin.
Interrupts can be masked using the MASK register; default operation is not to mask any DCDC or LDO interrupts since this provides the POWER_OK function.
The TPS650231 device is in the ON or the OFF mode. The OFF mode is entered when the voltage on VCC is below the UVLO threshold, 2.35 V (typically). Once the voltage at V CC has increased above UVLO, the device enters ON mode. In the ON mode, the DCDCs and LDOs are available for use.
The serial interface is compatible with the standard and fast mode I2C specifications, allowing transfers up to 400 kHz. The interface adds flexibility to the power supply solution, enabling most functions to be programmed to new values depending on the instantaneous application requirements and charger status to be monitored. Register contents remain intact as long as VCC remains above 2 V. The TPS65022 has a 7-bit address: 1001000, other addresses are available upon contact with the factory. Attempting to read data from the register addresses not listed in this section results in FFh being read out.
For normal data transfer, DATA is allowed to change only when CLK is low. Changes when CLK is high are reserved for indicating the start and stop conditions. During data transfer, the data line must remain stable whenever the clock line is high. There is one clock pulse per bit of data. Each data transfer is initiated with a start condition and terminated with a stop condition. When addressed, the TPS65022 device generates an acknowledge bit after the reception of each byte. The master device (microprocessor) must generate an extra clock pulse that is associated with the acknowledge bit. The TPS65022 device must pull down the DATA line during the acknowledge clock pulse so that the DATA line is a stable low during the high period of the acknowledge clock pulse. The DATA line is a stable low during the high period of the acknowledge–related clock pulse. Setup and hold times must be taken into account. During read operations, a master must signal the end of data to the slave by not generating an acknowledge bit on the last byte that was clocked out of the slave. In this case, the slave TPS65022 device must leave the data line high to enable the master to generate the stop condition.
VERSION | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 0 |
Read/Write | R | R | R | R | R | R | R | R |
PGOODZ | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | PWRFAILZ | LOWBATTZ | PGOODZ VDCDC1 |
PGOODZ VDCDC2 |
PGOODZ VDCDC3 |
PGOODZ LDO2 |
PGOODZ LDO1 |
|
Set by signal | PWRFAIL | LOWBATT | PGOODZ VDCDC1 |
PGOODZ VDCDC2 |
PGOODZ VDCDC3 |
PGOODZ LDO2 |
PGOODZ LDO1 |
|
Default value loaded by: | PWRFAILZ | LOWBATTZ | PGOOD VDCDC1 |
PGOOD VDCDC2 |
PGOOD VDCDC3 |
PGOOD LDO2 |
PGOOD LDO1 |
|
Read/Write | R | R | R | R | R | R | R | R |
Bit 7 | PWRFAILZ: | |
0 = | indicates that the PWRFAIL_SNS input voltage is above the 1-V threshold | |
1 = | indicates that the PWRFAIL_SNS input voltage is below the 1-V threshold | |
Bit 6 | LOWBATTZ: | |
0 = | indicates that the LOWBATT_SNS input voltage is above the 1-V threshold | |
1 = | indicates that the LOWBATT_SNS input voltage is below the 1-V threshold | |
Bit 5 | PGOODZ VDCDC1: | |
0 = | indicates that the VDCDC1 converter output voltage is within its nominal range. This bit is zero if the VDCDC1 converter is disabled. | |
1 = | indicates that the VDCDC1 converter output voltage is below its target regulation voltage | |
Bit 4 | PGOODZ VDCDC2: | |
0 = | indicates that the VDCDC2 converter output voltage is within its nominal range. This bit is zero if the VDCDC2 converter is disabled. | |
1 = | indicates that the VDCDC2 converter output voltage is below its target regulation voltage | |
Bit 3 | PGOODZ VDCDC3: . | |
0 = | indicates that the VDCDC3 converter output voltage is within its nominal range. This bit is zero if the VDCDC3 converter is disabled and during a DVM controlled output voltage transition. | |
1 = | indicates that the VDCDC3 converter output voltage is below its target regulation voltage | |
Bit 2 | PGOODZ LDO2: | |
0 = | indicates that the LDO2 output voltage is within its nominal range. This bit is zero if LDO2 is disabled. | |
1 = | indicates that LDO2 output voltage is below its target regulation voltage | |
Bit 1 | PGOODZ LDO1 | |
0 = | indicates that the LDO1 output voltage is within its nominal range. This bit is zero if LDO1 is disabled. | |
1 = | indicates that the LDO1 output voltage is below its target regulation voltage |
MASK | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | MASK PWRFAILZ |
MASK LOWBATTZ |
MASK VDCDC1 |
MASK VDCDC2 |
MASK VDCDC3 |
MASK LDO2 |
MASK LDO1 |
|
Default | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
Default value loaded by: | UVLO | UVLO | UVLO | UVLO | UVLO | UVLO | UVLO | |
Read/Write | R/W | R/W | R/W | R/W | R/W | R/W | R/W |
The MASK register can be used to mask particular fault conditions from appearing at the INT pin. MASK<n> = 1 masks PGOODZ<n>.
The REG_CTRL register is used to disable or enable the power supplies through the serial interface. The contents of the register are logically AND’ed with the enable pins to determine the state of the supplies. A UVLO condition resets the REG_CTRL to 0xFF, so the state of the supplies defaults to the state of the enable pin. The REG_CTRL bits are automatically reset to default when the corresponding enable pin is low.
REG_CTRL | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | VDCDC1 ENABLE | VDCDC2 ENABLE | VDCDC3 ENABLE | LDO2 ENABLE |
LDO1 ENABLE |
|||
Default | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Set by signal | DCDC1_ENZ | DCDC2_ENZ | DCDC3_ENZ | LDO_ENZ | LDO_ENZ | |||
Default value loaded by: | UVLO | UVLO | UVLO | UVLO | UVLO | |||
Read/Write | R/W | R/W | R/W | R/W | R/W |
Bit 5 | VDCDC1 ENABLE |
DCDC1 Enable. This bit is logically AND’ed with the state of the DCDC1_EN pin to turn on the DCDC1 converter. Reset to 1 by a UVLO condition, the bit can be written to 0 or 1 through the serial interface. The bit is reset to 1 when the pin DCDC1_EN is pulled to GND, allowing DCDC1 to turn on when DCDC1_EN returns high. | |
Bit 4 | VDCDC2 ENABLE |
DCDC2 Enable. This bit is logically AND’ed with the state of the DCDC2_EN pin to turn on the DCDC2 converter. Reset to 1 by a UVLO condition, the bit can be written to 0 or 1 through the serial interface. The bit is reset to 1 when the pin DCDC2_EN is pulled to GND, allowing DCDC2 to turn on when DCDC2_EN returns high. | |
Bit 3 | VDCDC3 ENABLE |
DCDC3 Enable. This bit is logically AND’ed with the state of the DCDC3_EN pin to turn on the DCDC3 converter. Reset to 1 by a UVLO condition, the bit can be written to 0 or 1 through the serial interface. The bit is reset to 1 when the pin DCDC3_EN is pulled to GND, allowing DCDC3 to turn on when DCDC3_EN returns high. | |
Bit 2 | LDO2 ENABLE |
LDO2 Enable. This bit is logically AND’ed with the state of the LDO2_EN pin to turn on LDO2. Reset to 1 by a UVLO condition, the bit can be written to 0 or 1 through the serial interface. The bit is reset to 1 when the pin LDO_EN is pulled to GND, allowing LDO2 to turn on when LDO_EN returns high. | |
Bit 1 | LDO1 ENABLE |
LDO1 Enable. This bit is logically AND’ed with the state of the LDO1_EN pin to turn on LDO1. Reset to 1 by a UVLO condition, the bit can be written to 0 or 1 through the serial interface. The bit is reset to 1 when the pin LDO_EN is pulled to GND, allowing LDO1 to turn on when LDO_EN returns high. |
CON_CTRL | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | DCDC2 PHASE1 |
DCDC2 PHASE0 |
DCDC3 PHASE1 |
DCDC3 PHASE0 |
LOW RIPPLE |
FPWM DCDC2 |
FPWM DCDC1 |
FPWM DCDC3 |
Default | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 |
Default value loaded by: | UVLO | UVLO | UVLO | UVLO | UVLO | UVLO | UVLO | UVLO |
Read/Write | R/W | R/W | R/W | R/W | R/W | R/W | R/W | R/W |
The CON_CTRL register is used to force any or all of the converters into forced PWM operation, when low output voltage ripple is vital. It is also used to control the phase shift between the three converters in order to minimize the input rms current, hence reduce the required input blocking capacitance. The DCDC1 converter is taken as the reference and consequently has a fixed zero phase shift.
CON_CTRL<7:6> | DCDC2 CONVERTER DELAYED BY |
CON_CTRL<5:4> | DCDC3 CONVERTER DELAYED BY |
|
---|---|---|---|---|
00 | zero | 00 | zero | |
01 | 1/4 cycle | 01 | 1/4 cycle | |
10 | 1/2 cycle | 10 | 1/2 cycle | |
11 | 3/4 cycle | 11 | 3/4 cycle |
Bit 3 | LOW RIPPLE: | |
0 = | PFM mode operation optimized for high efficiency for all converters | |
1 = | PFM mode operation optimized for low output voltage ripple for all converters | |
Bit 2 | FPWM DCDC2: | |
0 = | DCDC2 converter operates in PWM / PFM mode | |
1 = | DCDC2 converter is forced into fixed frequency PWM mode | |
Bit 1 | FPWM DCDC1: | |
0 = | DCDC1 converter operates in PWM / PFM mode | |
1 = | DCDC1 converter is forced into fixed frequency PWM mode | |
Bit 0 | FPWM DCDC3: | |
0 = | DCDC3 converter operates in PWM / PFM mode | |
1 = | DCDC3 converter is forced into fixed frequency PWM mode |
CON_CTRL2 | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | GO | Core adj allowed |
DCDC2 discharge |
DCDC1 discharge |
DCDC3 discharge |
|||
Default | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
Default value loaded by: | UVLO + DONE |
RESET(1) | UVLO | UVLO | UVLO | |||
Read/Write | R/W | R/W | R/W | R/W | R/W |
The CON_CTRL2 register can be used to take control the inductive converters.
RESET(1): CON_CTRL2[6] is reset to its default value by one of these events:
Bit 7 | GO: | |
0 = | no change in the output voltage for the DCDC3 converter | |
1 = | the output voltage of the DCDC3 converter is changed to the value defined in DEFCORE with the slew rate defined in DEFSLEW. This bit is automatically cleared when the DVM transition is complete. The transition is considered complete in this case when the desired output voltage code has been reached, not when the VDCDC3 output voltage is actually in regulation at the desired voltage. | |
Bit 6 | CORE ADJ Allowed: | |
0 = | the output voltage is set with the I2C register | |
1 = | DEFDCDC3 is either connected to GND or VCC or an external voltage divider. When connected to GND or VCC, VDCDC3 defaults to 1.3 V or 1.55 V respectively at start-up. | |
Bit 2– 0 | 0 = | the output capacitor of the associated converter is not actively discharged when the converter is disabled |
1 = | the output capacitor of the associated converter is actively discharged when the converter is disabled. This decreases the fall time of the output voltage at light load. |
DEFCORE | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | CORE4 | CORE3 | CORE2 | CORE1 | CORE0 | |||
Default | 0 | 0 | 0 | 1 | DEFDCDC3 | 1 | DEFDCDC3 | 0 |
Default value loaded by: | RESET(2) | RESET(1) | RESET(1) | RESET(1) | RESET(2) | |||
Read/Write | R/W | R/W | R/W | R/W | R/W |
RESET(1): DEFCORE[3:1] are reset to the default value by one of these events:
RESET(2): DEFCORE[4] and DEFCORE[0] are reset to the default value by one of these events:
CORE4 | CORE3 | CORE2 | CORE1 | CORE0 | VDCDC3 | CORE4 | CORE3 | CORE2 | CORE1 | CORE0 | VDCDC3 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 0 | 0 | 0 | 0 | 0.8 V | 1 | 0 | 0 | 0 | 0 | 1.2 V | |
0 | 0 | 0 | 0 | 1 | 0.825 V | 1 | 0 | 0 | 0 | 1 | 1.225 V | |
0 | 0 | 0 | 1 | 0 | 0.85 V | 1 | 0 | 0 | 1 | 0 | 1.25 V | |
0 | 0 | 0 | 1 | 1 | 0.875 V | 1 | 0 | 0 | 1 | 1 | 1.275 V | |
0 | 0 | 1 | 0 | 0 | 0.9 V | 1 | 0 | 1 | 0 | 0 | 1.3 V | |
0 | 0 | 1 | 0 | 1 | 0.925 V | 1 | 0 | 1 | 0 | 1 | 1.325 V | |
0 | 0 | 1 | 1 | 0 | 0.95 V | 1 | 0 | 1 | 1 | 0 | 1.35 V | |
0 | 0 | 1 | 1 | 1 | 0.975 V | 1 | 0 | 1 | 1 | 1 | 1.375 V | |
0 | 1 | 0 | 0 | 0 | 1 V | 1 | 1 | 0 | 0 | 0 | 1.4 V | |
0 | 1 | 0 | 0 | 1 | 1.025 V | 1 | 1 | 0 | 0 | 1 | 1.425 V | |
0 | 1 | 0 | 1 | 0 | 1.05 V | 1 | 1 | 0 | 1 | 0 | 1.45 V | |
0 | 1 | 0 | 1 | 1 | 1.075 V | 1 | 1 | 0 | 1 | 1 | 1.475 V | |
0 | 1 | 1 | 0 | 0 | 1.1 V | 1 | 1 | 1 | 0 | 0 | 1.5 V | |
0 | 1 | 1 | 0 | 1 | 1.125 V | 1 | 1 | 1 | 0 | 1 | 1.525 V | |
0 | 1 | 1 | 1 | 0 | 1.15 V | 1 | 1 | 1 | 1 | 0 | 1.55 V | |
0 | 1 | 1 | 1 | 1 | 1.175 V | 1 | 1 | 1 | 1 | 1 | 1.6 V |
DEFSLEW | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | SLEW2 | SLEW1 | SLEW0 | |||||
Default | 1 | 1 | 0 | |||||
Default value loaded by: | UVLO | UVLO | UVLO | |||||
Read/Write | R/W | R/W | R/W |
SLEW2 | SLEW1 | SLEW0 | VDCDC3 SLEW RATE |
---|---|---|---|
0 | 0 | 0 | 0.15 mV/μs |
0 | 0 | 1 | 0.3 mV/μs |
0 | 1 | 0 | 0.6 mV/μs |
0 | 1 | 1 | 1.2 mV/μs |
1 | 0 | 0 | 2.4 mV/μs |
1 | 0 | 1 | 4.8 mV/μs |
1 | 1 | 0 | 9.6 mV/μs |
1 | 1 | 1 | Immediate |
LDO_CTRL | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 |
---|---|---|---|---|---|---|---|---|
Bit name and function | LDO2_2 | LDO2_1 | LDO2_0 | LDO1_2 | LDO1_1 | LDO1_0 | ||
Default | DEFLDOx | DEFLDOx | DEFLDOx | DEFLDOx | DEFLDOx | DEFLDOx | ||
Default value loaded by: | UVLO | UVLO | UVLO | UVLO | UVLO | UVLO | ||
Read/Write | R/W | R/W | R/W | R/W | R/W | R/W |
The LDO_CTRL registers can be used to set the output voltage of LDO1 and LDO2.
The default voltage is set with DEFLDO1 and DEFLDO2 pins as described in Table 3.
LDO1_2 | LDO1_1 | LDO1_0 | LDO1 OUTPUT VOLTAGE |
LDO2_2 | LDO2_1 | LDO2_0 | LDO2 OUTPUT VOLTAGE |
|
---|---|---|---|---|---|---|---|---|
0 | 0 | 0 | 1 V | 0 | 0 | 0 | 1.05 V | |
0 | 0 | 1 | 1.1 V | 0 | 0 | 1 | 1.2 V | |
0 | 1 | 0 | 1.35 V | 0 | 1 | 0 | 1.3 V | |
0 | 1 | 1 | 1.5 V | 0 | 1 | 1 | 1.8 V | |
1 | 0 | 0 | 2.2 V | 1 | 0 | 0 | 2.5 V | |
1 | 0 | 1 | 2.6 V | 1 | 0 | 1 | 2.8 V | |
1 | 1 | 0 | 2.85 V | 1 | 1 | 0 | 3 V | |
1 | 1 | 1 | 3.15 V | 1 | 1 | 1 | 3.3 V |
NOTE
Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.
The low power section of the control circuit for the step-down converters DCDC1, DCDC2 and DCDC3 is supplied by the VCC pin while the circuitry with high power such as the power stage is powered from the VINDCDC1, VINDCDC2, and VINDCDC3 pins. For proper operation of the step-down converters, VINDCDC1, VINDCDC2, VNDCDC3, and Vcc need to be tied to the same voltage rail. Step-down converters that are planned to be not used, still need to be powered from their input pin on the same rails than the other step-down converters and VCC.
LDO1 and LDO2 share a supply voltage pin which can be powered from the VCC rails or from a voltage lower than VCC, for example, the output of one of the step-down converters as long as it is operated within the input voltage range of the LDOs. If both LDOs are not used, the VINLDO pin can be tied to GND.
If a step-down converter is not used, the input supply voltage pin VINDCDCx must connect to the VCC rail along with supply input of the other step-down converters. TI recommends closing the control loop such that an inductor and output capacitor is added in the same way when operated normally. If one of the LDOs is not used, its output capacitor should be added as well. If both LDOs are not used, the input supply pin and the output pins of the LDOs (VINLDO, VLDO1, VLDO2) should be tied to GND.
The TPS65022 device has only a few design requirements. Use the following parameters for the design example:
Each of the converters in the TPS65022 typically use a 3.3 μH output inductor. Larger or smaller inductor values are used to optimize the performance of the device for specific operation conditions. The selected inductor has to be rated for its DC resistance and saturation current. The DC resistance of the inductance influences directly the efficiency of the converter. Therefore, an inductor with lowest DC resistance should be selected for highest efficiency.
For a fast transient response, a 2.2-μH inductor in combination with a 22-μF output capacitor is recommended.
Equation 4 calculates the maximum inductor current under static load conditions. The saturation current of the inductor should be rated higher than the maximum inductor current as calculated with Equation 4. This is needed because during heavy load transient the inductor current rises above the value calculated under Equation 4.
where
The highest inductor current occurs at maximum VIN.
Open core inductors have a soft saturation characteristic, and they can usually handle higher inductor currents versus a comparable shielded inductor.
A more conservative approach is to select the inductor current rating just for the maximum switch current of the TPS65022 (2 A for the VDCDC1 and VDCDC2 converters, and 1.5 A for the VDCDC3 converter). The core material from inductor to inductor differs and has an impact on the efficiency especially at high switching frequencies.
See Table 17 and the typical applications for possible inductors.
DEVICE | INDUCTOR VALUE | TYPE | COMPONENT SUPPLIER |
---|---|---|---|
DCDC3 converter | 3.3 μH | CDRH2D14NP-3R3 | Sumida |
3.3 μH | LPS3010-332 | Coilcraft | |
3.3 μH | VLF4012AT-3R3M1R3 | TDK | |
2.2 μH | VLF4012AT-2R2M1R5 | TDK | |
DCDC2 converter | 3.3 μH | CDRH2D18/HPNP-3R3 | Sumida |
3.3 μH | VLF4012AT-3R3M1R3 | TDK | |
2.2 μH | VLCF4020-2R2 | TDK | |
DCDC1 converter | 3.3 μH | CDRH3D14/HPNP-3R2 | Sumida |
3.3 μH | CDRH4D28C-3R2 | Sumida | |
3.3 μH | MSS5131-332 | Coilcraft | |
2.2 μH | VLCF4020-2R2 | TDK |
The advanced Fast Response voltage mode control scheme of the inductive converters implemented in the TPS65022 allow the use of small ceramic capacitors with a typical value of 10 μF for each converter without having large output voltage under and overshoots during heavy load transients. Ceramic capacitors having low ESR values have the lowest output voltage ripple and are recommended. See Table 18 for recommended components.
If ceramic output capacitors are used, the capacitor RMS ripple current rating always meets the application requirements. The RMS ripple current is calculated as:
At nominal load current, the inductive converters operate in PWM mode. The overall output voltage ripple is the sum of the voltage spike caused by the output capacitor ESR plus the voltage ripple caused by charging and discharging the output capacitor:
Where the highest output voltage ripple occurs at the highest input voltage Vin.
At light load currents, the converters operate in PSM and the output voltage ripple is dependent on the output capacitor value. The output voltage ripple is set by the internal comparator delay and the external capacitor. The typical output voltage ripple is less than 1% of the nominal output voltage.
Because of the nature of the buck converter having a pulsating input current, a low ESR input capacitor is required for best input voltage filtering and minimizing the interference with other circuits caused by high input voltage spikes. Each DC-DC converter requires a 10-μF ceramic input capacitor on its input pin VINDCDCx. The input capacitor is increased without any limit for better input voltage filtering. The VCC pin is separated from the input for the DC-DC converters. A filter resistor of up to 10R and a 1-μF capacitor is used for decoupling the VCC pin from switching noise. Note that the filter resistor may affect the UVLO threshold since up to 3 mA can flow through this resistor into the VCC pin when all converters are running in PWM mode.
CAPACITOR VALUE | CASE SIZE | COMPONENT SUPPLIER | COMMENTS |
---|---|---|---|
22 μF | 1206 | TDK C3216X5R0J226M | Ceramic |
22 μF | 1206 | Taiyo Yuden JMK316BJ226ML | Ceramic |
22 μF | 0805 | TDK C2012X5R0J226MT | Ceramic |
22μF | 0805 | Taiyo Yuden JMK212BJ226MG | Ceramic |
10 μF | 0805 | Taiyo Yuden JMK212BJ106M | Ceramic |
10 μF | 0805 | TDK C2012X5R0J106M | Ceramic |
The DEFDCDC1, DEFDCDC2, and DEFDCDC3 pins are used to set the output voltage for each step-down converter. See Table 19 for the default voltages if the pins are pulled to GND or to VCC. If a different voltage is needed, an external resistor divider can be added to the DEFDCDCx pin as shown in Figure 36.
The output voltage of VDCDC3 is set with the I2C interface. If the voltage is changed from the default, using the DEFCORE register, the output voltage only depends on the register value. Any resistor divider at DEFDCDC3 does not change the voltage set with the register.
PIN | LEVEL | DEFAULT OUTPUT VOLTAGE |
---|---|---|
DEFDCDC1 | VCC | 3.3 V |
GND | 3 V | |
DEFDCDC2 | VCC | 2.5 V |
GND | 1.8 V | |
DEFDCDC3 | VCC | 1.55 V |
GND | 1.3 V |
Using an external resistor divider at DEFDCDCx:
When a resistor divider is connected to DEFDCDCx, the output voltage can be set from 0.6 V up to the input voltage V(bat). The total resistance (R1 + R2) of the voltage divider should be kept in the 1-MR range in order to maintain a high efficiency at light load.
V(DEFDCDCx) = 0.6 V
The VRTC output is typically connected to the Vcc_Batt pin of a Intel® PXA270 processor. During power-up of the processor, the TPS65022 internally switches from the LDO or the backup battery to the system voltage connected at the VSYSIN pin (see Figure 28).It is required that a 4.7-μF (minimum) capacitor be added to the VRTC pin even if the output is not used.
The LDOs in the TPS65022 are general-purpose LDOs which are stable using ceramics capacitors. The minimum output capacitor required is 2.2 μF. The LDOs output voltage can be changed to different voltages between 1 V and 3.3 V using the I2C interface. Therefore, they can also be used as general-purpose LDOs in applications powering processors different from PXA270. The supply voltage for the LDOs must connect to the VINLDO pin, giving the flexibility to connect the lowest voltage available in the system and provides the highest efficiency.
This is the input to a capacitor that defines the reset delay time after the voltage at VRTC rises above 2.52 V. The timing is generated by charging and discharging the capacitor with a current of 2 μA between a threshold of 0.25 V and 1 V for 128 cycles. A 1-nF capacitor gives a delay time of 100 ms.
While there is no real upper and lower limit for the capacitor connected to TRESPWRON, do not leave signal pins open.
where
The minimum and maximum values for the timing parameters called ICONST (2 µA), TRESPWRON_UPTH (1 V) and TRESPWRON_LOWTH (0.25 V) can be found under the electrical characteristics.
An RC filter connected at the VCC input is used to keep noise from the internal supply for the bandgap and other analog circuitry. A typical value of 10 R and 1 μF is used to filter the switching spikes, generated by the DC-DC converters. A larger resistor than 10 R should not be used because the current into VCC of up to 3 mA causes a voltage drop at the resistor causing the undervoltage lockout circuitry connected at VCC internally to switch off too early.
