12 Layout

12.1 Layout Guidelines

The layout guidelines are listed as follows.

  • PBKG die substrate must connect to VN (–16 V) with short, wide trace. Wide copper trace improves heat dissipation.
  • The PowerPAD is internally connected to PBKG and must be connected to ground, but connected to VN with a short, wide copper trace.
  • Inductor traces must be kept on the PCB top layer free of any vias.
  • Feedback traces must be routed away from any potential noise source to avoid coupling.
  • Output caps must be placed immediately at output pin.
  • VIN pins must be bypassed to ground with low-ESR ceramic bypass capacitors.

12.2 Layout Example

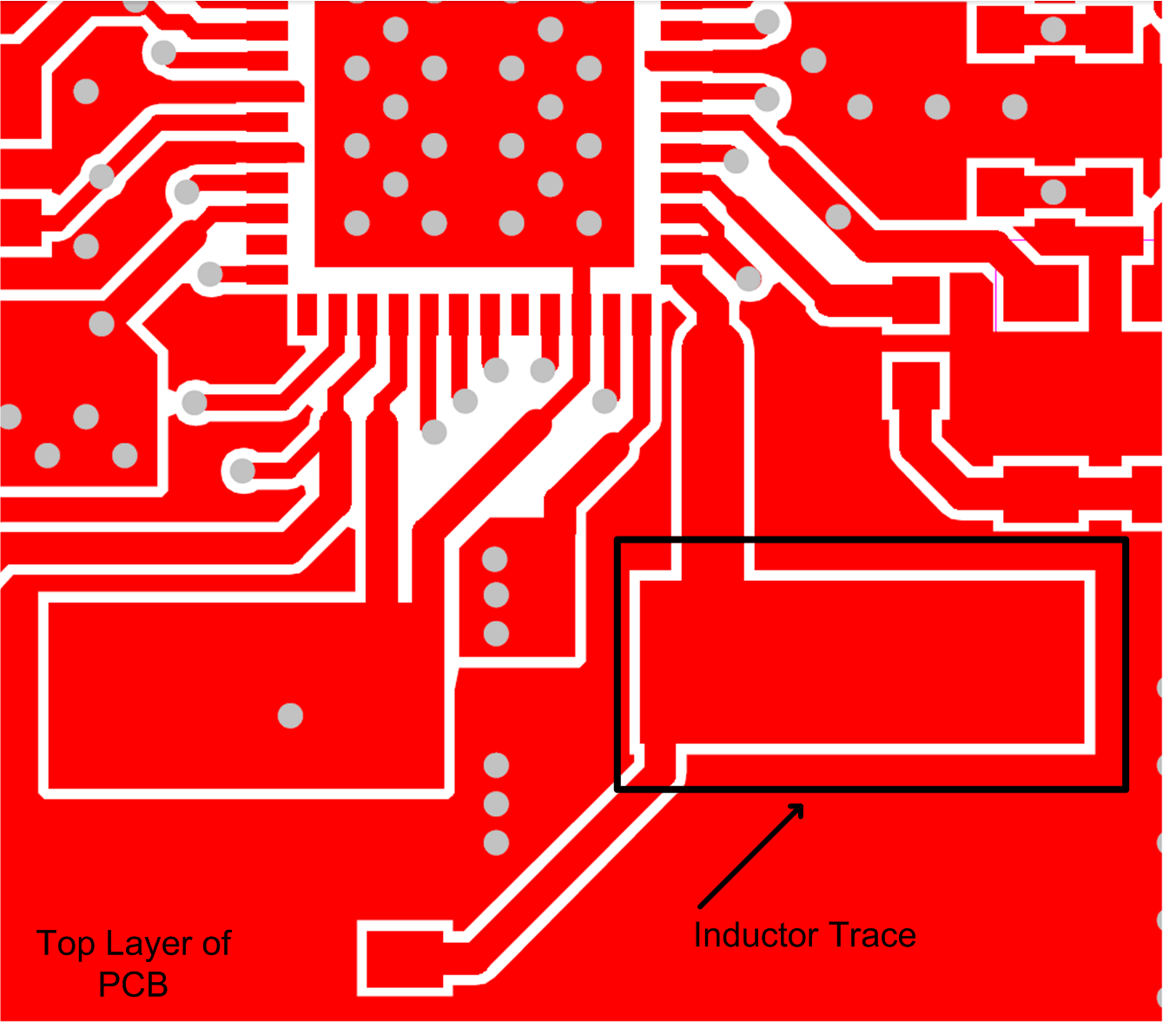

TPS65180 TPS65181 TPS65180B TPS65181B Layout_ex_SLVSA76_2.gif Figure 17. Layout Top Layer

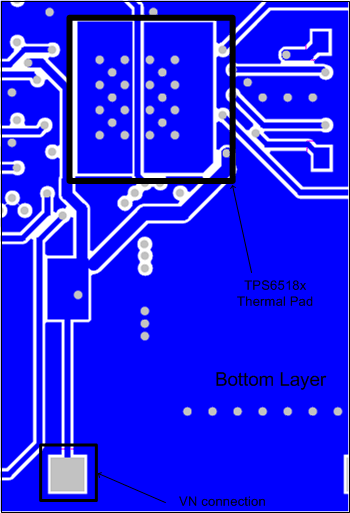

TPS65180 TPS65181 TPS65180B TPS65181B Layout_ex_SLVSA76.gif Figure 18. Layout Bottom Layer
