10 Layout

10.1 Layout Guidelines

The layout guidelines for TPS65182x are as follows:

  • PBKG (Die substrate must connect to VN (–16 V) with short, wide trace. Wide copper trace will improve heat dissipation.
  • Power pad is internally connected to PBKG and must be connected to ground, but connected to VN with a short wide copper trace.
  • Inductor traces must be kept on the PCB top layer free of any vias.
  • Feedback traces must be routed away from any potential noise source to avoid coupling.
  • Output caps must be placed immediately at output pin.
  • VIN pins must be bypassed to ground with low ESR ceramic bypass capacitors.

10.2 Layout Example

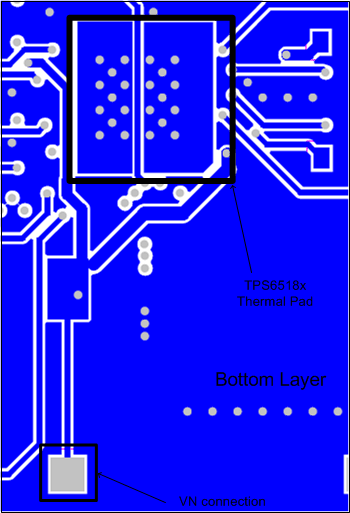

TPS65182 TPS65182B Layout_ex_SLVSA76.gif Figure 14. Typical Layout of TPS6518x
