4 Terminal Configuration and Functions

Figure 4-1 shows the pin assignments.

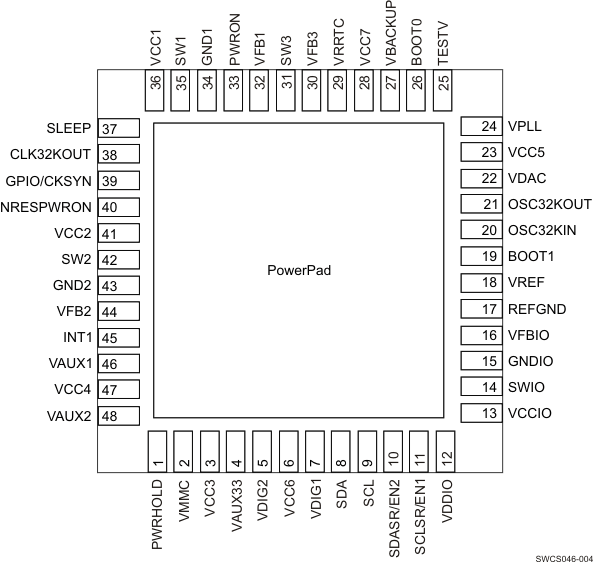

SWCS046-004.gifFigure 4-1 48-QFN Top-View Pin Assignment

4.1 Signal Descriptions

Table 4-1 Signal Descriptions

NAME QFN PIN SUPPLIES TYPE I/O DESCRIPTION PU/PD
VDDIO VDDIO/DGND Power I Digital I/Os supply No
SDA_SDI VDDIO/DGND Digital I/O I2C bidirectional data signal/serial peripheral interface data input (multiplexed) External PU
SCL_SCK VDDIO/DGND Digital I/O I2C bidirectional clock signal/serial peripheral interface Clock Input (multiplexed) External PU
SDASR_EN2 VDDIO/DGND Digital I/O I2C SmartReflex bidirectional data signal/enable of supplies (multiplexed) External PU
SCLSR_EN1 VDDIO/DGND Digital I/O I2C SmartReflex bidirectional clock signal/enable of supplies (multiplexed) External PU
SLEEP VDDIO/DGND Digital I Active-sleep state transition control signal Programmable PD
(default active)
GPIO_CKSYNC VDDIO/DGND Digital I/O Configurable general-purpose I/O or DC-DCs synchronization clock input signal Programmable PD
(default active)
PWRHOLD VRTC/DGND Digital I Switch-on/-off control signal Programmable PD
(default active)
PWRON VBAT/DGND Digital I External switch-on control (ON button) Programmable PU
(default active)
NRESPWRON VDDIO/DGND Digital O Power off reset PD active during device OFF state
INT1 VDDIO/DGND Digital O Interrupt flag No
BOOT0 VRTC/DGND Digital I Power-up sequence selection Programmable PD
(default active)
BOOT1 VRTC/DGND Digital I Power-up sequence selection Programmable PD
(default active)
CLK32KOUT VDDIO/DGND Digital O 32-kHz clock output PD disable in ACTIVE or SLEEP state
OSC32KIN VRTC/REFGND Analog I 32-kHz crystal oscillator No
OSC32KOUT VRTC/REFGND Analog I 32-kHz crystal oscillator No
VREF VCC7/REFGND Analog O Bandgap voltage No
REFGND REFGND Analog I/O Reference ground No
TESTV VCC7/AGND Analog O Analog test output (DFT) No
VBACKUP VBACKUP/AGND Power I Backup battery input (short to VCC5 if not used) No
VCC1 VCC1/GND1 Power I VDD1 DC-DC power input No
GND1 VCC1/GND1 Power I/O VDD1 DC-DC power ground No
SW1 VCC1/GND1 Power O VDD1 DC-DC switched output No
VFB1 VCC7/AGND Analog I VDD1 feedback voltage PD
VCC2 VCC2/GND2 Power I VDD2 DC-DC power input No
GND2 VCC2/GND2 Power I/O VDD2 DC-DC power ground No
SW2 VCC2/GND2 Power O VDD2 DC-DC switched output No
VFB2 VCC4/AGND2 Analog I VDD2 DC-DC feedback voltage PD
VCCIO VCCIO/GNDIO Power I VIO DC-DC power input No
GNDIO VCCIO/GNDIO Power I/O VIO DC-DC power ground No
SWIO VCCIO/GNDIO Power O VIO DC-DC switched output No
VFBIO VCC7/AGND Analog I VIO feedback voltage PD
VCC3 VCC3/AGND2 Power I VMMC VAUX33 power input No
VMMC VCC3/REFGND Power O LDO regulator output PD
VAUX33 VCC3/REFGND Power O LDO regulator output, VDD3 internal regulated supply PD
VCC4 VCC4/AGND2 Power I VAUX1, VAUX2 power input No
VAUX1 VCC4/REFGND Power O LDO regulator output PD
VAUX2 VCC4/REFGND Power O LDO regulator output PD
VCC5 VCC5/AGND Power I VDAC, VPLL power input No
VDAC VCC5/REFGND Power O LDO regulator output PD
VPLL VCC5/REFGND Power O LDO regulator output PD
VRTC VCC7/REFGND Power O LDO regulator output PD
VCC6 VCC6/AGND2 Power I VDIG1, VDIG2 power input No
VDIG1 VCC6/REFGND Power O LDO regulator output No
VDIG2 VCC6/REFGND Power O LDO regulator output No
VCC7 VCC7/REFGND Power I VRTC power input, VDD3 internal and analog references supply No
VFB3 VCC7/AGND Analog I VDD3 feedback voltage No
SW3 VCC7/GND3 Power O VDD3 DC-DC switched output No
GND3 Power PAD AGND Power I/O VDD3 DC-DC power ground No
AGND Power PAD AGND Power I/O Analog ground No
AGND2 Power PAD AGND Power I/O Analog ground No
DGND Power PAD DGND Power I/O Digital ground No
