5.21.3.3 Device Turnon and Turnoff With Rising and Falling Input Voltage

TPS65911 SWCS049-008.gif
A. To allow power-up from first supply insertion as shown here, VMBHI_IT_MSK is set to 0.
B. Power-up to active state is enabled when VMBHI interrupt is not masked (VMBHI_IT_MSK in boot configuration).
C. The DEV_ON or AUTODEV_ON control bits can be used instead of the PWRHOLD signal to maintain supplies on after a switch-on sequence.

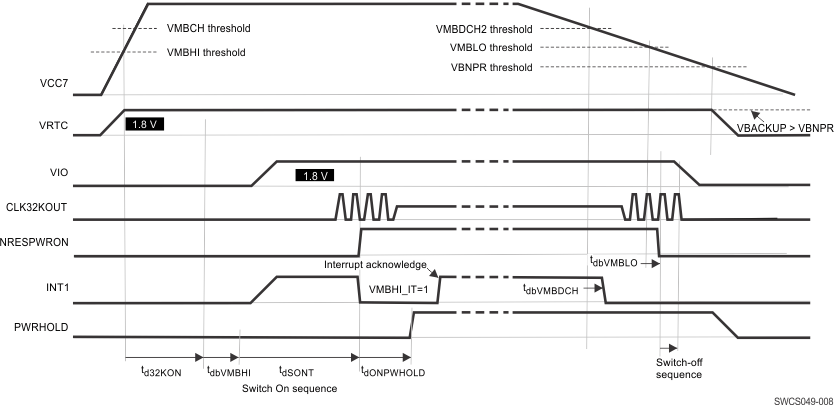

Figure 5-5 Device Turnon and Turnoff With Rising and Falling Input Voltage

Table 5-6 Device Turnon Voltage With Rising Input Voltage, Timing Characteristics

MIN NOM MAX UNIT
td32KON 32-kHz oscillator turnon time RC oscillator 0.1 ms
Quartz oscillator 200
Bypass clock 0.1
tdbVMBHI VMBHI rising-edge debouncing delay 3 × tCK32k = 94 4 × tCK32k = 125 µs
tdOINT1 INT1 power on pulse duration after VMBHI high level (debounced) event 1 s
tdONPWHOLD Delay to set high PWRHOLD signal or DEV_ON control bit after NRESPWRON released in order to keep on the supplies tdOINT1 – tDSONT = 970 ms
tdbVMBDCH Main battery voltage = VMBDCH threshold to INT1 falling-edge delay 3 × tCK32k = 94 4 × tCK32k = 125 s
tdbVMBLO Main battery voltage = VMBLO threshold to NRESPWRON falling-edge delay 3 × tCK32k = 94 4 × tCK32k = 125 s
