5.21.3.4 Power Supplies State Control Through EN1 and EN2 Signals

TPS65911 SWCS049-009.gif

NOTE:

Register setting: LDO1_EN1 = 1, LDO4_EN2 = 1, and LDO4_KEEPON = 1.
Figure 5-6 LDO Type Supplies State Control Through EN1 and EN2
TPS65911 SWCS049-010.gif

NOTE:

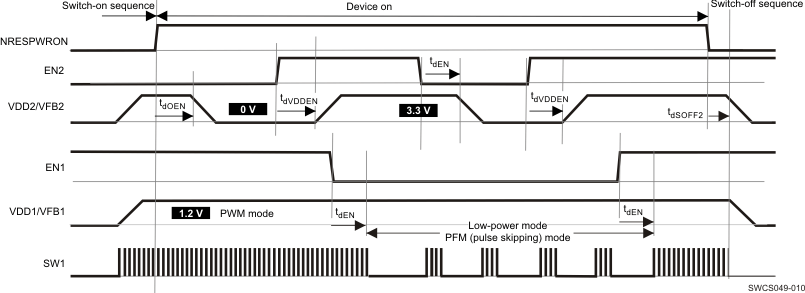

Register setting: VDD2_EN2 = 1, VDD1_EN1 = 1, VDD1_KEEPON = 1, VDD1_PSKIP = 0, and SEL[6:0] = hex00 in VDD2_SR_REG.
Figure 5-7 VDD1 and VDD2 Supplies State Control Through EN1 and EN2

Table 5-7 Supplies State Control Through EN1 and EN2 Timing Characteristics

MIN NOM MAX UNIT
tdEN NRESPWRON to supply state change delay, EN1 or EN2 driven 0 ms
tdOEN EN1 or EN2 edge to supply state change delay 1 × tCK32k = 31 µs
tdVDDEN EN1 or EN2 edge to VDD1 or VDD2 DCDC turnon delay 3 × tCK32k = 63 µs
