5.21.3.5 VDD1, VDD2 Voltage Control Through EN1 and EN2 Signals

TPS65911 SWCS049-011.gif

NOTE:

Register setting: VDD1_EN1 = 1, SEL[6:0] = hex13 in VDD1_SR_REG

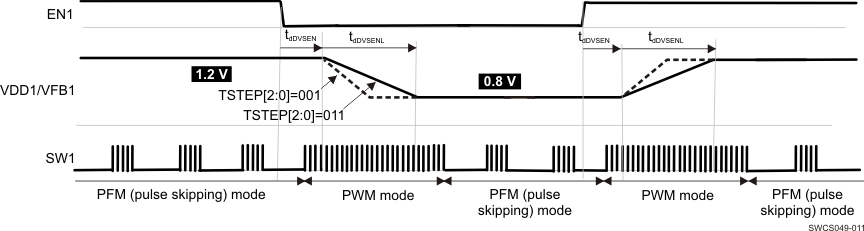

Figure 5-8 VDD1 Supply Voltage Control Through EN1

Table 5-8 VDD1 Supply Voltage Control Through EN1 Timing Characteristics

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tdDVSEN EN1 (or EN2) edge to VDD1 (or VDD2) voltage change delay 2 × tCK32k = 62 µs
tdDVSENL VDD1 (or VDD2) voltage settling delay TSTEP[2:0] = 001 32 µs
TSTEP[2:0] = 011 (default) 0.4 / 7.5 = 53
TSTEP[2:0] = 111 160
