6.12.1.1 Single Byte Access

A write access is initiated by a first byte including the address of the device (7 MSBs) and a write command (LSB), a second byte provides the address (8 bits) of the internal register, and the third byte represents the data to be written in the internal register, see Figure 6-7.

A read access is initiated by:

  • A first byte, including the address of the device (7 MSBs) and a write command (LSB)
  • A second byte, providing the address (8 bits) of the internal register
  • A third byte, including again the device address (7 MSBs) and the read command (LSB)

The device replies by sending a fourth byte representing the content of the internal register (see
Figure 6-8).

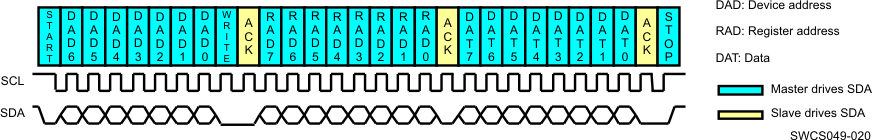

TPS65911 SWCS049-020.gifFigure 6-7 I2C Write Access Single Byte

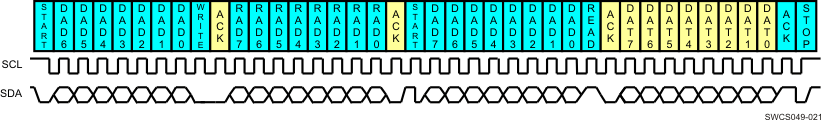

TPS65911 SWCS049-021.gifFigure 6-8 I2C Read Access Single Byte
