3 Terminal Configuration and Functions

3.1 Pin Diagram

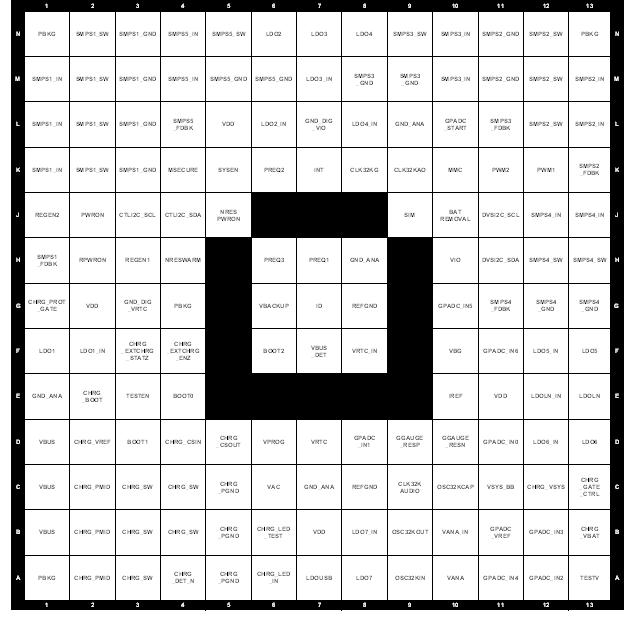

Figure 3-1 shows the TPS80032 device bottom view ball mapping.

ballout.gifFigure 3-1 Bottom View Ball Mapping

3.2 Pin Attributes

Pin Attributes

NAME BALL TYPE I/O DESCRIPTION CONNECTION IF NOT USED PULLUP / PULLDOWN
System Supply Regulator/Battery Charger
CHRG_BOOT E2 Analog O Switched-mode regulator boot-strapped capacitor for the high-side MOSFET gate driver Floating –
CHRG_CSIN D4 Analog I Switched-mode regulator current-sense input (without power path) Ground –
CHRG_CSOUT D5 Analog I Switched regulator auxiliary power supply, connected to the system supply/battery to provide power in high-impedance mode, switched regulator system/battery voltage/current sense input System supply –
CHRG_DET_N A4 Analog I USB charging port detection signal from USB PHY Ground –
CHRG_EXTCHRG_ENZ F4 Digital O Output control signal to an external VAC charger (default high) Floating –
CHRG_EXTCHRG_STATZ F3 Digital I External VAC charger status input pin Floating PU
70 to 190 kΩ
CHRG_LED_IN A6 Power I Input supply for LED indicator Ground –
CHRG_LED_TEST B6 Analog I/O External LED driver output Ground –
CHRG_PGND A5, B5, C5 Ground I Switched regulator power ground Ground –
CHRG_PMID A2, B2, C2 Analog O Switched regulator connection point between reverse blocking MOSFET and high-side switching MOSFET Floating –
CHRG_SW A3, B3, C3, B4, C4 Power O Switched regulator output for inductor connection Floating –
CHRG_VREF D2 Analog O Switched regulator internal bias regulator voltage Floating –
VAC C6 Power I VAC charger input sense line Ground –
VBUS B1, C1, D1 Power I/O VBUS input, USB system supply/battery charger power supply Ground (must be connected to VBUS if VBUS detection from PMIC is needed; for example, USB boot up) –
CHRG_VSYS C12 Power I System supply System supply –
CHRG_VBAT B13 Power I/O Battery voltage for battery charging System supply –
VBUS_DET F7 Digital O VBUS detection signal (VSYS level) Floating –
CHRG_GATE_CTRL C13 Analog O Control signal for gate of external PMOS (battery switch) Floating –
CHRG_PROT_GATE G1 Analog O Control signal for gate of external PMOS to protect against negative input voltage (optional) Floating –
Power Supplies
GND_ANA C7, E1, H8, L9 Ground I Analog power ground Ground –
GND_DIG_VIO L7 Ground I VIO digital ground Ground –
GND_DIG_VRTC G3 Ground I VRTC digital ground Ground –
PBKG A1, G4, N1, N13 Substrate I Substrate ground Ground –
VDD B7, E11, G2, L5 Power I Analog input voltage supply System supply –
VIO H10 Power I The PMIC digital I/O input supply voltage (1.8 V) N/A –
VPROG D6 Power I OTP memory programming voltage Ground –
VBACKUP G6 Analog I Backup battery connection Ground –
VSYS_BB C11 Power I Sense line for system supply System supply –
Clocking
CLK32KAO K9 Digital O 32-kHz digital output clock always on when VIO input supply is present Floating –
CLK32KAUDIO C9 Digital O 32-kHz digital gated output clock (for example, for audio device) Floating –
CLK32KG K8 Digital O 32-kHz digital gated output clock controlled by software Floating –
OSC32KCAP C10 Analog O VRTC power supply external filtering capacitor for the 32-kHz crystal oscillator Floating –
OSC32KIN A9 Analog I 32-kHz crystal oscillator input or digital clock input N/A –
OSC32KOUT B9 Analog O 32-kHz crystal oscillator output or floating in case of digital clock input N/A or floating –
References
IREF E10 Analog I/O Reference current generation N/A –
REFGND C8, G8 Ground I System reference ground Ground –
VBG F10 Analog O Band-gap output reference voltage N/A –
Testing
TESTEN E3 Digital I Test mode enable Ground PD
170 to 950 kΩ
TESTV A13 Analog O Internal voltages sense line Floating –
System Control
CTLI2C_SCL J3 Digital I Control I2C serial clock (external pullup) N/A PPU
1.46 to 7.4 kΩ
CTLI2C_SDA J4 Digital I/O Control I2C serial bidirectional data (an external pullup) N/A PPU
1.46 to 7.4 kΩ
INT K7 Digital O Maskable interrupt request to the host processor N/A –
BATREMOVAL J10 Digital O Battery removal indicator Floating –
BOOT0 E4 Digital I Boot ball 0 for power-up sequence selection Ground or VRTC –
BOOT1 D3 Digital I Boot ball 1 for power-up sequence selection Ground or VRTC –
BOOT2 F6 Digital I Boot ball 2 for power-up sequence selection Ground or VRTC –
NRESPWRON J5 Digital O System reset/power-on output Floating –
NRESWARM H4 Digital I Warm reset input Floating PU
70 to 190 kΩ
PREQ1 H7 Digital I Power request input 1 Floating PPU/*PPD
170 to 950 kΩ
PREQ2 K6 Digital I Power request input 2 Floating PPU/*PPD
170 to 950 kΩ
PREQ3 H6 Digital I Power request input 3 Floating PPU/*PPD
170 to 950 kΩ
PWM1 K12 Digital O Pulse width modulation/general-purpose output 1 Floating –
PWM2 K11 Digital O Pulse width modulation/general-purpose output 2 Floating –
PWRON J2 Digital I External on-button switch-on event (primary input to launch system wakeup) N/A PU
55 to 370 kΩ
REGEN1 H3 Digital O External regulator enable 1 Floating –
REGEN2 J1 Digital O External regulator enable 2 Floating –
RPWRON H2 Digital I External remote switch-on event (secondary input to launch system wakeup) Floating PU
55 to 370 kΩ
SYSEN K5 Digital O External system enable Floating –
MSECURE K4 Digital I Secure mode input. Allows I2C access to secure registers Ground or floating PD
170 to 950 kΩ
DVSI2C_SCL J11 Digital I DVS I2C serial clock (external pullup) N/A PPU
1.46 to 7.4 kΩ
DVSI2C_SDA H11 Analog I/O DVS I2C serial data (external pullup) N/A PPU
1.46 to 7.4 kΩ
Detection
ID G7 Digital I/O USB connector identification signal Floating –
MMC K10 Digital I MMC card insertion and extraction detection to deactivate the LDO5 regulator Floating PPU/*PPD
70 to 190 kΩ
SIM J9 Power I SIM card insertion and extraction detection to deactivate the LDO7 regulator Floating PPU/*PPD
70 to 190 kΩ
LDO Regulators
VANA A10 Power O Output voltage for VANA regulator N/A –
VANA_IN B10 Power I Input voltage supply for VANA regulator System supply –
LDO2 N6 Power O Output voltage for LDO2 regulator Floating –
LDO2_IN L6 Power I Input voltage supply for LDO2 regulator System supply –
LDO4 N8 Power O Output voltage for LDO4 regulator Floating –
LDO4_IN L8 Power I Input voltage supply for LDO4 regulator System supply –
LDO3 N7 Power O Output voltage for LDO3 regulator (vibrator driver output) Floating –
LDO3_IN M7 Power I Input voltage supply for LDO3 regulator System supply –
LDO6 D13 Power O Output voltage for LDO6 regulator Floating –
LDO6_IN D12 Power I Input voltage supply for LDO6 regulator System supply –
LDOLN E13 Power O Output voltage for LDOLN regulator Floating –
LDOLN_IN E12 Power I Input voltage supply for LDOLN regulator System supply –
LDO5 F13 Power O Output voltage for LDO5 regulator Floating –
LDO5_IN F12 Power I Input voltage supply for LDO5 regulator System supply –
LDO1 F1 Power O Output voltage for LDO1 regulator Floating –
LDO1_IN F2 Power I Input voltage supply for LDO1 regulator System supply –
VRTC D7 Power O Output voltage for VRTC regulator N/A –
VRTC_IN F8 Power I Input voltage supply for VRTC regulator System supply –
LDOUSB A7 Power O Output voltage for LDOUSB regulator Floating –
LDO7 A8 Power O Output voltage for LDO7 regulator Floating –
LDO7_IN B8 Power I Input voltage supply for LDO7 regulator System supply –
Monitoring
GGAUGE_RESN D10 Analog I Sense resistor input signal negative (ground side)
NOTE: Shared with battery charger.		 Ground –
GGAUGE_RESP D9 Analog I Sense resistor input signal positive (battery negative side)
NOTE: Shared with battery charger.		 Ground –
GPADC_IN0 D11 Analog I/O General-purpose analog-to-digital converter (GPADC) input 0 Ground –
GPADC_IN1 D8 Analog I/O GPADC input 1 Ground –
GPADC_VREF B11 Analog O GPADC output reference voltage Floating –
GPADC_IN2 A12 Analog I GPADC input 2 Ground –
GPADC_IN3 B12 Analog I/O GPADC input 3 Ground –
GPADC_IN4 A11 Analog I/O GPADC input 4 Ground –
GPADC_IN5 G10 Analog I GPADC input 5 Ground –
GPADC_IN6 F11 Analog I GPADC input 6 Ground –
GPADC_START L10 Digital I Trigger hardware request to start GPADC synchronous conversion Ground *PPD
170 to 950 kΩ
SMPS Regulators
SMPS4_FDBK G11 Analog I SMPS4 feedback Ground –
SMPS4_GND G12, G13 Ground I SMPS4 ground Ground –
SMPS4_IN J12, J13 Power I SMPS4 input voltage System supply –
SMPS4_SW H12, H13 Power O SMPS4 switch Floating –
SMPS2_FDBK K13 Analog I SMPS2 feedback Ground –
SMPS2_GND M11, N11 Ground I SMPS2 ground Ground –
SMPS2_IN L13, M13 Power I SMPS2 input voltage System supply –
SMPS2_SW L12, M12, N12 Power O SMPS2 switch Floating –
SMPS3_FDBK L11 Analog I SMPS3 feedback Ground –
SMPS3_GND M8, M9 Ground I SMPS3 ground Ground –
SMPS3_IN M10, N10 Power I SMPS3 input voltage System supply –
SMPS3_SW N9 Power O SMPS3 switch Floating –
SMPS1_FDBK H1 Analog I SMPS1 feedback Ground –
SMPS1_GND K3, L3, M3, N3 Ground I SMPS1 ground Ground –
SMPS1_IN K1, L1, M1 Power I SMPS1 input voltage System supply –
SMPS1_SW K2, L2, M2, N2 Power O SMPS1 switch Floating –
SMPS5_FDBK L4 Analog I SMPS5 feedback Ground –
SMPS5_GND M5, M6 Ground I SMPS5 ground Ground –
SMPS5_IN M4, N4 Power I SMPS5 input voltage System supply –
SMPS5_SW N5 Power O SMPS5 switch Floating –
