6.6 Typical Characteristics

at TA = 25°C, VS = ±12 V, VCM = VOUT = midsupply, and RL = 2 kΩ (unless otherwise noted)
INA1650-Q1 INA1651-Q1 C108_SBOS818.png
5746 channels
VREF pins connected to ground
Figure 1. Common-Mode Rejection Ratio Distribution
INA1650-Q1 INA1651-Q1 C110_SBOS818.png
5746 channels

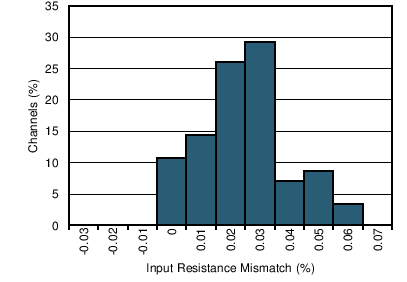

Figure 3. Distribution of Mismatch in 500-kΩ Input Resistors
INA1650-Q1 INA1651-Q1 C209_SBOS818.png
5746 channels
Figure 5. Offset Voltage Distribution
INA1650-Q1 INA1651-Q1 C301_SBOS818.png
Figure 7. Frequency Response
INA1650-Q1 INA1651-Q1 C303_SBOS818.png
Figure 9. Common-Mode Rejection Ratio vs Frequency
INA1650-Q1 INA1651-Q1 C304_SBOS818.png
Figure 11. Voltage Noise Spectral Density
INA1650-Q1 INA1651-Q1 C102_SBOS818.png

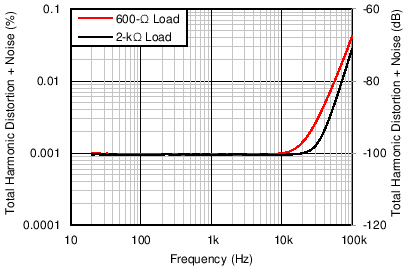

3 VRMS, 500-kHz measurement bandwidth
Figure 13. THD+N vs Frequency
INA1650-Q1 INA1651-Q1 new_C104_SBOS772.png
SMPTE 4:1 60 Hz and 7 kHz, 90-kHz measurement bandwidth
Figure 15. SMPTE Intermodulation Distortion vs Output Amplitude
INA1650-Q1 INA1651-Q1 C207_SBOS818.png
Figure 17. Signal Path Output Impedance vs Frequency
INA1650-Q1 INA1651-Q1 C305_SBOS818.png
100-mV input step
Figure 19. Overshoot vs Capacitive Load
INA1650-Q1 INA1651-Q1 C307_SBOS818.png
10-mV input step
Figure 21. Small-Signal Step Response
INA1650-Q1 INA1651-Q1 C309_SBOS818.png

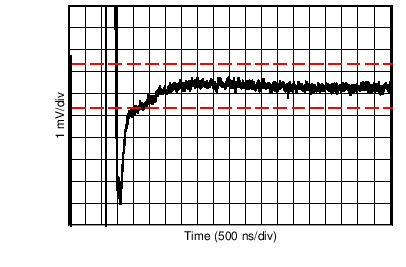

10-V input step, 0.01% settling = ±1 mV
Figure 23. Rising-Edge Settling Time
INA1650-Q1 INA1651-Q1 new_C306_SBOS772.png
Figure 25. No Phase Reversal
INA1650-Q1 INA1651-Q1 new_C019_SBOS772.png
5 typical units
Figure 27. Output Offset Voltage vs Common-Mode Voltage
INA1650-Q1 INA1651-Q1 new_C007_SBOS772.png
Figure 29. Positive Output Voltage vs Output Current
INA1650-Q1 INA1651-Q1 new_C005_SBOS772.png

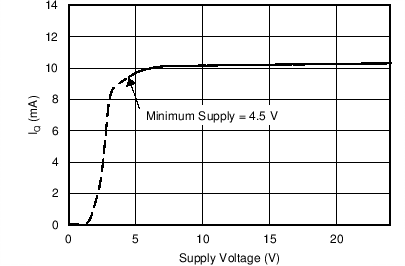

Figure 31. Quiescent Current vs Power Supply Voltage
INA1650-Q1 INA1651-Q1 new_ai_C006_SBOS772.png
REF A/B connected to 0 V
Figure 33. Input Common-Mode Voltage vs Output Voltage
INA1650-Q1 INA1651-Q1 ai_C008_SBOS818.png
REF A/B connected to VMID(OUT)
Figure 35. Input Common-Mode Voltage vs Output Voltage
INA1650-Q1 INA1651-Q1 ai_C010_SBOS818.png
REF A/B connected to 0 V
Figure 37. Input Common-Mode Voltage vs Output Voltage
INA1650-Q1 INA1651-Q1 C109_SBOS818.png
5746 channels
VREF pins connected to VMID(OUT)

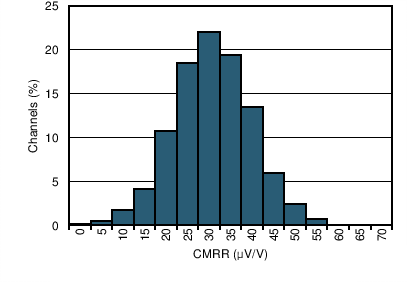

Figure 2. Common-Mode Rejection Ratio Distribution
INA1650-Q1 INA1651-Q1 C111_SBOS818.png
5746 channels

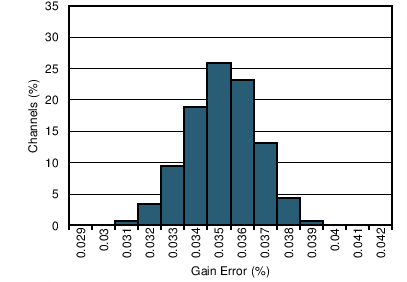

Figure 4. Gain Error Distribution
INA1650-Q1 INA1651-Q1 C009_SBOS818.png
52 channels
Figure 6. Offset Voltage Drift Distribution
INA1650-Q1 INA1651-Q1 new_C001_SBOS772.png
Figure 8. Maximum Output Voltage vs Frequency
INA1650-Q1 INA1651-Q1 C302_SBOS818.png

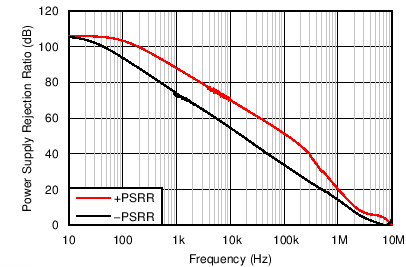

Figure 10. Power Supply Rejection Ratio vs Frequency
INA1650-Q1 INA1651-Q1 C101_SBOS818.png
3 VRMS, 90-kHz measurement bandwidth

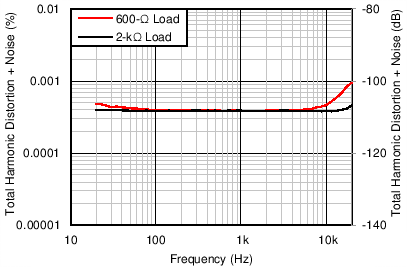

Figure 12. THD+N vs Frequency
INA1650-Q1 INA1651-Q1 new_C103_SBOS772.png
1 kHz, 90-kHz measurement bandwidth
Figure 14. THD+N vs Output Amplitude
INA1650-Q1 INA1651-Q1 new_C105_SBOS772.png
CCIF 19 kHz and 20 kHz, 90-kHz measurement bandwidth
Figure 16. CCIF Intermodulation Distortion vs Output Amplitude
INA1650-Q1 INA1651-Q1 C208_SBOS818.png
CF = 1 µF
Figure 18. Supply Divider Output Impedance vs Frequency
INA1650-Q1 INA1651-Q1 C210_SBOS818.png
Figure 20. Channel Separation vs Frequency
INA1650-Q1 INA1651-Q1 C308_SBOS818.png
10-V input step
Figure 22. Large-Signal Step Response
INA1650-Q1 INA1651-Q1 C310_SBOS818.png

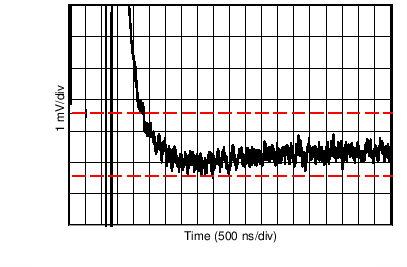

10-V input step, 0.01% settling = ±1 mV
Figure 24. Falling-Edge Settling Time
INA1650-Q1 INA1651-Q1 C017_SBOS818.png
5 typical units
Figure 26. CMRR vs Temperature
INA1650-Q1 INA1651-Q1 C006_SBOS818.png

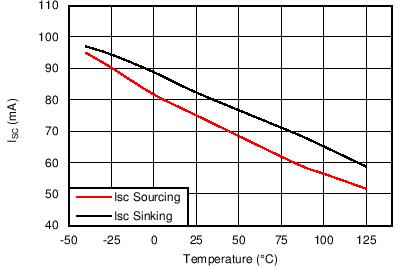

Figure 28. Short-Circuit Current vs Temperature
INA1650-Q1 INA1651-Q1 new_C907_SBOS772.png
Figure 30. Negative Output Voltage vs Output Current
INA1650-Q1 INA1651-Q1 new_C004_SBOS772.png
Figure 32. Quiescent Current vs Temperature
INA1650-Q1 INA1651-Q1 ai_C007_SBOS818.png
REF A/B connected to 0 V
Figure 34. Input Common-Mode Voltage vs Output Voltage
INA1650-Q1 INA1651-Q1 ai_C009_SBOS818.png
REF A/B connected to VMID(OUT)
Figure 36. Input Common-Mode Voltage vs Output Voltage
INA1650-Q1 INA1651-Q1 ai_C011_SBOS818.png
REF A/B connected to 0 V
Figure 38. Input Common-Mode Voltage vs Output Voltage
