6.12.2 Port P2 Input/Output With Schmitt Trigger

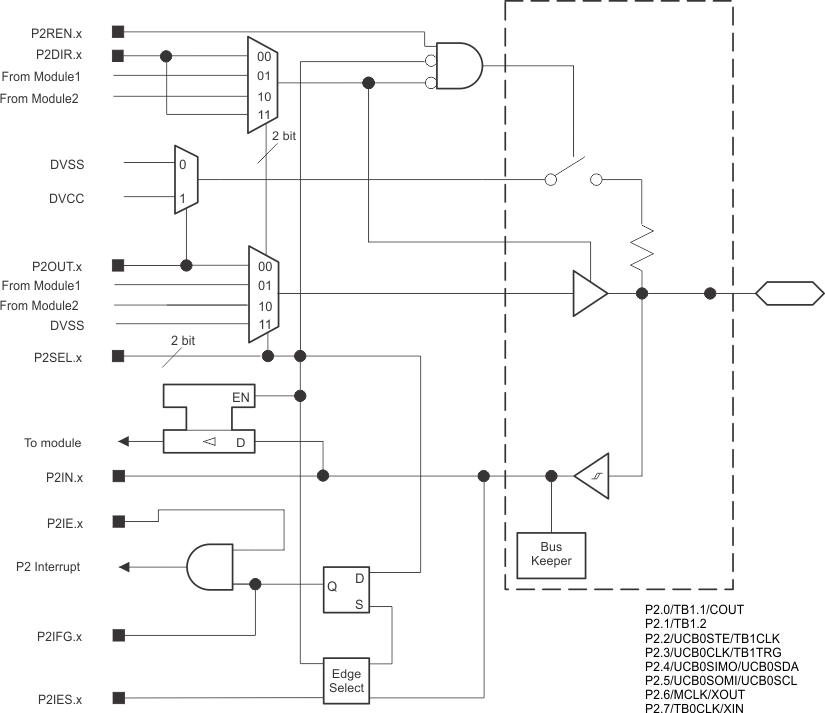

Figure 6-6 shows the port diagram. Table 6-44 summarizes the selection of the port functions.

MSP430FR2311 MSP430FR2310 P2.gif

NOTE:

Functional representation only.
Figure 6-6 Port P2 Input/Output With Schmitt Trigger

Table 6-44 Port P2 Pin Functions

PIN NAME (P2.x) x FUNCTION CONTROL BITS AND SIGNALS(1)
P2DIR.x P2SELx
P2.0/TB1.1/COUT 0 P2.0 (I/O) I: 0; O: 1 00
TB1.CCI1A 0 01
TB1.1 1
COUT 1 10
P2.1/TB1.2 1 P2.1 (I/O)0 I: 0; O: 1 00
TB1.CCI2A 0 01
TB1.2 1
P2.2/UCB0STE/TB1CLK 2 P2.2 (I/O) I: 0; O: 1 00
UCB0STE X 01
TB1CLK 0 10
VSS 1
P2.3/UCB0CLK/TB1TRG 3 P2.3 (I/O) I: 0; O: 1 00
UCB0CLK X 01
TB1TRG 0 10
P2.4/UCB0SIMO/UCB0SDA 4 P2.4 (I/O) I: 0; O: 1 00
UCB0SIMO/UCB0SDA X 01
P2.5/UCB0SOMI/UCB0SCL 5 P2.5 (I/O) I: 0; O: 1 00
UCB0SOMI/UCB0SCL X 01
P2.6/MCLK/XOUT 6 P2.6 (I/O) I: 0; O: 1 00
MCLK 1 01
VSS 0
XOUT X 10
P2.7/TB0CLK/XIN 7 P2.7 (I/O) I: 0; O: 1 00
TB0CLK 0 01
VSS 1
XIN X 10
