Table 5-19 eUSCI (I2C Mode) Switching Characteristics

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-14)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
feUSCI eUSCI input clock frequency Internal: SMCLK or MODCLK,
External: UCLK,
Duty cycle = 50% ±10%		 16 MHz
fSCL SCL clock frequency 2.0 V, 3.0 V 0 400 kHz
tHD,STA Hold time (repeated) START fSCL = 100 kHz 2.0 V, 3.0 V 4.0 µs
fSCL > 100 kHz 0.6
tSU,STA Setup time for a repeated START fSCL = 100 kHz 2.0 V, 3.0 V 4.7 µs
fSCL > 100 kHz 0.6
tHD,DAT Data hold time 2.0 V, 3.0 V 0 ns
tSU,DAT Data setup time 2.0 V, 3.0 V 250 ns
tSU,STO Setup time for STOP fSCL = 100 kHz 2.0 V, 3.0 V 4.0 µs
fSCL > 100 kHz 0.6
tSP Pulse duration of spikes suppressed by input filter UCGLITx = 0 2.0 V, 3.0 V 50 600 ns
UCGLITx = 1 25 300
UCGLITx = 2 12.5 150
UCGLITx = 3 6.3 75
tTIMEOUT Clock low time-out UCCLTOx = 1 2.0 V, 3.0 V 27 ms
UCCLTOx = 2 30
UCCLTOx = 3 33

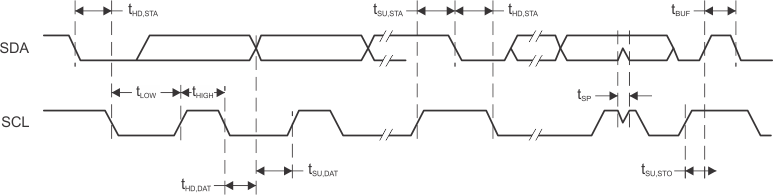

MSP430FR2311 MSP430FR2310 017.gifFigure 5-14 I2C Mode Timing
