6.11.15 eCOMP0, SAC0, TIA0, and ADC in SOC Interconnection

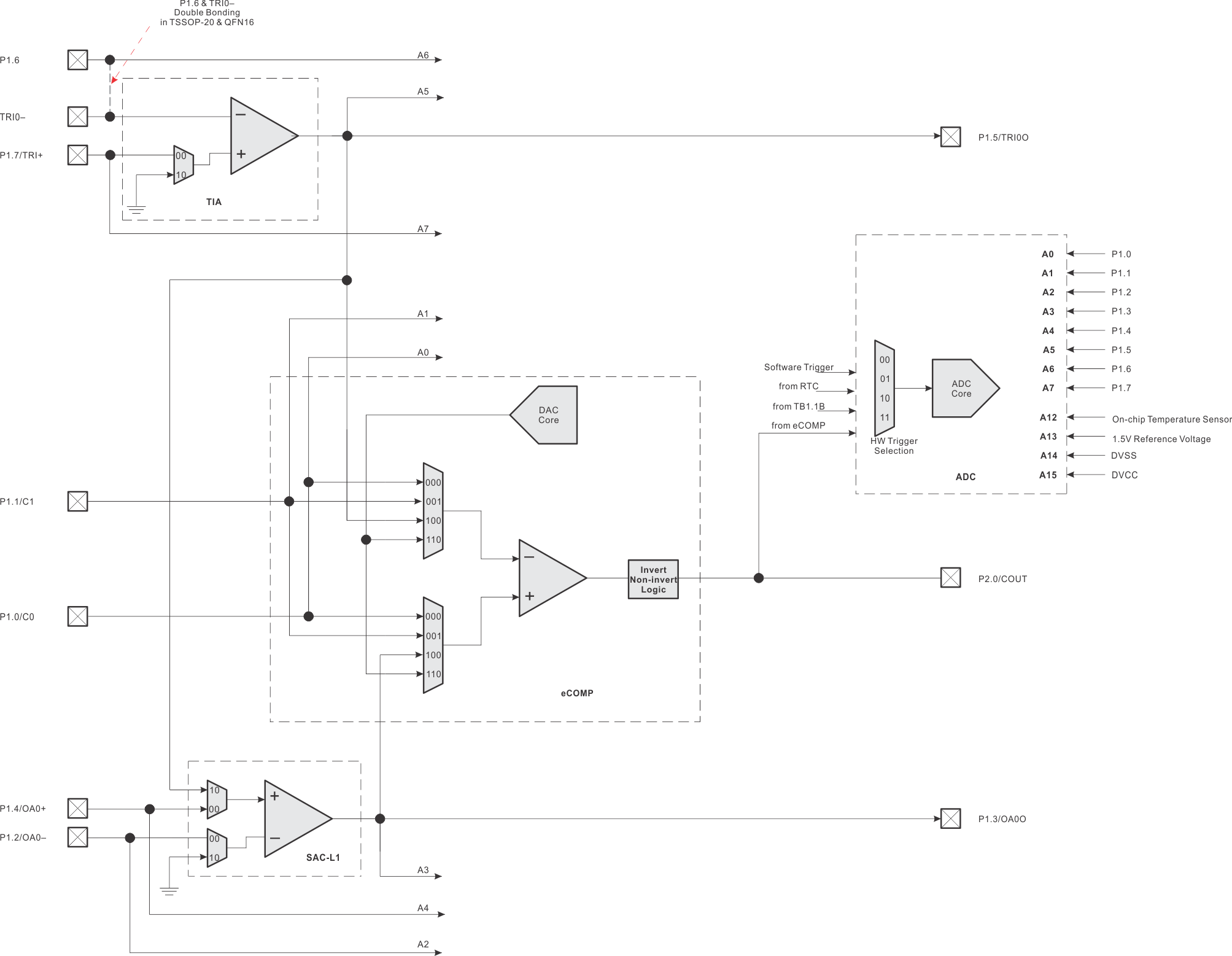

Figure 6-3 shows how the high-performance analog modules are internally connected.

MSP430FR2311 MSP430FR2310 SLASE58_SOC_INTERCONNECTION_EXT.gifFigure 6-3 High-Performance Analog SOC Interconnection

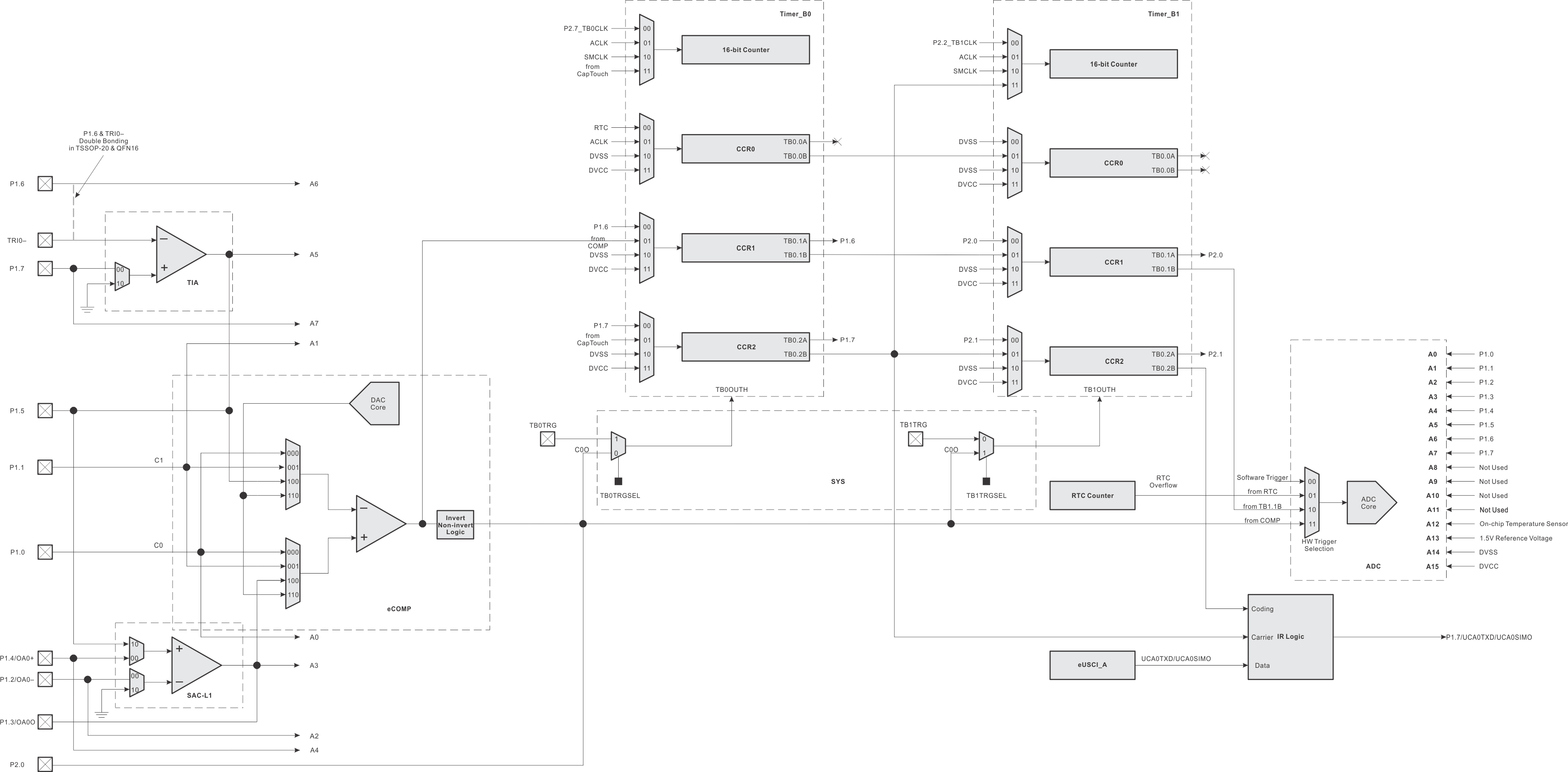

Figure 6-4 shows how the analog modules can be connected internally.

MSP430FR2311 MSP430FR2310 SLASE58_SOC_INTERCONNECTION.gifFigure 6-4 SOC Interconnection
