6.19 Typical Characteristics

PLL Bandwidth = 400 kHzVCO Frequency = 5 GHz
Integer-N PLLOutput Divider = 32
Figure 6-1 Closed-Loop Phase Noise of LVPECL Differential Output at 156.25 MHz
PLL Bandwidth = 400 kHzVCO Frequency = 5 GHz
Integer-N PLLOutput Divider = 32
Figure 6-3 Closed-Loop Phase Noise of HCSL Differential Output at 156.25 MHz
PLL Bandwidth = 400 kHzVCO Frequency = 5.15625 GHz
Fractional-N PLLOutput Divider = 32
Figure 6-5 Closed Loop Phase Noise of LVDS Differential Output at 161.1328125 MHz
PLL Bandwidth = 400 kHzVCO Frequency = 5 GHz
Integer-N PLLOutput Divider = 32
Figure 6-7 156.25 ± 78.125-MHz LVPECL Differential Output Spectrum
PLL Bandwidth = 400 kHzVCO Frequency = 5 GHz
Integer-N PLLOutput Divider = 32
Figure 6-9 156.25 ± 78.125-MHz HCSL Differential Output Spectrum
PLL Bandwidth = 400 kHzVCO Frequency = 5.15625 GHz
Fractional-N PLLOutput Divider = 32
Figure 6-11 161.1328125 ± 80.56640625-MHz LVDS Output Spectrum

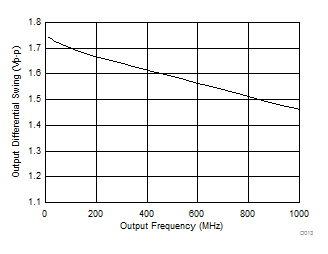

Figure 6-13 LVPECL Differential Output Swing vs Frequency
Figure 6-15 HCSL Differential Output Swing vs Frequency
PLL Bandwidth = 400 kHzVCO Frequency = 5 GHz
Integer-N PLLOutput Divider = 32
Figure 6-2 Closed Loop Phase Noise of LVDS Differential Output at 156.25 MHz
PLL Bandwidth = 400 kHzVCO Frequency = 5.15625 GHz
Fractional-N PLLOutput Divider = 32
Figure 6-4 Closed-Loop Phase Noise of LVPECL Differential Output at 161.1328125 MHz
PLL Bandwidth = 400 kHzVCO Frequency = 5.15625 GHz
Fractional-N PLLOutput Divider = 32
Figure 6-6 Closed-Loop Phase Noise of HCSL Differential Output at 161.1328125 MHz
PLL Bandwidth = 400 kHzVCO Frequency = 5 GHz
Integer-N PLLOutput Divider = 32
Figure 6-8 156.25 ± 78.125-MHz LVDS Differential Output Spectrum
PLL Bandwidth = 400 kHzVCO Frequency = 5.15625 GHz
Fractional-N PLLOutput Divider = 32
Figure 6-10 161.1328125 ± 80.56640625-MHz LVPECL Differential Output Spectrum
PLL Bandwidth = 400 kHzVCO Frequency = 5.15625 GHz
Fractional-N PLLOutput Divider = 32
Figure 6-12 161.1328125 ± 80.56640625-MHz HCSL Output Spectrum
Figure 6-14 LVDS Differential Output Swing vs Frequency
