8.2.3 Application Curves

The test condition for Figure 9-2 is that the testing is under bank control, using the following register values: 0x02 (0xFF), 0x04 (0xA0), 0x05 (0xA0), 0x06 (0xA0).

The test condition for Figure 9-2 is that the testing is under bank control, using the following register values: 0x02 (0xFF), 0x04 (0x10), 0x05 (0x10), 0x06 (0x10).

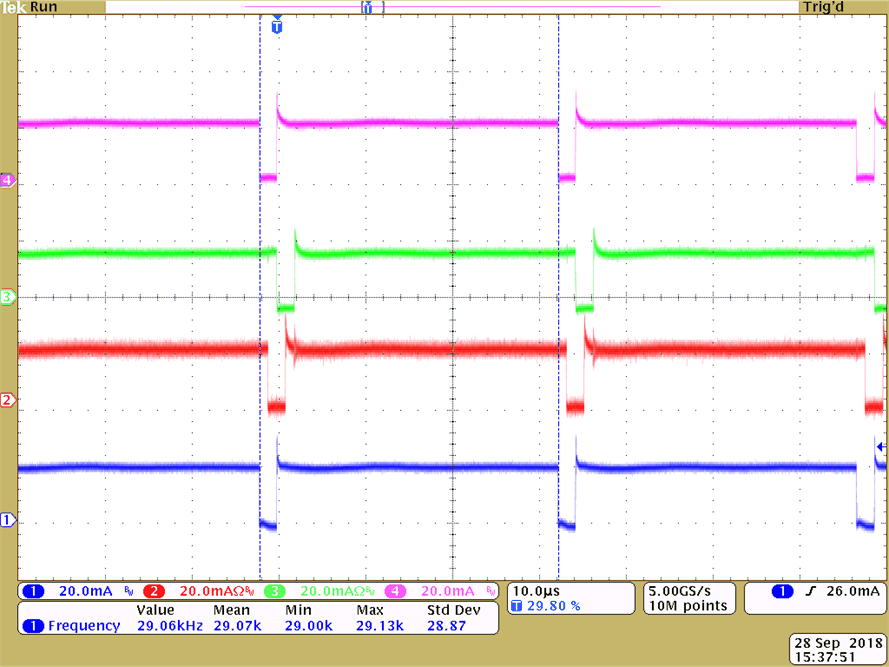

LP5018 LP5024 Current Waveform of OUT0, OUT1, OUT2 and OUT3
Figure 8-2 Current Waveform of OUT0, OUT1, OUT2 and OUT3
LP5018 LP5024 Current Waveform of OUT0, OUT1, OUT2 and OUT3
Figure 8-3 Current Waveform of OUT0, OUT1, OUT2 and OUT3
