10.5.5.10 WREG Command

Use the WREG command to write register data. The register data are written one byte at a time by issuing the WREG command for each operation. Add the register address (rrh) to the base opcode (40h) to construct the command byte (40h + rrh). Table 26 shows the command byte sequence. Figure 79 shows an example of the WREG operation. Be aware that writing to certain registers results in conversion restart. Table 29 lists the registers that restart an ongoing conversion when written to. Do not write to registers outside the address range.

Table 26. WREG Command

DIRECTION BYTE 1 BYTE 2 BYTE 3 BYTE 4
No CRC mode
DIN 40h + rrh(1) Register data
DOUT/DRDY FFh Echo byte 1
CRC mode
DIN 40h + rrh Register data CRC-2 00h
DOUT/DRDY FFh Echo byte 1 Echo byte 2 Out CRC-2
(1) rrh = 5-bit register address.
ADS1260 ADS1261 ai_write_reg_sbas760.gif

NOTE:

CS can be tied low.

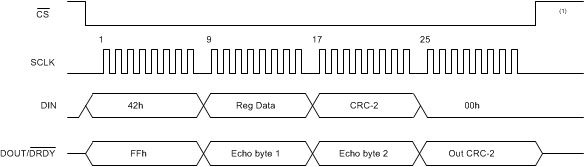

Figure 79. Register Write Operation (address = 02h, CRC Mode Enabled)
