10.2.2.3 Application Curves

Figure 77 and Figure 78 show the measurement results. The measurements are taken at TA = 25°C. A system offset calibration is performed using a reference resistor of 100 Ω. No gain calibration is implemented. The data in Figure 77 are taken using precision resistors instead of a 3-wire Pt100. The respective temperature measurement error in Figure 78 is calculated from the data in Figure 77 using the NIST tables.

The design meets the required temperature measurement accuracy given in Table 26. However, the measurement error shown in Figure 78 does not include the error of the RTD itself.

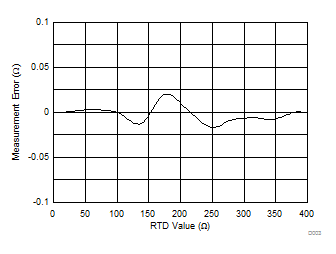

ADS112C04 D003_SBAS683.gif
Figure 77. Resistance Measurement Error vs RRTD
ADS112C04 D004_SBAS683.gif
Figure 78. Temperature Measurement Error vs T(RTD)
