8.3.2 Wide Input Common-Mode Voltage Range

The INAx180-Q1 support input common-mode voltages from –0.2 V to +26 V. Because of the internal topology, the common-mode range is not restricted by the power-supply voltage (VS) as long as VS stays within the operational range of 2.7 V to 5.5 V. The ability to operate with common-mode voltages greater or less than VS allow the INAx180-Q1 to be used in high-side, as well as low-side, current-sensing applications, as shown in Figure 8-4.

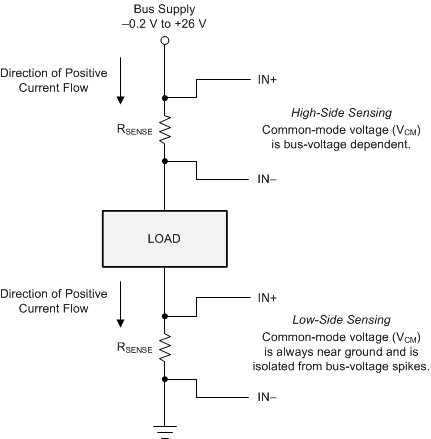

GUID-FB494DB9-E9AE-4216-87E6-1AD8100E2B1B-low.gifFigure 8-4 High-Side and Low-Side Sensing Connections
