6.5 Electrical Characteristics

VCC = 3 V to 5.5 V, TJ=–40°Cto150°C,VSENSE = 5 V, GS = FFFh, BC = FFh, DC = 7Fh with upper dotcorrection(DC)range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
POWER SUPPLIES (VCC, GND)
ICC Supply current SDI, SCK, LATCH = L, BLANK = L, GCLK = L, VOUT = 1 V, IOUT = 2 mA 4.2 5.5 mA
SDI, SCK, LATCH = L, BLANK = L, GCLK = L, VOUT = 1 V, IOUT = 20 mA 7.7 9
SDI, SCK, LATCH = L, BLANK = H, GCLK = 8 MHz, VOUT = 1 V, IOUT = 20 mA , auto-repeat on 8.3 10
SDI, SCK, LATCH = L, BLANK = H, GCLK = 8 MHz, VOUT = 1 V, IOUT = 50 mA , auto-repeat on 13.5 16
LOGIC INPUTS (SDI, SCK, LATCH, GCLK, BLANK)
IIkg Input leakage current VI at SCK, LATCH, GCLK = VCC; VI at SDI, SCK, LATCH, BLANK, GCLK = GND –1 1 µA
Rpd Pulldown resistance at BLANK, GCLK 250 500 750 kΩ
CONTROL OUTPUTS (IREF, ERR, SDO)
VIREF IREF voltage RIREF = 0.96 kΩ 1.17 1.2 1.23 V
VOH High-level output voltage At SDO, IOH = –1 mA VCC – 0.4 VCC V
VOL Low-level output voltage At SDO, IOL = 1 mA 0.4 V
VERR ERR pin open-drain voltage drop IERR = 4 mA 0.1 VCC V
Ilkg(ERR) ERR pin leakage current VERR = 5 V 1 µA
OUTPUT STAGE
V(OUT,min) Minimum output voltage VCC = 3.6 V, IOUT = 50 mA 0.67 V
VCC = 3 V, IOUT = 50 mA 0.7
K(OUT) Ratio of output current to IREF current, K = I(OUTx) / I(IREF) 40 mA/mA
Ilkg(OUT) Output leakage current BLANK = L, VOUT = 7 V, VSENSE = 7 V, IOUT = 50 mA 0.1 µA
CHANNEL ACCURACY
I(OUT) Constant output current VOUT = 1 V, RIREF = 24 kΩ 1.86 2 2.14 mA
VOUT = 1 V, RIREF = 0.96 kΩ 46.5 50 53.5
VOUT = 1V, RIREF open or short 7 10 13
ΔI(Ch-Ch)(1) Current accuracy (channel-to-channel in same color group) VOUT = 1 V, IOUT = 50 mA –4% 4%
VOUT = 1 V, IOUT = 2 mA –4% 4%
ΔI(Dev-Dev)(2) Current accuracy (device-to-device) VOUT= 1 V, IOUT = 50 mA –4% 4%
VOUT = 1 V, IOUT = 2 mA –4% 4%
ΔI(Ch-Ideal)(3) Current accuracy (channel-to-ideal output) VOUT = 1 V, IOUT = 50 mA –7% 7%
VOUT = 1 V, IOUT = 2 mA –7% 7%
ΔI(OUT-VCC)(4) Line regulation VOUT = 1 V, IOUT = 50 mA –0.7 0.7 %/V
VOUT = 1 V, IOUT = 2 mA –0.7 0.7
ΔI(OUT-VOUT)(5) Load regulation VOUT = 1 V to 3 V, IOUT = 50 mA –0.7 0.7
VOUT = 1 V to 3 V, IOUT = 2 mA –0.7 0.7
PROTECTION CIRCUITS
VLOD LED open-circuit detection threshold LOD_VOLTAGE = 0b 0.275 0.3 0.32 V
LOD_VOLTAGE = 1b 0.48 0.5 0.52
VLSD LED short-circuit detection threshold LSD_VOLTAGE = 0b VSENSE – 0.4 VSENSE – 0.3 VSENSE – 0.2 V
LSD_VOLTAGE = 1b VSENSE – 0.8 VSENSE – 0.7 VSENSE – 0.6
IIREF_OC IREF resistor open-circuit detection threshold VCC = 5 V 8 10 12 µA
IIREF_OCHYS IREF resistor open-circuit detection threshold hysteresis VCC = 5 V 5 µA
IIREF_SC IREF resistor short-circuit-detection threshold VCC = 5 V 2 2.7 3.2 mA
IIREF_SCHYS IREF resistor short-circuit-detection threshold hysteresis VCC = 5 V 0.3 mA
TPTW Pre-thermal warning flag threshold 125 135 145 °C
THYS_PTW Pre-thermal warning flag hysteresis 10 °C
TSD Thermal error flag threshold 150 160 170 °C
THYS_TEF Thermal error flag hysteresis 10 °C
(1) Channel to channel accuracy in the same color group iscalculated by the formula below. (X = color group; i,j = 0 to 7 )
TLC6C5716-Q1 CH-CH-Accuracy-5716.gif

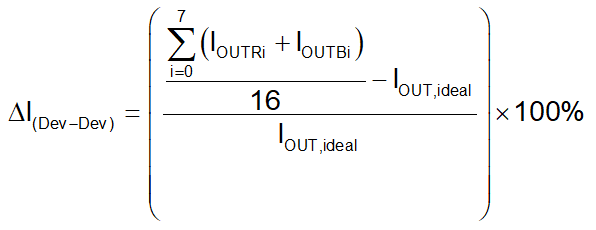

(2) Device to device accuracy is calculated by the formulabelow.
TLC6C5716-Q1 Dev-Dev-Accuracy-5716.gif
TLC6C5716-Q1 Ideal-Output-Current-5716.gif
(3) Channel to ideal accuracy is calculated by the formulabelow.
TLC6C5716-Q1 CH-Ideal-Accuracy-5716.gif
(4) Line regulation accuracy is calculated by the formulabelow.
TLC6C5716-Q1 Line-Regulation-5716.gif
(5) Load regulation accuracy is calculated by the formulabelow.
TLC6C5716-Q1 Load-Regulation-5716.gif
