9.2.1.3 Application Curves

Unless otherwise stated, application performance curves were taken at TA = 25°C.

LM5180 D002_snvu592.gif
Figure 24. Efficiency (Linear Scale)
LM5180 D004_snvu592.gif
Figure 26. Load Regulation (Linear Scale)

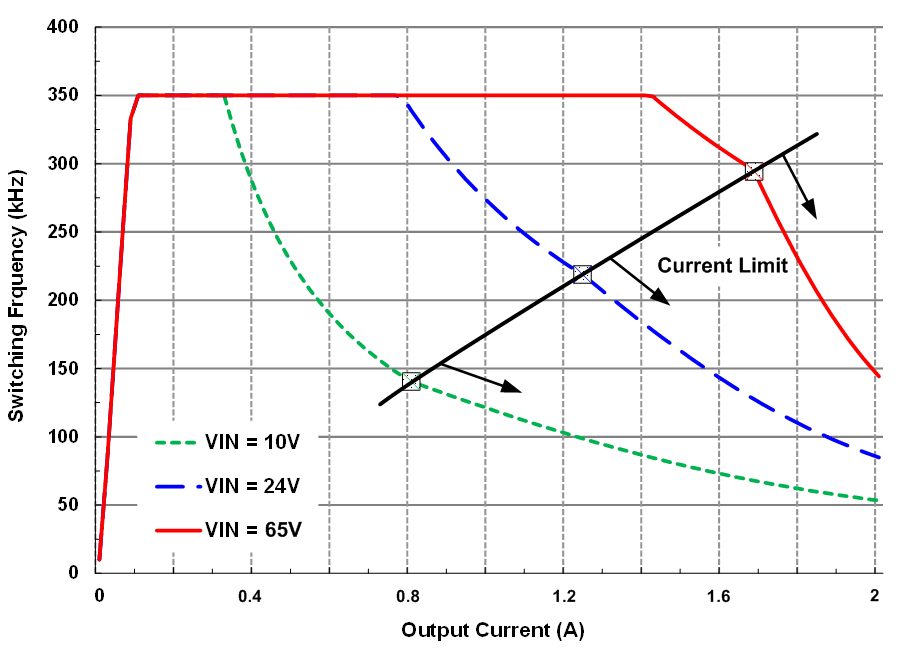

LM5180 Fsw_plot_design1_nvsb06.gif
Figure 28. Switching Frequency Over Load and Line
LM5180 LM5180_design1_ENstartup_waveform_nvsb06.gif
VIN = 24 V 5-Ω Load
Figure 30. Enable ON Characteristic
LM5180 LM5180_design1_SWnode24Vin_waveform_nvsb06.gif
VIN = 24 V IOUT = 1 A
Figure 32. SW Node Voltage
LM5180 LM5180_design1_Diode24Vin_waveform_nvsb06.gif
VIN = 24 V IOUT = 1 A
Figure 34. Flyback Diode Voltage
LM5180 CISPR25_24V_LF_design1_nvsb06.gif
VIN = 24 V
IOUT = 0.85 A		 150 kHz to 30 MHz LIN = 4.7 µH
CIN = 10 µF
Figure 36. CISPR 25 Class 5 Conducted EMI Plot
LM5180 D001_snvu592.gif
Figure 25. Efficiency (Log Scale)
LM5180 D003_snvu592.gif
Figure 27. Load Regulation (Log Scale)
LM5180 LM5180_design1_24Vstartup_waveform_nvsb06.gif
VIN stepped to 24 V 5-Ω Load
Figure 29. Start-up Characteristic
LM5180 LM5180_design1_SCrecovery_waveform_nvsb06.gif
VIN stepped to 48 V 5-Ω Load
Figure 31. Short Circuit Recovery

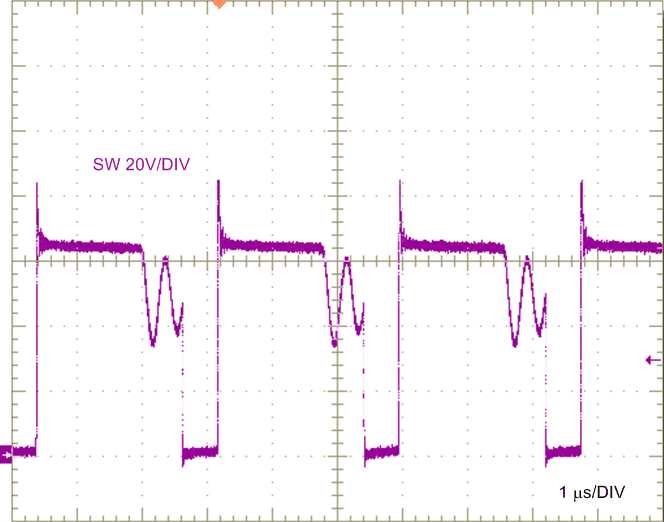

LM5180 LM5180_design1_SWnode48Vin_waveform_nvsb06.gif
VIN = 48 V IOUT = 1 A
Figure 33. SW Node Voltage
LM5180 LM5180_design1_Diode48Vin_waveform_nvsb06.gif
VIN = 48 V IOUT = 1 A
Figure 35. Flyback Diode Voltage
LM5180 CISPR25_24V_HF_design1_nvsb06.gif
VIN = 24 V
IOUT = 0.85 A		 30 MHz to 108 MHz LIN = 4.7 µH
CIN = 10 µF
Figure 37. CISPR 25 Class 5 Conducted EMI Plot
