10.3.8.1.1 Sinc Filter Frequency Response

As shown in Figure 66 and Figure 67, the first-stage sinc5 filter has frequency response nulls occurring at N × fDATA (where N = 1, 2, 3, and so on). At the null frequencies, the filter has zero gain.

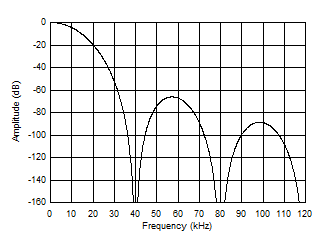

ADS125H02 D201_SBAS760.gifFigure 66. Sinc Frequency Response (40000 SPS)
ADS125H02 D002_sbas661.gifFigure 67. Sinc Frequency Response (14400 SPS)

The second stage superimposes additional nulls to the nulls produced by the first stage. The first of the superimposed nulls occurs at the output data rate with additional nulls at multiples of the output data rate.

Figure 68 shows the frequency response of the combined filter stages at 2400 SPS. This data rate has five equally-spaced nulls residing between the larger nulls at 14400-Hz multiples that are produced by the first stage. This frequency response is similar to that of data rates 2.5 SPS to 7200 SPS. Figure 69 shows the frequency response nulls at 10 SPS.

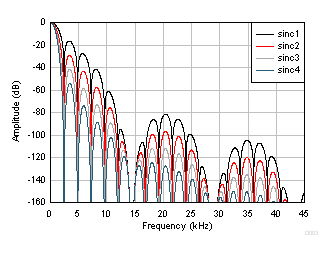

ADS125H02 D003_sbas661.gifFigure 68. Sinc Frequency Response (2400 SPS)
ADS125H02 D004_sbas661.gifFigure 69. Sinc Frequency Response (10 SPS)

Figure 70 and Figure 71 show the frequency response of data rates 50 SPS and 60 SPS, respectively. The frequency response is plotted to the 50-Hz 12th harmonic (10th harmonic for 60 Hz). The 50-Hz or 60-Hz fundamental and harmonic noise of the signal are reduced by increasing the filter order of the second stage.

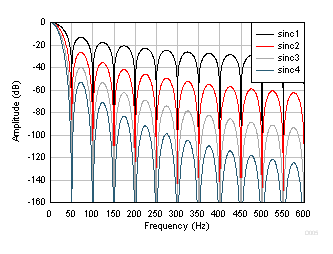

ADS125H02 D005_sbas661.gifFigure 70. Sinc Frequency Response (50 SPS)
ADS125H02 D006_sbas661.gifFigure 71. Sinc Frequency Response (60 SPS)

Figure 72 and Figure 73 plot the detailed frequency response of the 50-SPS and 60-SPS data rates and show various orders of the sinc filter. The high-order sinc filter increases the frequency width of the null, which improves line cycle rejection. Improved 50-Hz or 60-Hz rejection occurs using the sinc3 or sinc4 order filter.

ADS125H02 D009_sbas661.gifFigure 72. Sinc Frequency Response, Detailed (50 SPS)
ADS125H02 D010_sbas661.gifFigure 73. Sinc Frequency Response, Detailed (60 SPS)

The sinc filter has an overall low-pass response that rolls off high-frequency components of the signal. The filter bandwidth depends on the output data rate and the order of the output data rate. The overall system bandwidth is the combined responses of the digital filter, the PGA antialias filter, and external signal filters. Table 5 lists the –3-dB bandwidth of the sinc filter.

Table 5. Sinc Filter Bandwidth

-3-dB BANDWIDTH (Hz)
DATA RATE (SPS) SINC1 SINC2 SINC3 SINC4 SINC5
2.5 1.10 0.80 0.65 0.58 —
5 2.23 1.60 1.33 1.15 —
10 4.43 3.20 2.62 2.28 —
16.6 7.38 5.33 4.37 3.80 —
20 8.85 6.38 5.25 4.63 —
50 22.1 16.0 13.1 11.4 —
60 26.6 19.1 15.7 13.7 —
100 44.3 31.9 26.2 22.8 —
400 177 128 105 91.0 —
1200 525 381 314 273 —
2400 1015 751 623 544 —
4800 1798 1421 1214 1077 —
7200 2310 1972 1750 1590 —
14400 — — — — 2940
19200 — — — — 3920
25600 — — — — 5227
40000 — — — — 8167
