8.7
Typical Characteristics
Typical characteristics show the typical performance of the TPS3840 device. Test conditions are T
J
= 25°C, V
DD
= 3.3 V, R
pull-up
= 100 kΩ, C
Load
= 50 pF, unless otherwise noted.
Figure 6.
Supply Current vs Supply Voltage for TPS3840DL49
Figure 8.
Supply Current vs Supply Voltage for TPS3840PH49
Figure 10.

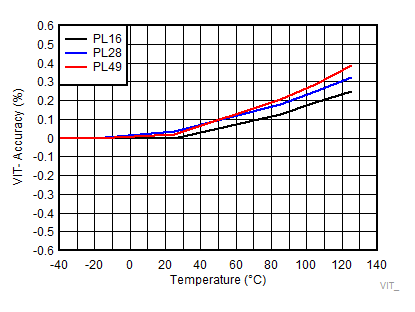

Negative-going Input Threshold Accuracy over Temperature for TPS3840PLXX
Figure 12.
Input Threshold V
IT-
Hysteresis Accuracy for TPS3840DLXX
Figure 14.
Input Threshold V
IT-
Hysteresis Accuracy for TPS3840PHXX
Figure 16.

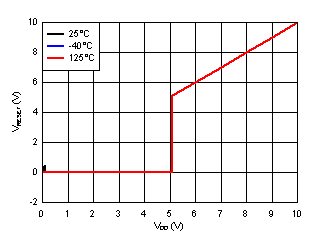

Output Voltage vs Input Voltage for TPS3840PL49
Figure 18.
Low Level Output Voltage vs I
RESET
for TPS3840DL49

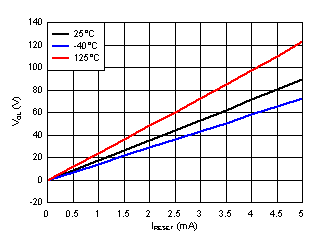

Figure 20.
Low Level Output Voltage vs I
RESET
for TPS3840PL49
Figure 22.
Low Level Output Voltage vs I
RESET
for TPS3840PH49
Figure 24.
High Level Output Voltage vs I
RESET
for TPS3840PL49
Figure 26.
High Level Output Voltage vs I
RESET
for TPS3840PH49
Figure 28.
Manual Reset Logic Low Voltage Threshold over Temperature for TPS3840DLXX
Figure 30.
Manual Reset Logic Low Voltage Threshold over Temperature for TPS3840PHXX
Figure 32.
Manual Reset Logic High Voltage Threshold over Temperature for TPS3840PLXX
Figure 34.
Glitch Immunity on V
IT-
vs Overdrive (Data Taken with TPS3840PL28)
Figure 36.
Startup Delay over Temperature
Figure 38.
Reset Time Delay vs Capacitor Value (Data Taken with TPS3840PL16)
Figure 40.

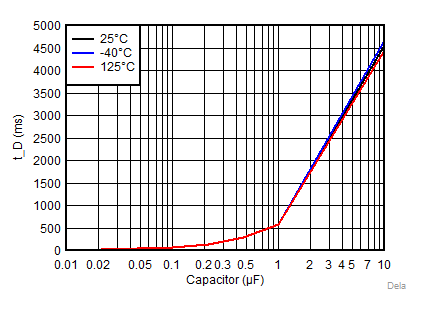

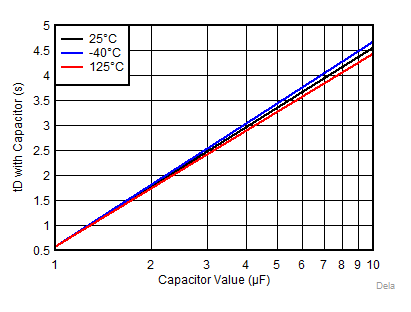

Reset Time Delay vs Large Capacitor Values (Data Taken with TPS3840PL16)
Figure 42.
Propagation Time Delay from
MR
Asserted to Reset over Temperature
Figure 7.
Supply Current vs Supply Voltage for TPS3840PL49
Figure 9.

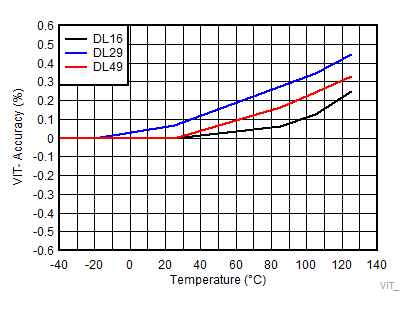

Negative-going Input Threshold Accuracy over Temperature for TPS3840DLXX
Figure 11.
Negative-going Input Threshold Accuracy over Temperature for TPS3840PHXX
Figure 13.
Input Threshold V
IT-
Hysteresis Accuracy for TPS3840PLXX
Figure 15.
Output Voltage vs Input Voltage for TPS3840DL49
Figure 17.
Output Voltage vs Input Voltage for TPS3840PH49
Figure 19.

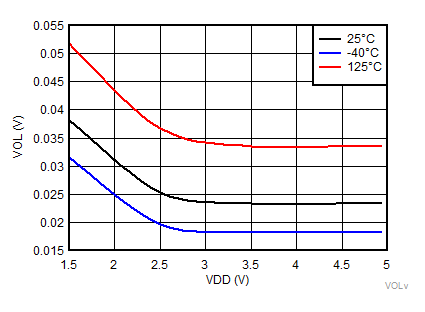

Low Level Output Voltage vs V
DD
for TPS3840DL49
Figure 21.

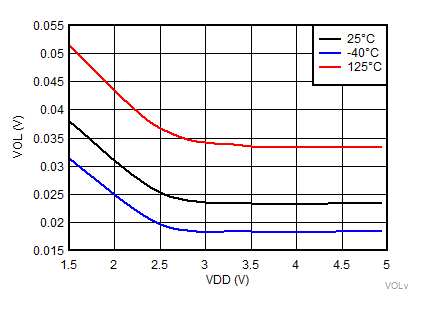

Low Level Output Voltage vs VDD for TPS3840PL49
Figure 23.
Low Level Output Voltage vs VDD for TPS3840PH49
Figure 25.
High Level Output Voltage over Temperature for TPS3840PL49
Figure 27.
High Level Output Voltage over Temperature for TPS3840PH49
Figure 29.

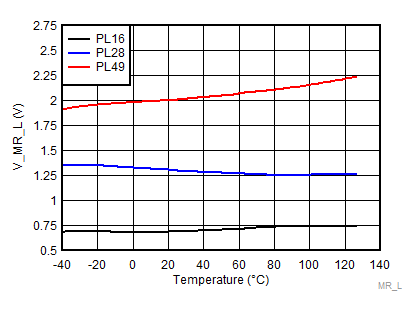

Manual Reset Logic Low Voltage Threshold over Temperature for TPS3840PLXX
Figure 31.
Manual Reset Logic High Voltage Threshold over Temperature for TPS3840DLXX
Figure 33.
Manual Reset Logic High Voltage Threshold over Temperature for TPS3840PHXX
Figure 35.

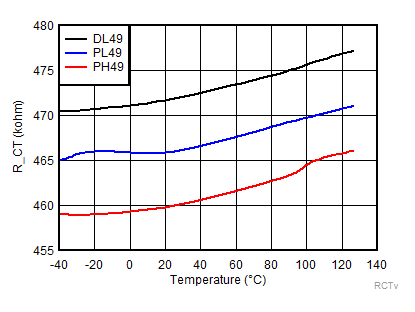

CT Pin Internal Resistance over Temperature
Figure 37.
Reset Time Delay with No Capacitor over Temperature
Figure 39.

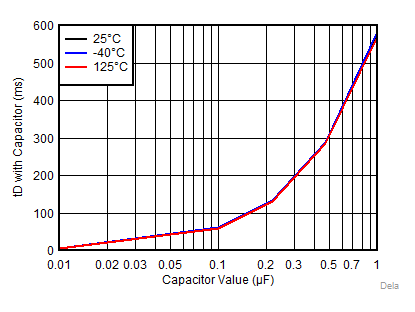

Reset Time Delay vs Small Capacitor Values (Data Taken with TPS3840PL16)
Figure 41.

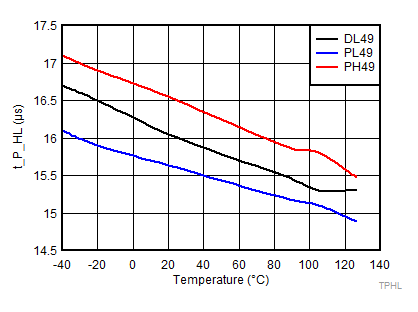

Propagation Detect Time Delay for VDD Falling Below V
IT-
(High-to-Low) over Temperature
Figure 43.
Propagation Time Delay from
MR
Release to Deasserted Reset over Temperature
