3 概要

TPS65982 デバイスは、スタンドアロンのUSB Type-C および PD (Power Delivery) コントローラであり、USB Type-C コネクタのケーブル・プラグおよび向きを検出します。ケーブルを検出すると、TPS65982 デバイスは USB PD プロトコルを使用して CC ワイヤで通信を行います。USB PD ネゴシエーションが成功すると、TPS65982 は適切な電力パスを有効にし、内部および (オプションとして) 外部のマルチプレクサ用に代替モード設定を構成します。

CC ピン上のミクスト・シグナル・フロント・エンドは、USB Type-C 電源用のデフォルト、1.5A、または 3A をアドバタイズし、プラグ・イベントを検出し、Type-C ケーブルの向きを判定します。そして、バイフェーズ・マーク・コーディング (BMC) と物理層 (PHY) プロトコルを使って USB PD コントラクトを自律的にネゴシエーションします。

製品情報(1)
部品番号パッケージ本体サイズ (公称)
TPS65982BGA MicroStar Junior (96)6.00mm × 6.00mm
NFBGA (96)
(1) 利用可能なすべてのパッケージについては、このデータシートの末尾にある注文情報を参照してください。

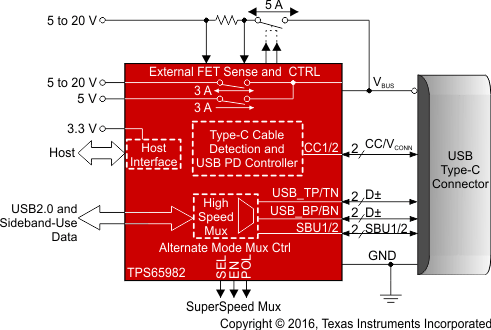

GUID-F1921552-0ADD-4DE7-A06C-06AB7EAB5176-low.gif 簡略ブロック図
