8 Parameter Measurement Information

In the below images, VCCI and VCCO refers to the power supplies VIO and VISOIN, respectively.
A. CL = 15 pF and The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the input, 50 Ω resistor is required to terminate Input Generator signal. It is not needed in actual application.
B. B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.

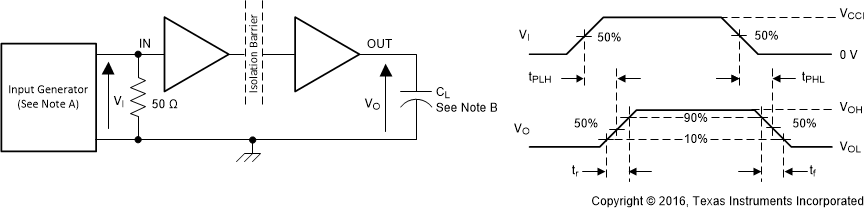

Figure 8-1 Switching Characteristics Test Circuit and Voltage Waveforms
A. A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the input, 50 Ω resistor is required to terminate Input Generator signal. It is not needed in actual application.
B. B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 8-2 Enable/Disable Propagation Delay Time Test Circuit and Waveform
Note: A. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Note: B. Power Supply Ramp Rate = 10 mV/ns.

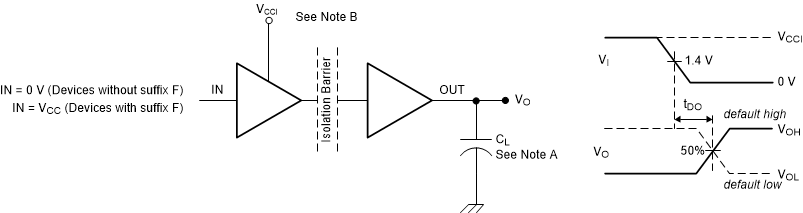

Figure 8-3 Default Output Delay Time Test Circuit and Voltage Waveforms
Note: CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Note: Pass-fail criteria: Outputs must remain stable.
Figure 8-4 Common-Mode Transient Immunity Test Circuit
