Application Curves

VOUT = 5 VfSW = 500 kHzAuto Mode

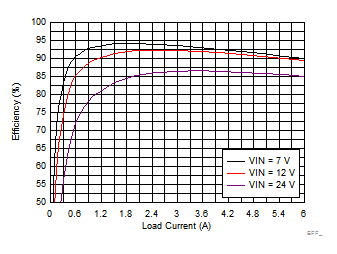

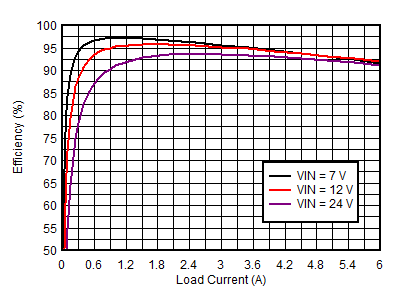

Figure 8-3 TPS7H4010-SEP Efficiency
VOUT = 5 VfSW = 1000 kHzAuto Mode

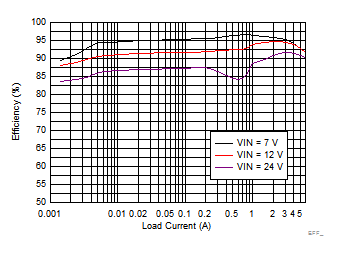

Figure 8-5 TPS7H4010-SEP Efficiency
VOUT = 5 VfSW = 2200 kHzAuto Mode

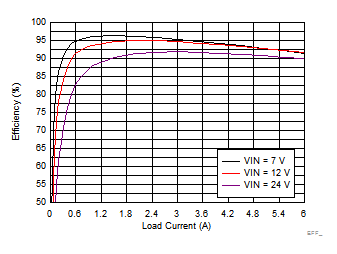

Figure 8-7 TPS7H4010-SEP Efficiency
VOUT = 5 VfSW = 500 kHzAuto Mode

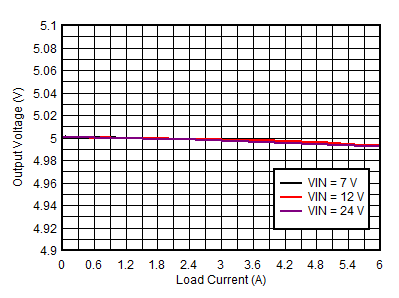

Figure 8-9 TPS7H4010-SEP Load and Line Regulation
VOUT = 5 VfSW = 2200 kHzAuto Mode

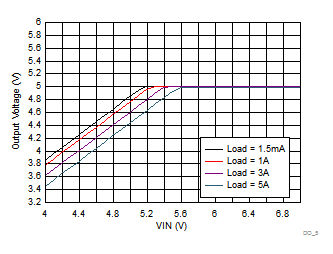

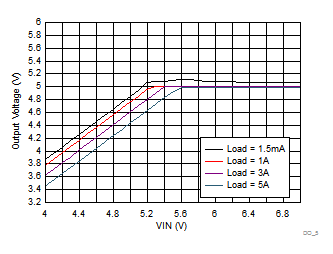

Figure 8-11 TPS7H4010-SEP Dropout Curve
VOUT = 5 VfSW = 500 kHzAuto Mode
Figure 8-13 TPS7H4010-SEP Dropout Curve
VOUT = 3.3 VfSW = 500 kHzAuto Mode
Figure 8-15 TPS7H4010-SEP Dropout Curve
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 1 mAAuto Mode

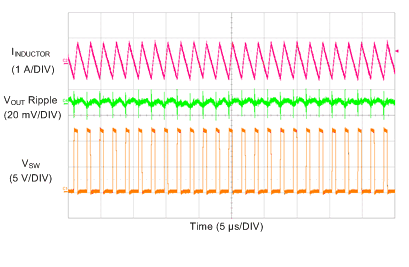

Figure 8-17 TPS7H4010-SEP Switching Waveform and VOUT Ripple
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 100 mAAuto Mode
Figure 8-19 TPS7H4010-SEP Switching Waveform and VOUT Ripple
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 6 AAuto Mode
Figure 8-21 TPS7H4010-SEP Switching Waveform and VOUT Ripple
VIN = 12 VVOUT set at 3.3 VfSW set at 500 kHz
IOUT = 7.5 AVOUT droops to 2 V
Figure 8-23 TPS7H4010-SEP Overcurrent Behavior
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT= 200 mAFPWM Mode

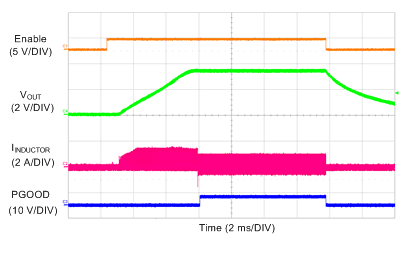

Figure 8-25 TPS7H4010-SEP Soft Start With 200-mA Load in FPWM Mode
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 5 AAuto Mode

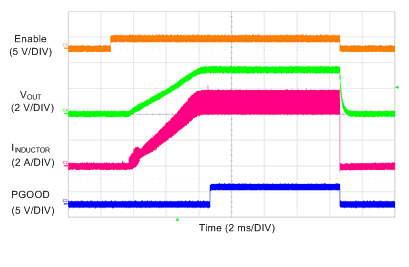

Figure 8-27 TPS7H4010-SEP Soft Start With 5-A Load
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 10 mA to 6 A to 10 mAAuto Mode

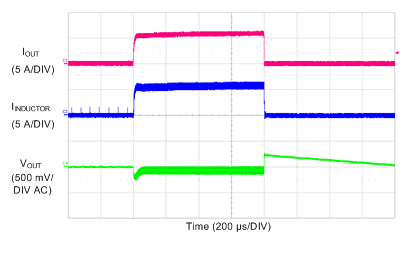

Figure 8-29 TPS7H4010-SEP Load Transients
VIN = 12 VVOUT = 5 VfSW = 2200 kHz
IOUT = 10 mA to 5 A to 10 mAAuto Mode
Figure 8-31 TPS7H4010-SEP Load Transients
VOUT = 5 VfSW = 500 kHzFPWM Mode

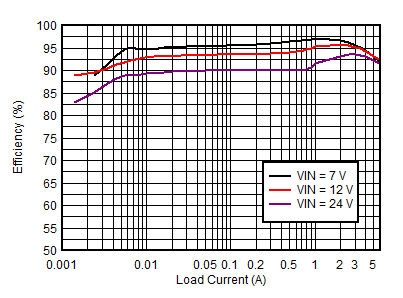

Figure 8-4 TPS7H4010-SEP Efficiency
VOUT = 5 VfSW = 1000 kHzFPWM Mode
Figure 8-6 TPS7H4010-SEP Efficiency
VOUT = 5 VfSW = 2200 kHzFPWM Mode
Figure 8-8 TPS7H4010-SEP Efficiency
VOUT = 5 VfSW = 500 kHzFPWM Mode
Figure 8-10 TPS7H4010-SEP Load and Line Regulation
VOUT = 5 VfSW = 2200 kHzFPWM Mode
Figure 8-12 TPS7H4010-SEP Dropout Curve
VOUT = 5 VfSW = 1000 kHzAuto Mode
Figure 8-14 TPS7H4010-SEP Dropout Curve
VOUT = 12 VfSW = 500 kHzAuto Mode
Figure 8-16 TPS7H4010-SEP Dropout Curve
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 1 mAFPWM Mode
Figure 8-18 TPS7H4010-SEP Switching Waveform and VOUT Ripple
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 100 mAFPWM Mode
Figure 8-20 TPS7H4010-SEP Switching Waveform and VOUT Ripple
VIN = 3.66 VVOUT = 3.3 VfSW set at 500 kHz
IOUT = 3 AAuto Mode
Figure 8-22 TPS7H4010-SEP Switching Waveform at Dropout
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
Figure 8-24 TPS7H4010-SEP Short-Circuit Hiccup Protection and Recovery
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT= 200 mAAuto Mode
Figure 8-26 TPS7H4010-SEP Soft Start With 200-mA Load in Auto Mode
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
VPRE-BIAS= 1.5 VAuto Mode
Figure 8-28 TPS7H4010-SEP Soft Start With Pre-Biased Output Voltage
VIN = 12 VVOUT = 3.3 VfSW = 500 kHz
IOUT = 10 mA to 6 A to 10 mAFPWM Mode
Figure 8-30 TPS7H4010-SEP Load Transients
VIN = 12 VVOUT = 5 VfSW = 2200 kHz
IOUT = 10 mA to 5 A to 10 mAFPWM Mode
Figure 8-32 TPS7H4010-SEP Load Transients
