6.10.13.2 ETM TRACE Switching Characteristics

NO.PARAMETERMINTYPMAXUNIT
1tcyc(ETM)Cycle time, TRACECLK period20ns
2th(ETM)Pulse Duration, TRACECLK High9ns
3tl(ETM)Pulse Duration, TRACECLK Low9ns
4tr(ETM)Clock and data rise time3.3ns
5tf(ETM)Clock and data fall time3.3ns
6td(ETMTRACECLKH-ETMDATAV)Delay time, ETM trace clock high to ETM data valid17ns
7td(ETMTRACECLKl-ETMDATAV)Delay time, ETM trace clock low to ETM data valid17ns

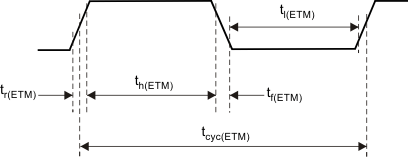

GUID-791CEEB4-DB52-41D7-923C-A8B747224E37-low.gifFigure 6-20 ETMTRACECLKOUT Timing
GUID-4F178670-7731-40C3-8639-F8651F5D7EF1-low.gifFigure 6-21 ETMDATA Timing
