8.2.5 Design 5: 15-V, 150-mA, 600-kHz COT Converter

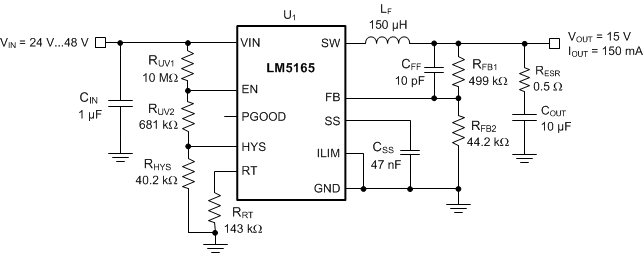

The schematic diagram of a 15-V, 150-mA COT converter is given in Figure 8-29.

GUID-146C3B10-8229-4408-955A-ED5CD9D4E256-low.gifFigure 8-29 Schematic for Design 5 With VIN(nom) = 36 V, VOUT = 15 V, IOUT(max) = 150 mA, FSW(nom) = 600 kHz
