3.2.2.5 Isolation Error at ¾ HV Battery Voltage

An error condition is created at ¾ HV battery voltage to chassis ground. To understand the behavior of error conditions, measurements were performed at different battery voltages.

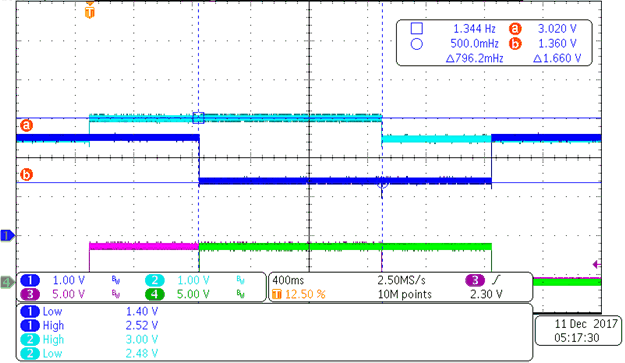

GUID-83C1655E-7535-4C1A-BA5F-DFBB300EC54B-low.gifFigure 3-21 Isolation Error at 300 V for 400-V Battery
Battery voltage = 400 V, isolation error = 300 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS
GUID-DF2FC7B6-9A35-46BE-B1B1-E247C57D0DCC-low.gifFigure 3-22 Isolation Error at 337.5 V for 450-V Battery
Battery voltage = 450 V,
isolation error = 337.5 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS
Table 3-5 Measurements at ¾ HV Battery
HV BATTERY VOLTAGE
(SUPPLIED AND MEASURED)		MEASURED REFERENCE VOLTAGEMEASURED PEAK ISO_POS VOLTAGEMEASURED PEAK ISO_NEG VOLTAGE
100.0062.5052.2942.715
150.0082.5042.1392.767
200.0032.5041.9842.82
250.0042.5041.8282.873
300.0042.5041.6722.925
350.0042.5041.5262.978
400.0062.5041.3623.031
450.0072.5041.2063.084

Figure 3-23 shows the deviations for POS ADC and NEG ADC voltages from normal conditions. POS and NEG are less than expected and constant when relays are closed. This behavior resonates to an isolation error from the high-voltage section to chassis ground.

GUID-DF2BF56A-BE02-4F5F-BED2-52A17F6A8CF8-low.gifFigure 3-23 Behavior for Isolation Error at ¾ HV Battery
