3.8.2 Scene Parameters

When this display tab is selected, the scene parameters are calculated back from the actual configuration that was sent to the device (see Figure 3-11). These values should approximately match the Configure tab values if the Send config to MMwave device button was used to configure the device. In the case of advanced configuration, the values for the different subframes are shown separated by commas for each of the fields.

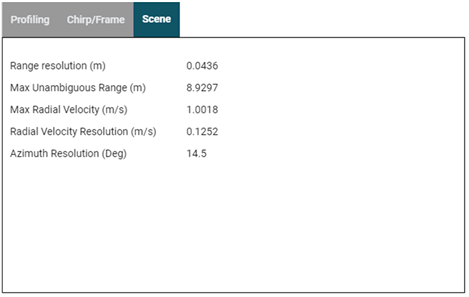

GUID-F867C20B-AB06-4F5B-AE5E-139F8BF908D5-low.gif Figure 3-11 Display Parameters – Scene
