SBAA445 September   2021 AMC1301-Q1



  1.   Trademarks
  2. 1Overview
  3. 2Functional Safety Failure In Time (FIT) Rates
  4. 3Failure Mode Distribution (FMD)
  5. 4Pin Failure Mode Analysis (Pin FMA)

1 Overview

This document contains information for the AMC1301-Q1 (SOIC package) to aid in a functional safety system design. Information provided are:

  • Functional safety failure in time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
  • Component failure modes and their distribution (FMD) based on the primary function of the device
  • Pin failure mode analysis (pin FMA)

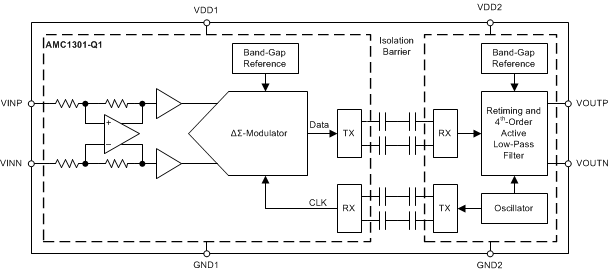

Figure 1-1 shows the device functional block diagram for reference.

GUID-1C3E2625-24A9-4C4D-A5E7-91FDBC7D9BCA-low.gifFigure 1-1 Functional Block Diagram

The AMC1301-Q1 was developed using a quality-managed development process, but was not developed in accordance with the IEC 61508 or ISO 26262 standards.
