Typical Characteristics

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = 85°C, ADC sampling rate = 1.0 GSPS, 50% clock duty cycle, AVDD3V = 3.0 V, AVDD = DVDD = 1.9 V, IOVDD = 1.15 V, and –1-dBFS differential input (unless otherwise noted)
ADS54J60 D001_SBAS706.gif
SNR = 71 dBFS; SFDR = 86 dBc;
IL spur = 94 dBc; non HD2, HD3 spur = 89 dBc
Figure 3. FFT for 10-MHz Input Signal
ADS54J60 D003_SBAS706.gif
SNR = 69.8 dBFS; SFDR = 88 dBc;
IL spur = 86 dBc; non HD2, HD3 spur = 89 dBc
Figure 5. FFT for 170-MHz Input Signal
ADS54J60 D005_SBAS706.gif
SNR = 68 dBFS; SFDR = 77 dBc;
IL spur = 84 dBc; non HD2, HD3 spur = 85 dBc
Figure 7. FFT for 300-MHz Input Signal
ADS54J60 D007_SBAS706.gif
SNR = 67.9 dBFS; SFDR = 74 dBc;
IL spur = 82 dBc; non HD2, HD3 spur = 89 dBc
Figure 9. FFT for 470-MHz Input Signal at –3 dBFS
ADS54J60 D008_SBAS706.gif
fIN1 = 185 MHz, fIN2 = 190 MHz, each tone at –7 dBFS,
IMD3 = 88 dBFS
Figure 11. FFT for Two-Tone Input Signal (–7 dBFS)
ADS54J60 D010_SBAS706.gif
fIN1 = 365 MHz, fIN2 = 370 MHz, each tone at –7 dBFS,
IMD3 = 80 dBFS
Figure 13. FFT for Two-Tone Input Signal (–7 dBFS)
ADS54J60 D012_SBAS706.gif
fIN1 = 465 MHz, fIN2 = 470 MHz, each tone at –7 dBFS,
IMD3 = 75 dBFS
Figure 15. FFT for Two-Tone Input Signal (–7 dBFS)
ADS54J60 D014_SBAS706.gif
fIN1 = 185 MHz, fIN2 = 190 MHz
Figure 17. Intermodulation Distortion vs
Input Tone Amplitude
ADS54J60 D016_SBAS706.gif
fIN1 = 465 MHz, fIN2 = 470 MHz
Figure 19. Intermodulation Distortion vs
Input Tone Amplitude
ADS54J60 D018_SBAS706.gif
Figure 21. IL Spur vs Input Frequency
ADS54J60 D020_SBAS706.gif
fIN = 170 MHz
Figure 23. Signal-to-Noise Ratio vs
AVDD Supply and Temperature
ADS54J60 D022_SBAS706.gif
fIN = 350 MHz
Figure 25. Signal-to-Noise Ratio vs
AVDD Supply and Temperature

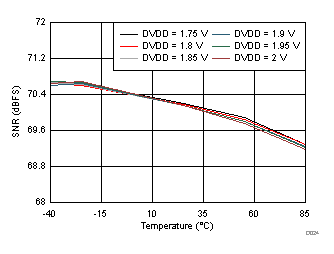

ADS54J60 D024_SBAS706.gif
fIN = 170 MHz
Figure 27. Signal-to-Noise Ratio vs
DVDD Supply and Temperature
ADS54J60 D026_SBAS706.gif
fIN = 350 MHz
Figure 29. Signal-to-Noise Ratio vs
DVDD Supply and Temperature
ADS54J60 D028_SBAS706.gif
fIN = 170 MHz
Figure 31. Signal-to-Noise Ratio vs
AVDD3V Supply and Temperature
ADS54J60 D030_SBAS706.gif
fIN = 350 MHz
Figure 33. Signal-to-Noise Ratio vs
AVDD3V Supply and Temperature
ADS54J60 D053_SBAS706.gif
Figure 35. Signal-to-Noise Ratio vs
Gain and Input Frequency
ADS54J60 D046_SBAS706.gif
Figure 37. Maximum Supported Amplitude vs Frequency
ADS54J60 D033_SBAS706.gif
fIN = 350 MHz
Figure 39. Performance vs Input Amplitude
ADS54J60 D035_SBAS706.gif
fIN = 350 MHz
Figure 41. Performance vs Sampling Clock Amplitude
ADS54J60 D037_SBAS706.gif
fIN = 350 MHz
Figure 43. Performance vs Clock Duty Cycle
ADS54J60 D039_SBAS706.gif
fIN = 170 MHz , AIN = –1 dBFS, SINAD = 67 dBFS,
SFDR = 79 dBc, fPSRR = 5 MHz, APSRR = 25 mVPP,
amplitude of fIN – fPSRR = –74 dBFS,
amplitude of fIN + fPSRR = –76 dBFS
Figure 45. Power-Supply Rejection Ratio FFT for
Test Signals on the AVDD Supply
ADS54J60 D041_SBAS706.gif
fIN = 170 MHz , AIN = –1 dBFS, fCMRR = 5 MHz, ACMRR = 50 mVPP, SINAD = 69.1 dBFS, SFDR = 86 dBc,
amplitude of fIN ± fCMRR= –80 dBFS
Figure 47. Common-Mode Rejection Ratio FFT
ADS54J60 D045_SBAS706.gif
Figure 49. Power vs Temperature
ADS54J60 D048_SBAS706.gif
SNR = 75.2 dBFS, SFDR = 90 dBc
Figure 51. FFT for 170-MHz Input Signal in
Decimate-by-4 Mode
ADS54J60 D050_SBAS706.gif
SNR = 69.6 dBFS, SFDR = 84 dBc
Figure 53. FFT for 450-MHz Input Signal in
Decimate-by-4 Mode
ADS54J60 D052_SBAS706.gif
SNR = 68.3 dBFS, SFDR = 80 dBc
Figure 55. FFT for 350-MHz Input Signal in
Decimate-by-2 Mode
ADS54J60 D002_SBAS706.gif
SNR = 70.3 dBFS; SFDR = 90 dBc;
IL spur = 95 dBc; non HD2, HD3 spur = 94 dBc
Figure 4. FFT for 140-MHz Input Signal
ADS54J60 D004_SBAS706.gif
SNR = 68.9 dBFS; SFDR = 85 dBc;
IL spur = 85 dBc; non HD2, HD3 spur = 86 dBc
Figure 6. FFT for 230-MHz Input Signal
ADS54J60 D006_SBAS706.gif
SNR = 66.7 dBFS; SFDR = 71 dBc;
IL spur = 87 dBc; non HD2, HD3 spur = 78 dBc
Figure 8. FFT for 370-MHz Input Signal
ADS54J60 FFT for 720MHz.gif
SNR = 66.3 dBFS, SINAD = 65.3 dBFS, THD = 70 dBc,
IL spur = 84 dBc, SFDR = 73 dBc, non HD2, HD3 spur = 90 dBFS
Figure 10. FFT for 720-MHz Input Signal at –6 dBFS
ADS54J60 D009_SBAS706.gif
fIN1 = 185 MHz, fIN2 = 190 MHz, each tone at –36 dBFS,
IMD3 = 106 dBFS
Figure 12. FFT for Two-Tone Input Signal (–36 dBFS)
ADS54J60 D011_SBAS706.gif
fIN1 = 365 MHz, fIN2 = 370 MHz, each tone at –36 dBFS,
IMD3 = 105 dBFS
Figure 14. FFT for Two-Tone Input Signal (–36 dBFS)
ADS54J60 D013_SBAS706.gif
fIN1 = 465 MHz, fIN2 = 470 MHz, each tone at –36 dBFS,
IMD3 = 106 dBFS
Figure 16. FFT for Two-Tone Input Signal (–36 dBFS)
ADS54J60 D015_SBAS706.gif
fIN1 = 365 MHz, fIN2 = 370 MHz
Figure 18. Intermodulation Distortion vs
Input Tone Amplitude
ADS54J60 D043_SBAS706.gif
Figure 20. Spurious-Free Dynamic Range vs
Input Frequency
ADS54J60 D042_SBAS706.gif
Figure 22. Signal-to-Noise Ratio vs Input Frequency
ADS54J60 D021_SBAS706.gif
fIN = 170 MHz
Figure 24. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature
ADS54J60 D023_SBAS706.gif
fIN = 350 MHz
Figure 26. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature
ADS54J60 D025_SBAS706.gif
fIN = 170 MHz
Figure 28. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature
ADS54J60 D027_SBAS706.gif
fIN = 350 MHz
Figure 30. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature
ADS54J60 D029_SBAS706.gif
fIN = 170 MHz
Figure 32. Spurious-Free Dynamic Range vs
AVDD3V Supply and Temperature
ADS54J60 D031_SBAS706.gif
fIN = 350 MHz
Figure 34. Spurious-Free Dynamic Range vs
AVDD3V Supply and Temperature
ADS54J60 D054_SBAS706.gif
Figure 36. Spurious-Free Dynamic Range vs
Gain and Input Frequency

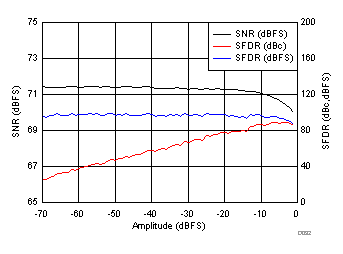

ADS54J60 D032_SBAS706.gif
fIN = 170 MHz
Figure 38. Performance vs Input Amplitude

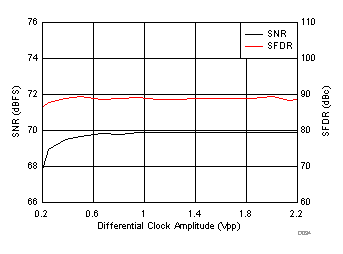

ADS54J60 D034_SBAS706.gif
fIN = 170 MHz
Figure 40. Performance vs Sampling Clock Amplitude
ADS54J60 D036_SBAS706.gif
fIN = 170 MHz
Figure 42. Performance vs Clock Duty Cycle
ADS54J60 D038_SBAS706.gif
fIN = 170 MHz
Figure 44. Power-Supply Rejection Ratio vs
Test Signal Frequency
ADS54J60 D040_SBAS706.gif
fIN = 170 MHz
Figure 46. Common-Mode Rejection Ratio vs
Test Signal Frequency
ADS54J60 D044_SBAS706.gif
Figure 48. Power vs Sampling Speed
ADS54J60 D047_SBAS706.gif
SNR = 76.4 dBFS, SFDR = 99 dBc
Figure 50. FFT for 60-MHz Input Signal in
Decimate-by-4 Mode
ADS54J60 D049_SBAS706.gif
SNR = 72.8 dBFS, SFDR = 91 dBc
Figure 52. FFT for 300-MHz Input Signal in
Decimate-by-4 Mode
ADS54J60 D051_SBAS706.gif
SNR = 71.9 dBFS, SFDR = 89 dBc
Figure 54. FFT for 170-MHz Input Signal in
Decimate-by-2 Mode
