9.2.3 Resistive Bridge Measurement

The device offers several features to ease the implementation of ratiometric bridge measurements (such as a PGA with gains up to 128, buffered, and differential reference inputs).

ADS122C04 ai_bridge_example_bas751.gif
1. Connect reference inputs directly to the bridge excitation voltage through Kelvin connections.

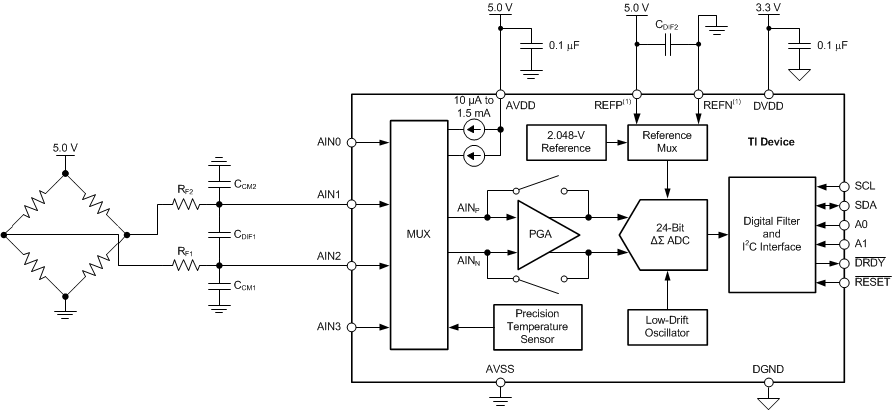

Figure 79. Resistive Bridge Measurement
