6.8 Typical Characteristics

at TA = 25°C, AVDD = 3.3 V, and AVSS = 0 V using internal VREF = 2.048 V (unless otherwise noted)
ADS122C04 D019_sbas752.gif
Normal mode, PGA disabled, VIN = 0 V
Figure 4. Absolute Input current vs Absolute Input Voltage
ADS122C04 D023_sbas752.gif
Turbo mode, PGA disabled, VIN = 0 V
Figure 6. Absolute Input Current vs Absolute Input Voltage
ADS122C04 D027_sbas752.gif

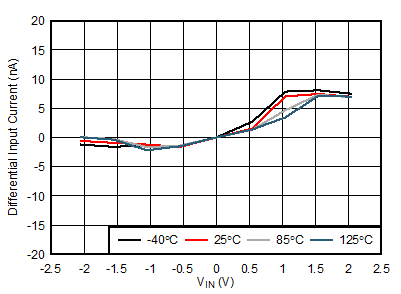

Normal mode, PGA disabled, VCM = 1.65 V
Figure 8. Differential Input Current vs
Differential Input Voltage
ADS122C04 D031_sbas752.gif
Turbo mode, PGA disabled, VCM = 1.65 V
Figure 10. Differential Input Current vs
Differential Input Voltage
ADS122C04 D002_sbas752.gif
PGA enabled, external reference, best fit
Figure 12. INL vs Differential Input Voltage
ADS122C04 D036_sbas752.gif
PGA enabled, gain = 1, 620 samples
Figure 14. Offset Voltage Histogram
ADS122C04 D043_sbas752.gif
PGA enabled
Figure 16. Input Offset Voltage vs Temperature
ADS122C04 D011_sbas752.gif
PGA enabled, gain = 1, 620 samples
Figure 18. Gain Error Histogram
ADS122C04 D041_sbas752.gif
PGA disabled
Figure 20. Gain Error vs Temperature
ADS122C04 D051_sbas752.gif
PGA disabled
Figure 22. DC CMRR vs Temperature
ADS122C04 D062_sbas752.gif

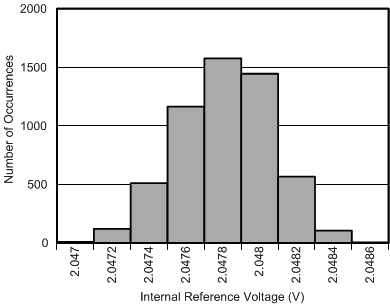

5940 samples, TSSOP package
Figure 24. Internal Reference Voltage Histogram
ADS122C04 D035_sbas752.gif
Figure 26. Internal Reference Voltage vs AVDD
ADS122C04 D053_sbas752.gif
Normal mode
Figure 28. Internal Oscillator Frequency Histogram
ADS122C04 D061_sbas752.gif

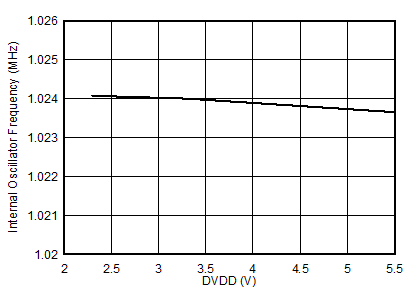

Normal mode
Figure 30. Internal Oscillator Frequency vs DVDD
ADS122C04 D064_sbas752.gif
Figure 32. IDAC Accuracy vs Temperature
ADS122C04 D066_sbas752.gif
Figure 34. Internal Temperature Sensor Accuracy vs Temperature
ADS122C04 D044_sbas752.gif

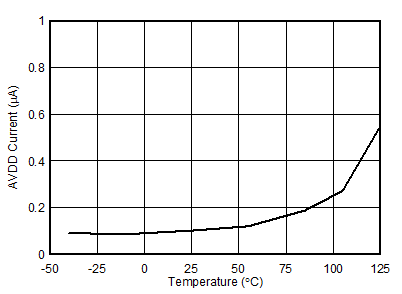

Power-down mode
Figure 36. Analog Supply Current vs Temperature
ADS122C04 D046_sbas752.gif
Normal mode
Figure 38. Analog Supply Current vs AVDD
ADS122C04 D040_sbas752.gif

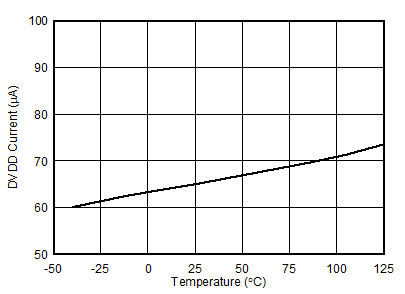

Normal mode
Figure 40. Digital Supply Current vs Temperature
ADS122C04 D021_sbas752.gif

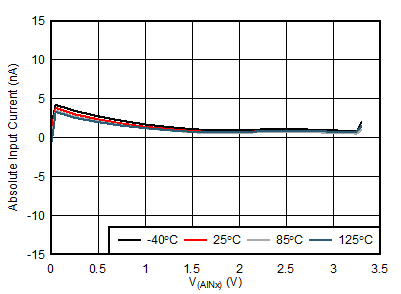

Normal mode, PGA enabled, VIN = 0 V
Figure 5. Absolute Input Current vs Absolute Input Voltage
ADS122C04 D025_sbas752.gif
Turbo mode, PGA enabled, VIN = 0 V
Figure 7. Absolute Input Current vs Absolute Input Voltage
ADS122C04 D029_sbas752.gif
Normal mode, PGA enabled, VCM = 1.65 V
Figure 9. Differential Input Current vs
Differential Input Voltage
ADS122C04 D033_sbas752.gif

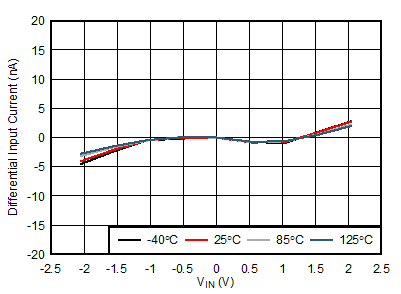

Turbo mode, PGA enabled, VCM = 1.65 V
Figure 11. Differential Input Current vs
Differential Input Voltage
ADS122C04 D003_sbas752.gif
PGA enabled, internal reference, best fit
Figure 13. INL vs Differential Input Voltage
ADS122C04 D001_sbas752.gif
PGA disabled
Figure 15. Input Offset Voltage vs Temperature
ADS122C04 D008_sbas752.gif
PGA disabled, gain = 1, 620 samples
Figure 17. Gain Error Histogram
ADS122C04 D018_sbas752.gif
PGA enabled, gain = 128, 620 samples
Figure 19. Gain Error Histogram
ADS122C04 D042_sbas752.gif
PGA enabled
Figure 21. Gain Error vs Temperature
ADS122C04 D052_sbas752.gif
PGA enabled
Figure 23. DC CMRR vs Temperature
ADS122C04 D063_sbas752.gif
Figure 25. Internal Reference Voltage vs Temperature
ADS122C04 D059_sbas752.gif
Figure 27. External Reference Input Current vs Temperature
ADS122C04 D060_sbas752.gif
Normal mode
Figure 29. Internal Oscillator Frequency vs Temperature
ADS122C04 C006_bas501.png
Figure 31. IDAC Accuracy vs Compliance Voltage
ADS122C04 D065_sbas752.gif
Figure 33. IDAC Matching vs Temperature
ADS122C04 vol_vs_iol_bas751.gif
DVDD = 3.3 V
Figure 35. Digital Pin Output Voltage vs Sinking Current
ADS122C04 D045_sbas752.gif

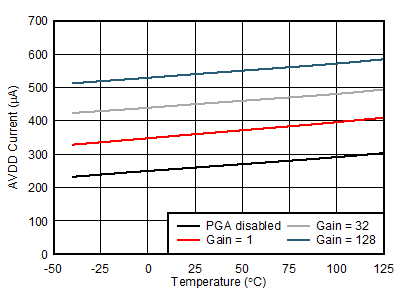

Normal mode
Figure 37. Analog Supply Current vs Temperature
ADS122C04 D039_sbas752.gif
Power-down mode
Figure 39. Digital Supply Current vs Temperature
ADS122C04 D038_sbas752.gif
Normal mode
Figure 41. Digital Supply Current vs DVDD
