7.8 Typical Characteristics

at TA = 25°C, HV_AVDD = 15 V, HV_AVSS = –15 V, AVDD = 5 V, DVDD = 3.3 V, VREF = 2.5 V, fCLK = 7.3728 MHz, data rate = 20 SPS, and gain = 1 (unless otherwise noted)
ADS125H02 D042_SBAS790.gif
V(AINx) = 0 V
Figure 6. Absolute Analog Input Current vs Temperature
ADS125H02 D018_SBAS790.gif
Gain = 0.1875, data rate = 1200 SPS, sinc1 filter, calibrated offset,
en = 13.6 µVRMS
Figure 8. Noise Histogram
ADS125H02 D020_SBAS790.gif
Gain = 32, data rate = 20 SPS, FIR filter, calibrated offset,
en = 0.076 µVRMS
Figure 10. Noise Histogram
ADS125H02 D025_SBAS790.gif
Gain = 4 to 128, data rate = 20 SPS
Figure 12. Noise vs Temperature
ADS125H02 D016_SBAS790.gif
Gain = 1
Figure 14. Noise vs Reference Voltage
ADS125H02 D026_SBAS790.gif
Figure 16. Nonlinearity vs Input Signal
ADS125H02 D023_SBAS790.gif
Figure 18. Integral Nonlinearity Distribution
ADS125H02 D022_SBAS790.gif
Figure 20. Integral Nonlinearity vs Temperature
ADS125H02 D010_SBAS790.gif
Input range limited to: ±4 V / Gain when VREF > 4 V
Figure 22. Integral Nonlinearity vs Reference Voltage
ADS125H02 D036_SBAS790.gif
Gain = 1
Figure 24. Offset Voltage Drift Distribution
ADS125H02 D039_SBAS790.gif
Auto-zero mode
Figure 26. Offset Voltage Drift Distribution
ADS125H02 D053_SBAS790.gif
32 units, gain = 32, after calibration
Figure 28. Offset Voltage Long-Term Drift
ADS125H02 D014_SBAS790.gif
Gain = 4 to 128, after calibration
Figure 30. Offset Voltage vs Reference Voltage
ADS125H02 D038_SBAS790.gif
Figure 32. Gain Drift Distribution
ADS125H02 D029_SBAS790.gif
Gain = 4 to 128
Figure 34. Gain Error vs Temperature
ADS125H02 D051_SBAS790.gif
32 units, gain = 32, after calibration
Figure 36. Gain Long-Term Drift
ADS125H02 D012_SBAS790.gif
Measurement input range limited to: ±4 V / Gain when VREF > 4 V
Figure 38. Gain Error vs Reference Voltage
ADS125H02 D006_SBAS790.gif
Figure 40. Internal Reference Voltage vs Temperature
ADS125H02 D024_SBAS760.gif
Figure 42. Reference Input Current vs Reference Voltage
ADS125H02 D041_SBAS790.gif
TA = 25°C
Figure 44. Temperature Sensor Reading Distribution
ADS125H02 D023_SBAS760.gif
IDAC = 250 µA
Figure 46. IDAC Match Error vs IDAC Voltage
ADS125H02 D049_SBAS790.gif
32 units, normalized data
Figure 48. Oscillator Frequency Long-Term Drift
ADS125H02 D032_SBAS790.gif
AVDD and DVDD
Figure 50. PSRR vs Frequency
ADS125H02 D043_SBAS790.gif
VIN = 2.5 V
Figure 7. Differential Analog Input Current vs Temperature
ADS125H02 D019_SBAS790.gif
Gain = 1, data rate = 40000 SPS, calibrated offset,
en = 37 µVRMS
Figure 9. Noise Histogram
ADS125H02 D024_SBAS790.gif
Gain = 0.125 to 2, data rate = 20 SPS
Figure 11. Noise vs Temperature
ADS125H02 D015_SBAS790.gif
Gain = 0.125
Figure 13. Noise vs Reference Voltage
ADS125H02 D017_SBAS790.gif
Gain = 16
Figure 15. Noise vs Reference Voltage
ADS125H02 D027_SBAS790.gif
Figure 17. Nonlinearity vs Input Signal
ADS125H02 D021_SBAS790.gif
Figure 19. Integral Nonlinearity vs Temperature
ADS125H02 D009_SBAS790.gif
Input range limited to: ±4 V / Gain when VREF > 4 V
Figure 21. Integral Nonlinearity vs Reference Voltage
ADS125H02 D035_SBAS790.gif
Gain = 0.125
Figure 23. Offset Voltage Drift Distribution
ADS125H02 D037_SBAS790.gif
Gain = 32
Figure 25. Offset Voltage Drift Distribution
ADS125H02 D052_SBAS790.gif
32 units, gain = 0.1875, after calibration
Figure 27. Offset Voltage Long-Term Drift
ADS125H02 D013_SBAS790.gif
Gain = 0.125 to 2, after calibration
Figure 29. Offset Voltage vs Reference Voltage
ADS125H02 D040_SBAS790.gif
Figure 31. Gain Error Distribution
ADS125H02 D028_SBAS790.gif
Gain = 0.125 to 2
Figure 33. Gain Error vs Temperature
ADS125H02 D050_SBAS790.gif
32 units, gain = 0.1875, after calibration
Figure 35. Gain Long-Term Drift
ADS125H02 D011_SBAS790.gif
Measurement input range limited to: ±4 V / Gain when VREF > 4 V
Figure 37. Gain Error vs Reference Voltage

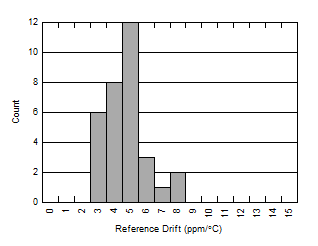

ADS125H02 D034_SBAS790.gif
TA = –40°C to +125°C
Figure 39. Internal Reference Voltage Drift Distribution
ADS125H02 D048_SBAS790.gif
32 units, normalized data
Figure 41. Internal Reference Voltage Long-Term Drift
ADS125H02 D030_SBAS790.gif
Figure 43. Common-Mode Rejection Ratio vs Frequency
ADS125H02 D019_SBAS760.gif
IDAC = 250 µA
Figure 45. IDAC Current vs IDAC Voltage
ADS125H02 D033_SBAS790.gif
Figure 47. Oscillator Frequency Error vs Temperature
ADS125H02 D031_SBAS790.gif
HV_AVDD and HV_AVSS
Figure 49. PSRR vs Frequency
ADS125H02 D008_SBAS790.gif
All gains
Figure 51. Operating Current vs Temperature
