7.1 Absolute Maximum Ratings(1)

MINMAXUNIT
Power-supply voltage AVDD to AVSS –0.3 5.5 V
AVSS to DGND –2.8 0.3
DVDD to DGND –0.3 3.9
IOVDD to DGND –0.3 5.5
Analog input voltage AINx, GPIOx, REFPx, REFNx, REFCOM AVSS – 0.3 AVDD + 0.3 V
Digital input voltage CS, SCLK, DIN, DOUT/DRDY, DRDY,
START, RESET, CLK		 DGND – 0.3 IOVDD + 0.3 V
Input current Continuous, AVSS-SW, REFN0, REFOUT –100 100 mA
Continuous, all other pins except power-supply pins –10 10
Temperature Junction, TJ 150 °C
Storage, Tstg –60 150
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
ADS114S06 ADS114S08 tim_req_bas683.gif

NOTE:

Single-byte communication is shown. Actual communication can be multiple bytes.

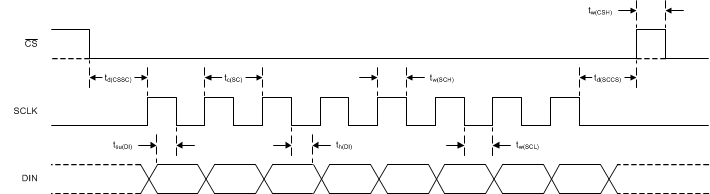

Figure 1. Serial Interface Timing Requirements
ADS114S06 ADS114S08 swi_char_bas683.gif

NOTE:

Single-byte communication is shown. Actual communication can be multiple bytes.
Figure 2. Serial Interface Switching Characteristics
ADS114S06 ADS114S08 ai_reset_timing_sbas660.gifFigure 3. RESET Pin and RESET Command Timing Requirements
ADS114S06 ADS114S08 ai_start_pin_timing_sbas660.gifFigure 4. START/SYNC Pin Timing Requirements

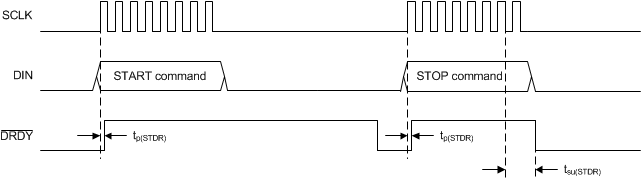

ADS114S06 ADS114S08 ai_start_command_timing_sbas660.gifFigure 5. START Command Timing Requirements
ADS114S06 ADS114S08 ai_rd_data_drct_tim_sbas815.gifFigure 6. Read Data Direct (Without an RDATA Command) Timing Requirements
ADS114S06 ADS114S08 ai_gpio_timing_sbas660.gifFigure 7. GPIO Switching Characteristics
