7.3.12.1 Enhanced-SPI Interface

The device features an enhanced-SPI interface that allows the host controller to operate at slower SCLK speeds and still achieve full throughput. As described in Table 7-7, the host controller can use any of the four SPI-compatible protocols (SPI-00, SPI-01, SPI-10, or SPI-11) to access the device.

Table 7-7 SPI Protocols for Configuring the Device
PROTOCOLSCLK POLARITY
(At the CS Falling Edge)		SCLK PHASE
(Capture Edge)		CPOL_CPHA[1:0]DIAGRAM
SPI-00LowRising00bFigure 7-8
SPI-01LowFalling01bFigure 7-9
SPI-10HighFalling10bFigure 7-8
SPI-11HighRising11bFigure 7-9

On power-up or after coming out of any asynchronous reset, the device supports the SPI-00 protocol for data read and data write operations. To select a different SPI-compatible protocol, program the CPOL_CPHA[1:0] field. This first write operation must adhere to the SPI-00 protocol. Any subsequent data transfer frames must adhere to the newly-selected protocol.

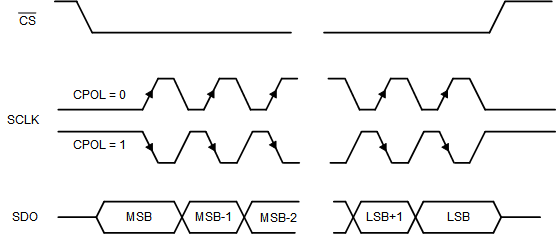

ADS7038 ADS7038H Standard SPI Timing Protocol (CPHA = 0)

Figure 7-8 Standard SPI Timing Protocol
(CPHA = 0)

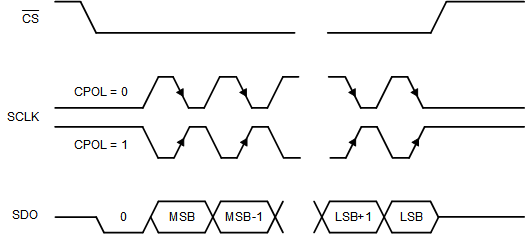

ADS7038 ADS7038H Standard SPI Timing Protocol (CPHA = 1)

Figure 7-9 Standard SPI Timing Protocol
(CPHA = 1)
