7.3.10.2 Triggering Digital Outputs with Alert and ZCD

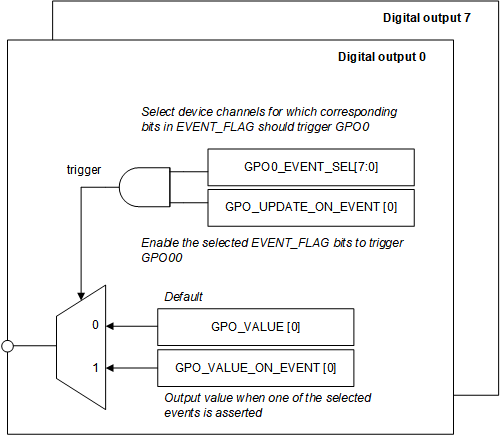

Figure 7-4 shows that digital outputs can be updated in response to alerts from individual channels or synchronous to the zero-crossing-detect signal.

ADS7038 ADS7038H Block Diagram of the Digital Output Logic Figure 7-7 Block Diagram of the Digital Output Logic
