6.9 Typical Characteristics

at TA = 25°C, AVDD = 5 V, DVDD = 1.8 V, and fSAMPLE = 1 MSPS (unless otherwise noted)

ADS7038 ADS7038H DC Input Histogram
Standard deviation = 0.49 LSB
Figure 6-3 DC Input Histogram

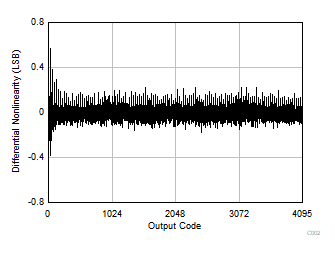

ADS7038 ADS7038H Typical DNL
Typical DNL = ±0.5 LSB
Figure 6-5 Typical DNL

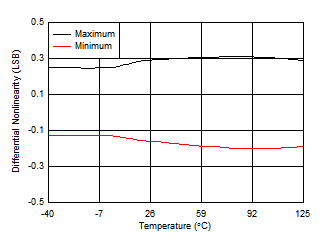

ADS7038 ADS7038H DNL vs Temperature

Figure 6-7 DNL vs Temperature
ADS7038 ADS7038H DNL vs AVDD

Figure 6-9 DNL vs AVDD
ADS7038 ADS7038H Offset Error vs Temperature

Figure 6-11 Offset Error vs Temperature
ADS7038 ADS7038H Offset Error vs AVDD

Figure 6-13 Offset Error vs AVDD
ADS7038 ADS7038H Noise Performance vs Temperature

Figure 6-15 Noise Performance vs Temperature

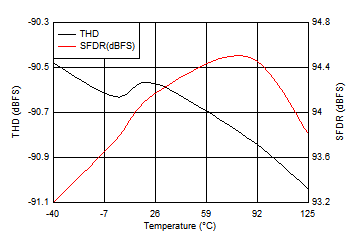

ADS7038 ADS7038H Distortion Performance vs Temperature

Figure 6-17 Distortion Performance vs Temperature

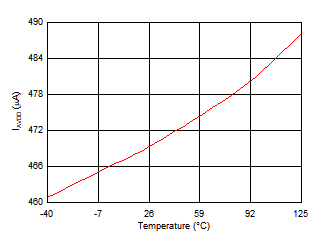

ADS7038 ADS7038H Analog Supply Current vs Temperature

Figure 6-19 Analog Supply Current vs Temperature

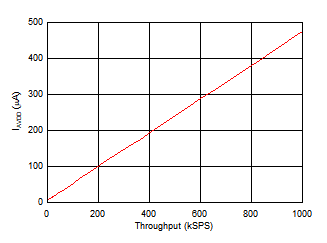

ADS7038 ADS7038H Analog Supply Current vs Throughput
Figure 6-21 Analog Supply Current vs Throughput
ADS7038 ADS7038H Analog Supply Current vs Comparison Rate (OSC_SEL = 1) in Turbo Comparator Mode

Figure 6-23 Analog Supply Current vs Comparison Rate (OSC_SEL = 1) in Turbo Comparator Mode
ADS7038 ADS7038H Analog Supply Current vs Temperature(OSC_SEL = 1, CLK_DIV = 0) in Turbo Comparator Mode

Figure 6-25 Analog Supply Current vs Temperature
(OSC_SEL = 1, CLK_DIV = 0) in Turbo Comparator Mode
ADS7038 ADS7038H Typical FFT
fIN = 2 kHz, SNR = 73.2 dB, THD = –92.1 dB
Figure 6-4 Typical FFT
ADS7038 ADS7038H Typical INL
Typical INL = ±0.5 LSB
Figure 6-6 Typical INL

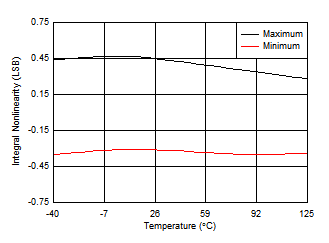

ADS7038 ADS7038H INL vs Temperature

Figure 6-8 INL vs Temperature

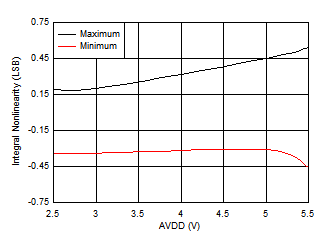

ADS7038 ADS7038H INL vs AVDD

Figure 6-10 INL vs AVDD
ADS7038 ADS7038H Gain Error vs Temperature

Figure 6-12 Gain Error vs Temperature

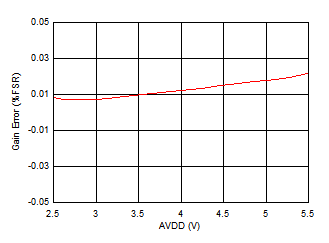

ADS7038 ADS7038H Gain Error vs AVDD

Figure 6-14 Gain Error vs AVDD

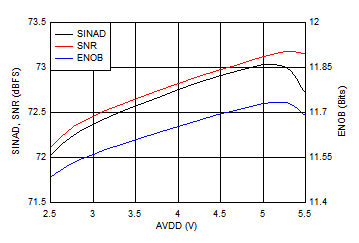

ADS7038 ADS7038H Noise Performance vs AVDD

Figure 6-16 Noise Performance vs AVDD
ADS7038 ADS7038H Distortion Performance vs AVDD

Figure 6-18 Distortion Performance vs AVDD

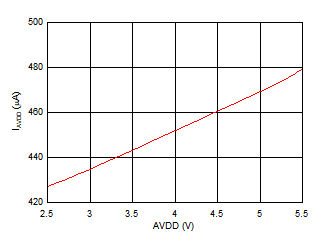

ADS7038 ADS7038H Analog Supply Current vs AVDD

Figure 6-20 Analog Supply Current vs AVDD
ADS7038 ADS7038H Analog Supply Current vs Comparison Rate (OSC_SEL = 0) in Turbo Comparator Mode
Figure 6-22 Analog Supply Current vs Comparison Rate (OSC_SEL = 0) in Turbo Comparator Mode
ADS7038 ADS7038H Analog Supply Current vs Temperature (OSC_SEL = 0, CLK_DIV = 0) in Turbo Comparator Mode

Figure 6-24 Analog Supply Current vs Temperature (OSC_SEL = 0, CLK_DIV = 0) in Turbo Comparator Mode
