7.3.6.7.3.1 Sampling Rate: 14.7 kHz to 16 kHz

Figure 7-49 shows the magnitude response and Figure 7-50 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 14.7 kHz to 16 kHz. Table 7-34 lists the specifications for a decimation filter with a 14.7-kHz to 16-kHz sampling rate.

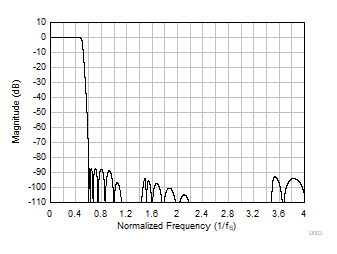

GUID-BA05D579-EB1D-4FF8-B682-EF4A4BA535EB-low.gifFigure 7-49 Ultra-Low-Latency Decimation Filter Magnitude Response

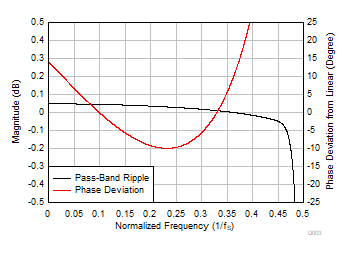

GUID-DA67B122-3BAB-4611-88DF-38924C806E6B-low.gifFigure 7-50 Ultra-Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 7-34 Ultra-Low-Latency Decimation Filter Specifications
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Pass-band ripple Frequency range is 0 to 0.45 × fS –0.05 0.05 dB
Stop-band attenuation Frequency range is 0.6 × fS onwards 87.2 dB
Group delay or latency Frequency range is 0 to 0.325 × fS 4.3 1/fS
Group delay deviation Frequency range is 0 to 0.325 × fS –0.512 0.512 1/fS
Phase deviation Frequency range is 0 to 0.325 × fS –10.0 14.2 Degrees
